5Chapter 1 . Get to Know About Your Router
1. 3. 2. Rear Panel

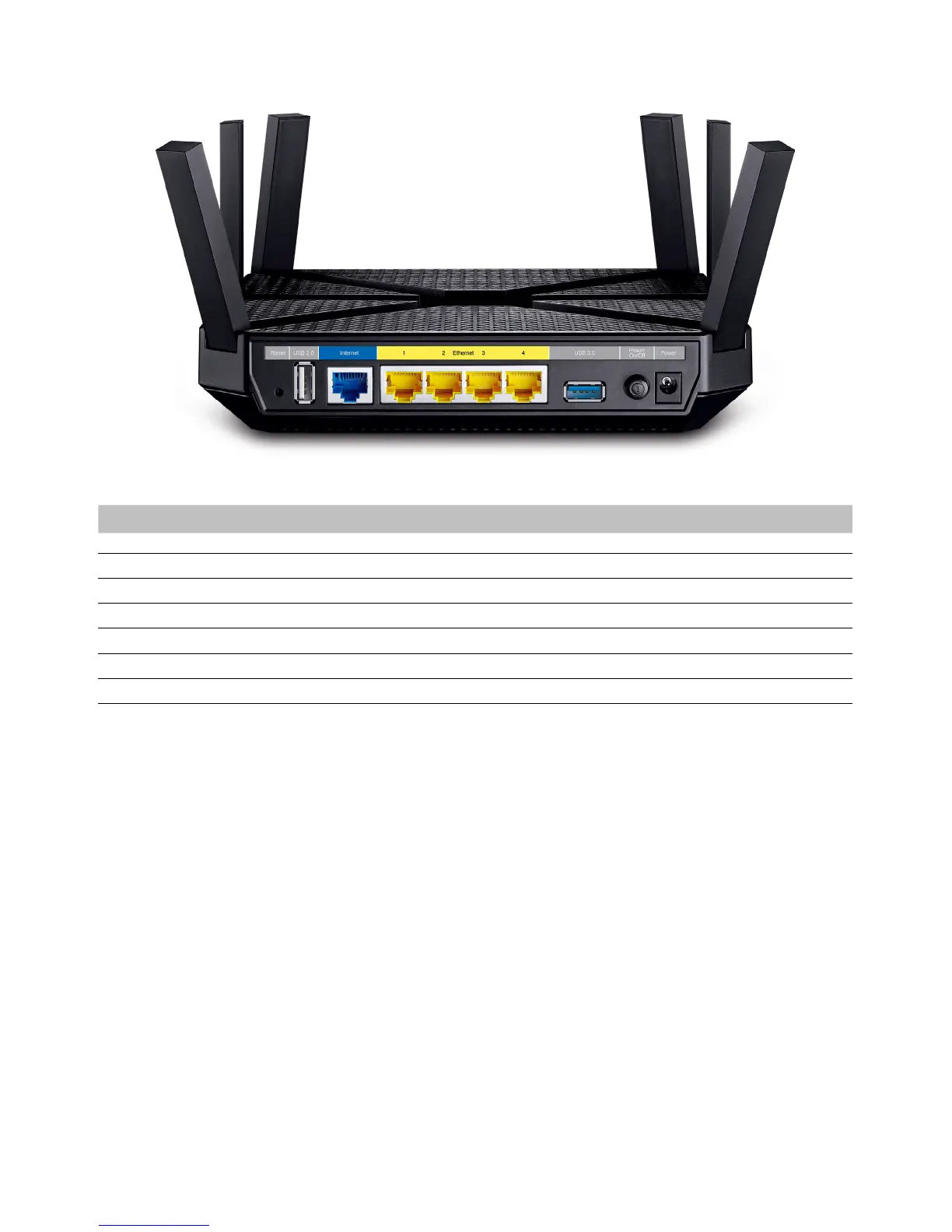

The following parts are located on the rear panel (View from left to right). Refer to the following for detailed instructions.
Item
Description
Reset button Pressing this button for about 7 seconds enables the Reset function.
USB 2.0 port
The USB 2.0 port connects to a USB 2.0 storage device or a USB 2.0 printer.
Internet port
This port is where you will connect the DSL/cable Modem, or Ethernet.
Ethernet (1, 2, 3, 4) ports
These ports (1, 2, 3, 4) connect the router to the local PCs.
USB 3.0 port
The USB 3.0 port connects to a USB 3.0 storage device or a USB 3.0 printer.
Power On/Off button
This button powers on or off the router.
Power port
This port is where you will connect the power socket via the provided power adapter.
