TP-Link Deco X10 User Manual

4

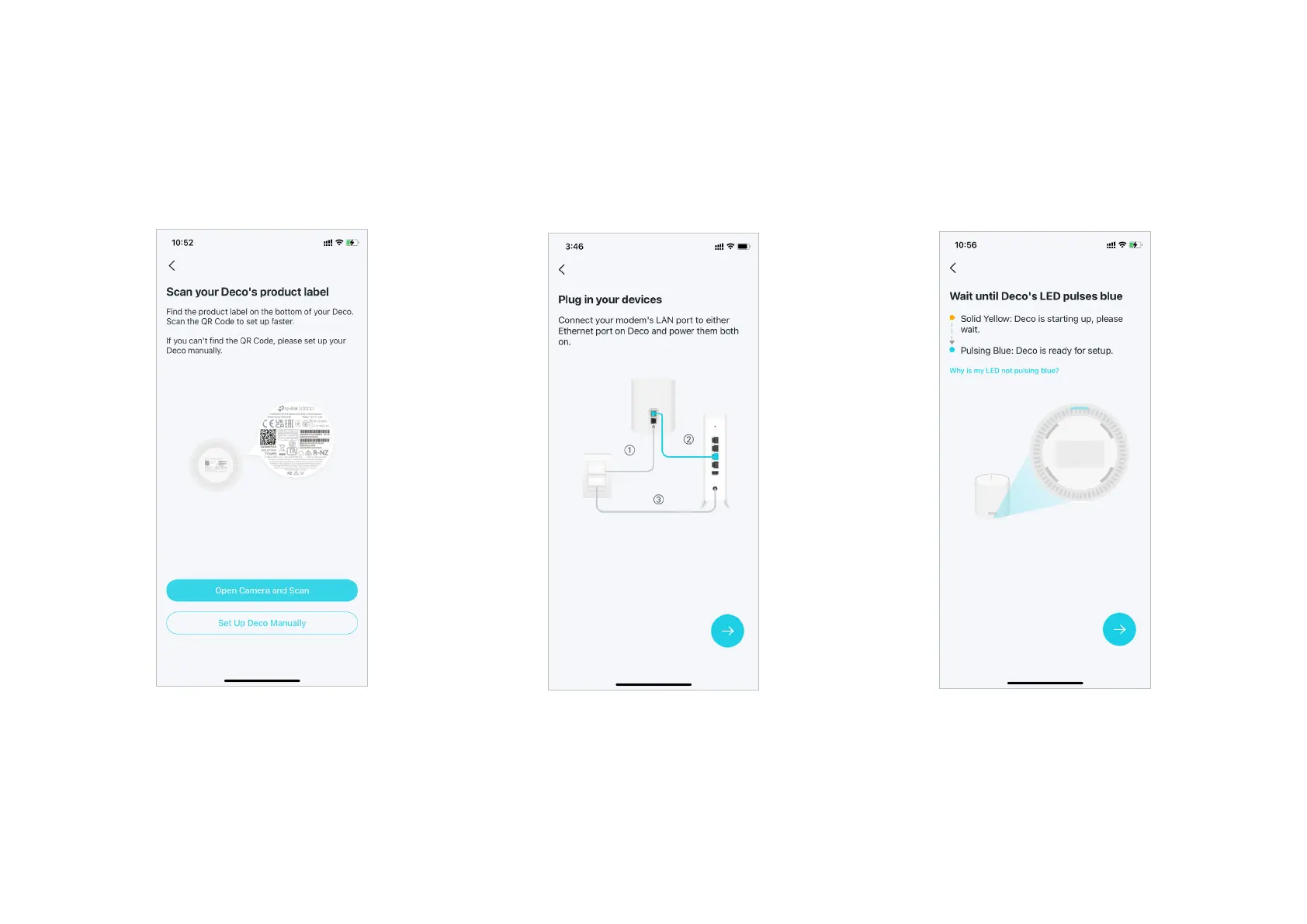

4. Scan your Deco's product label
Scan the QR code on the product label at the
bottom of your Deco for a quicker setup. You
can also set it up manually.
5. Plug in your Deco
Power o your modem. Connect your Deco to
the modem and power them both on.
If you don't have a modem, connect your
Deco directly to the Ethernet outlet.
6. Wait until Deco's LED pulses blue
Wait until your Deco's LED pulses blue, then
your phone/tablet will connect to the Deco's
default Wi-Fi automatically.

TP-Link Deco X10 Specifications

General

Antenna type	Internal
Product type	Mesh router
Reset button	Yes
Product color	White
Maximum coverage	190 m²
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Apps supported	TP-Link Deco
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Security algorithms	WPA, WPA2, WPA3
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
WLAN data transfer rate (max)	1500 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Operating modes	Router Mode, Access Point Mode
Number of guest networks (5 GHz)	1
Ethernet LAN (RJ-45) ports	2

Weight and Dimensions

Width	110 mm
Height	114 mm
