TP-Link HS100 - Smart Plug Panel Layout

1.3 Panel Layout

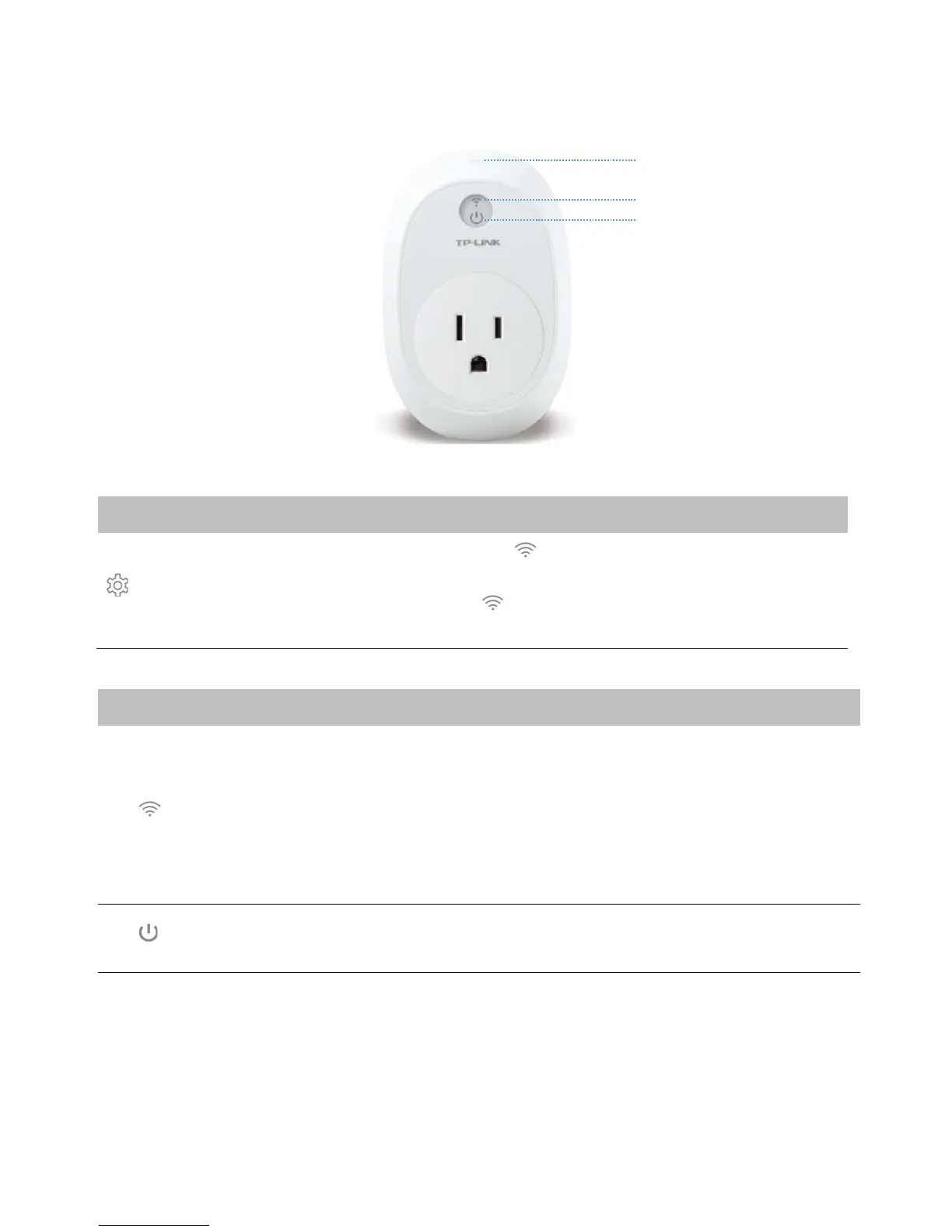

Button Description
(Settings button)
Press this button until the Wi-Fi LED blinks amber and green alternately (about 5
seconds) to initiate the smart-config process.
Press and hold until the Wi-Fi LED blinks amber quickly (about 10 seconds) to reset the
Smart Plug to factory defaults.
LED Status Indication
(Wi-Fi LED)
Blink
Amber and Green: Smart-config mode initiated.
Green: Connecting to the network.
Amber: Factory reset.
On
Green: Connected to the network.
Amber: Rebooting.
Red: No network connection.
(Power LED)
On
The Smart Plug is powered on.
Off
No power.
Settings Button
Wi-Fi LED
Power LED
* Image may differ from actual product
due to different regional power
specifications. Here we take the US
version as an example.
Chapter 1. Introduction 3
