12
Chapter 2
Set Up Internet Connection

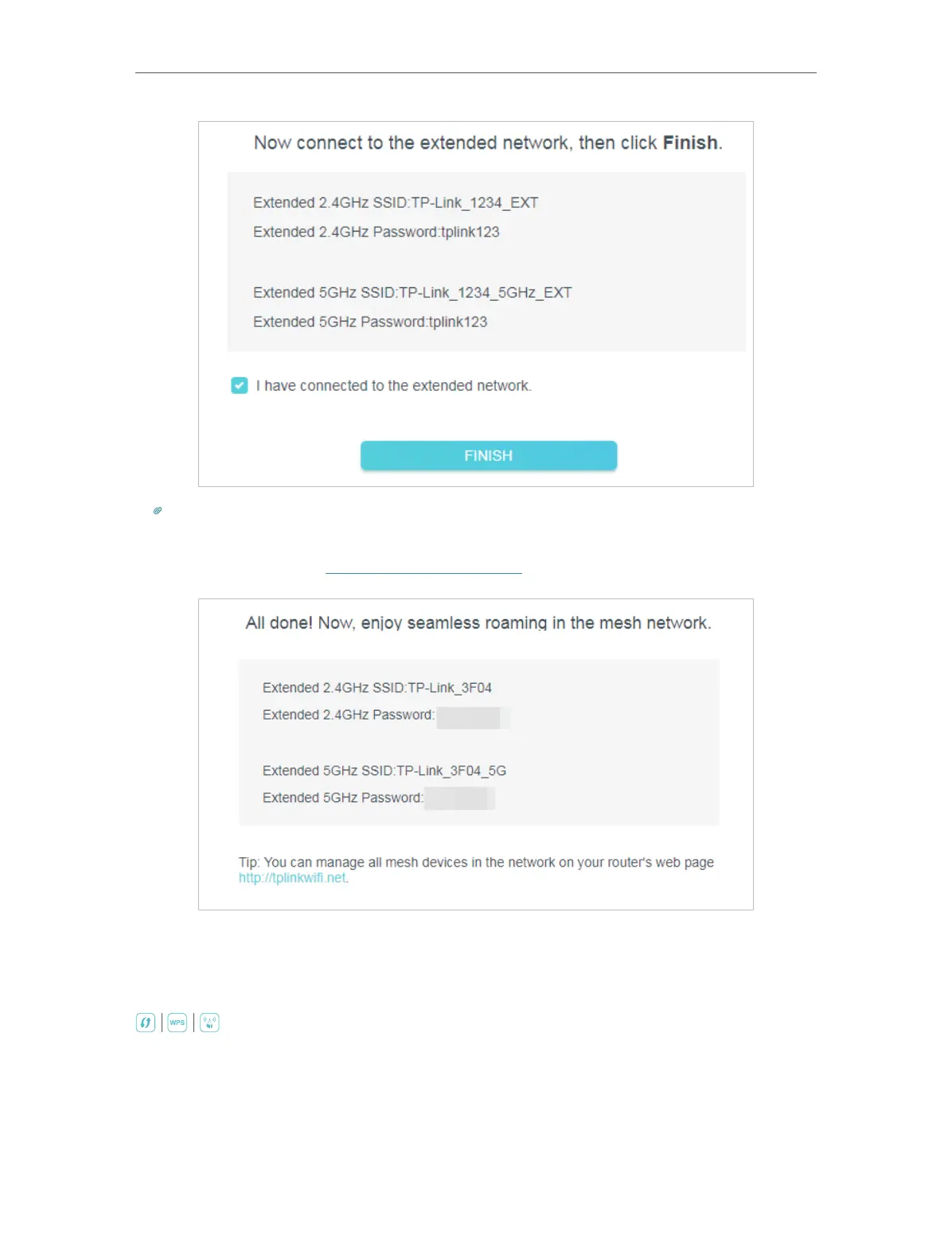

Tip:
If you connect the extender to a TP-Link OneMesh router and a success screen as below appears at the end of the
setup, the extender has successfully joined the router’s OneMesh network and copied the router’s wireless settings.
For more information, refer to OneMesh with Seamless Roaming.
2. 2. 3. Method 3: Via the WPS Button
Use this way if your router has a WPS button. The button might look like one of these:
.
1. Press the WPS button on your host router, and then press the WPS button on the
extender for 1 second within 2 minutes.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TP-Link RE315 and is the answer not in the manual?

TP-Link RE315 Specifications

General IconGeneral
TypeNetwork repeater
WPS push buttonYes
Browser supportedInternet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Ethernet LAN data rates10, 100 Mbit/s
Maximum transfer distance- m
Antenna typeExternal
Antennas quantity2
Transmitting power (CE)2.4 GHz ≤20dBm, 5 GHz ≤30dBm dBm
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Cabling technology10/100Base-T(X)
Security algorithms64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
CertificationCE, RoHS
Product colorWhite
Quantity per pack1 pc(s)
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)9.5 W
Ethernet LAN (RJ-45) ports1
Harmonized System (HS) code85176990
Package typeBox
Package width121.5 mm
Package height156.5 mm
Package weight260 g
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth35 mm
Width89 mm
Height124.1 mm
