TP-Link RE500X User Manual

13
Chapter 2
Set Up Internet Connection

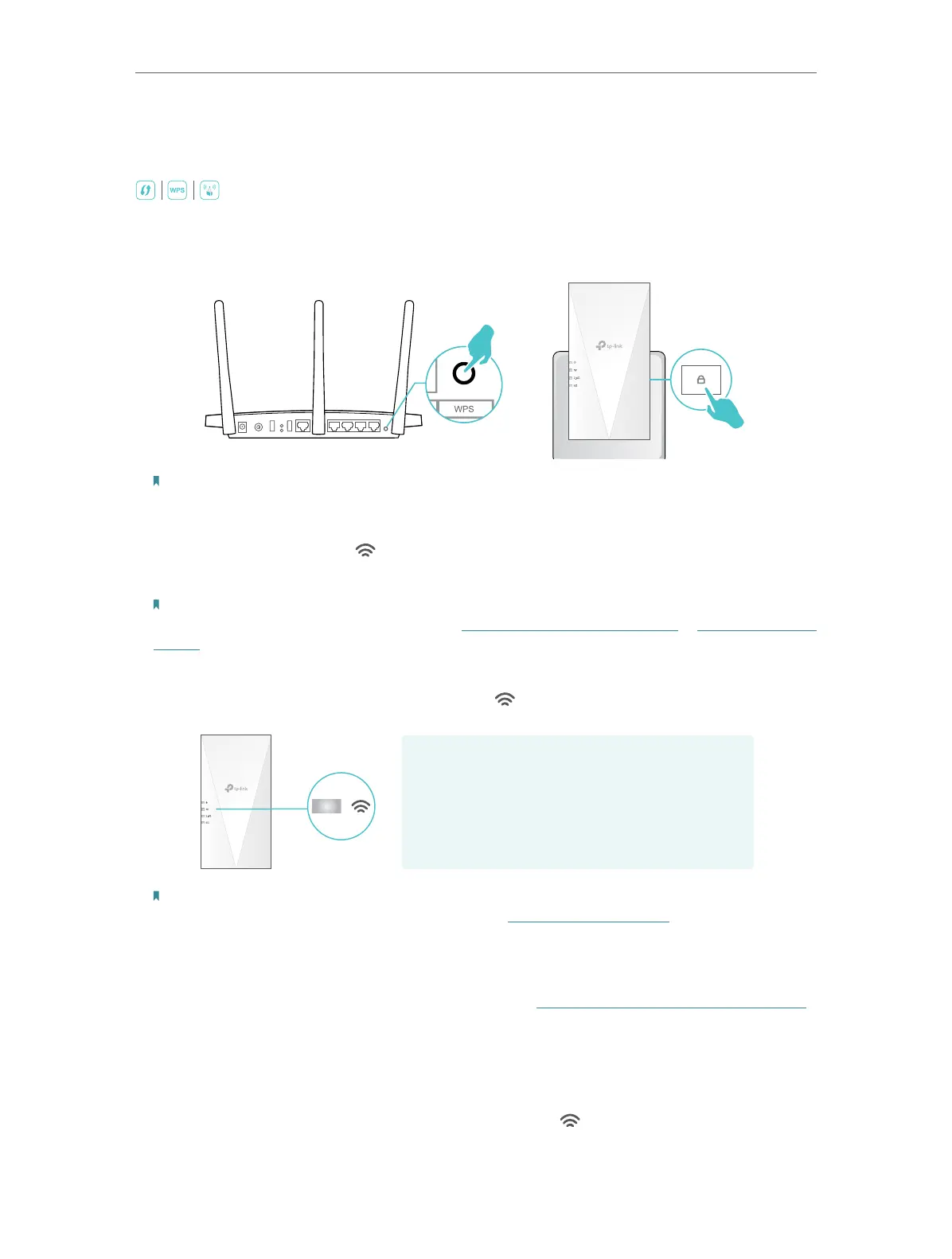

2. 2. 3. Method 3: Via the WPS Button
Use this way if your router has a WPS button. The button might look like one of these:
.
1. Press the WPS button on your host router, and then press the WPS button on the
extender for 1 second within 2 minutes.
Note:
For more information about using WPS button on your host router, please refer to the router manufacturer’s user
guide.
2. Wait until the Signal LED changes from blinking to solid on, which indicates that
the WPS connection is successful.
Note:
If the LED does not turn solid on, try again or refer to Method 1: Via the TP-Link Tether App or Method 2: Via a Web
Browser.
3. If the extender connects to a dual band router, repeat steps 1 and 2 above to connect
to the other band. Wait until the Signal LED
turns solid on, and the setup is done.
Extended Network Names:
Router’s network name with
_EXT at the end
or
Same as your OneMesh router
Passwords:
Same as your router
Solid On
Note:
If you want to customize the extended network name, refer to Configure Wireless Network.
If you cannot find the network names with _EXT in your Wi-Fi network list, this means
that the extender has been connected to a OneMesh router and automatically copied
its wireless settings. For more information, refer to OneMesh with Seamless Roaming.
4. Relocate your extender for optimal Wi-Fi coverage and performance.
1 ) Plug in the extender about halfway between your router and the Wi-Fi dead zone.
The location you choose must be within the range of your router.
2 ) Wait for about 2 minutes until the Signal LED
turns solid blue. If it doesn’t,
relocate the extender closer to the router to achieve better signal quality.

TP-Link RE500X Specifications

General

Type	Network transmitter & receiver
WPS push button	Yes
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Ethernet LAN data rates	1000 Mbit/s
Maximum transfer distance	- m
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Product color	White
Quantity per pack	1 pc(s)
Antenna type	Internal
Antennas quantity	2
Transmitting power (CE)	2.4 GHz ≤20dBm, 5 GHz ≤30dBm dBm
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Cabling technology	10/100/1000Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Sustainability certificates	CE, RoHS
Ethernet LAN (RJ-45) ports	1
Harmonized System (HS) code	85176990
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	10 W
Package type	Box
Package depth	125 mm
Package width	202 mm
Package height	97 mm
Package weight	350 g

Weight and Dimensions

Depth	36 mm
Width	78 mm
Height	149 mm
