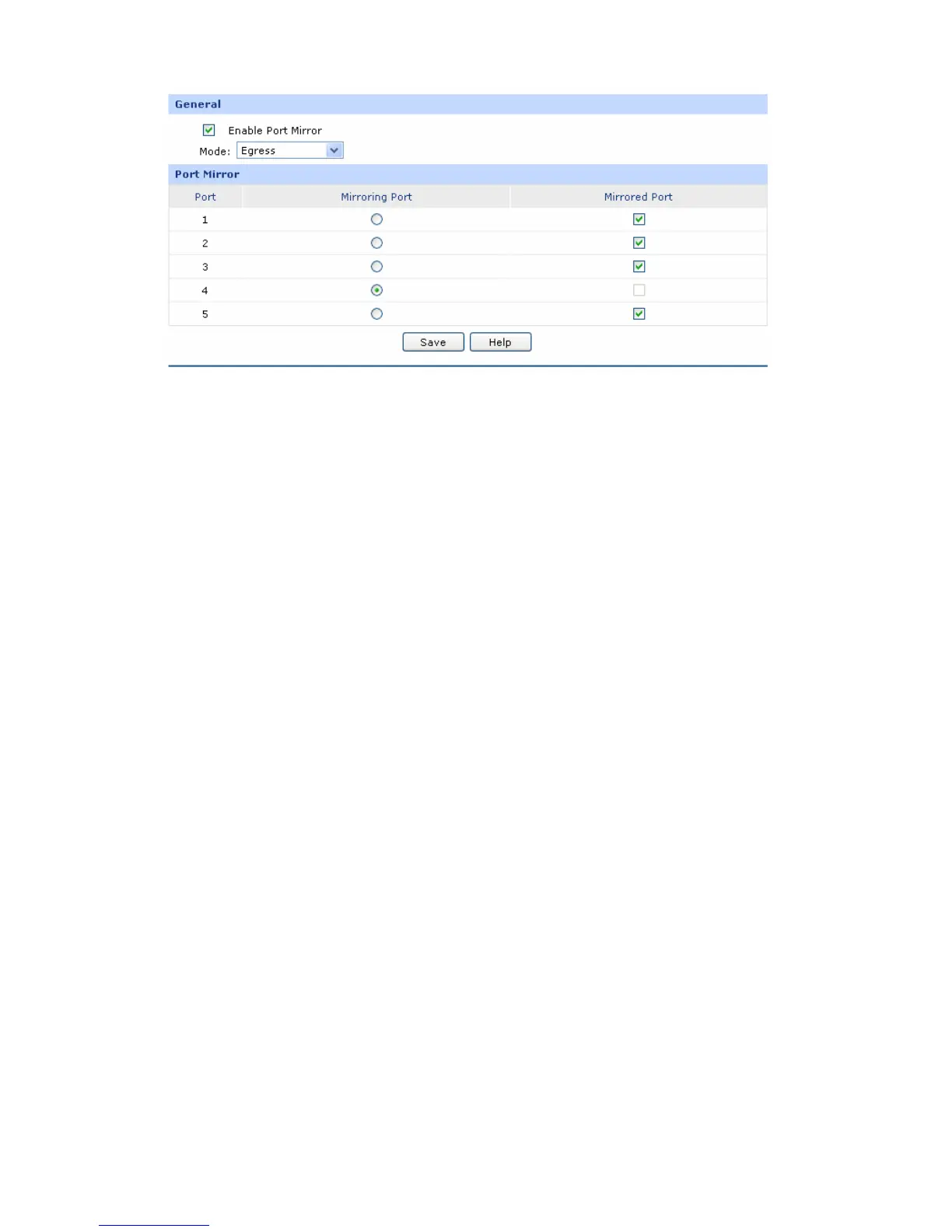

Figure 3-21 Port Mirror
The following items are displayed on this screen:
¾ General
Enable Port Mirror:
Check the box to enable the Port Mirror function. If
unchecked, it will be disabled.
Mode:
Select the mode for the port mirror function. Options
include:
z Ingress: When this mode is selected, only the
incoming packets sent by the mirrored port will be
copied to the mirroring port.
z Egress: When this mode is selected, only the
outgoing packets sent by the mirrored port will be
copied to the mirroring port.
z Ingress&Egress: When this mode is selected, both
the incoming and outgoing packets through the
mirrored port will be copied to the mirroring port.
¾ Port Mirror
Mirroring Port:
Select the Mirroring Port to which the traffic is copied. Only
one port can be selected as the mirroring port.
Mirrored Port:
Select the Mirrored Port from which the traffic is mirrored.
One or multiple ports can be selected as the mirrored ports.
