3.2 Mounting the Chassis in the Rack
The dimension of the TL-MC1400 chassis is designed according
to the standard 19-inch rack-mountable steel case of Electronic
Industries Association.

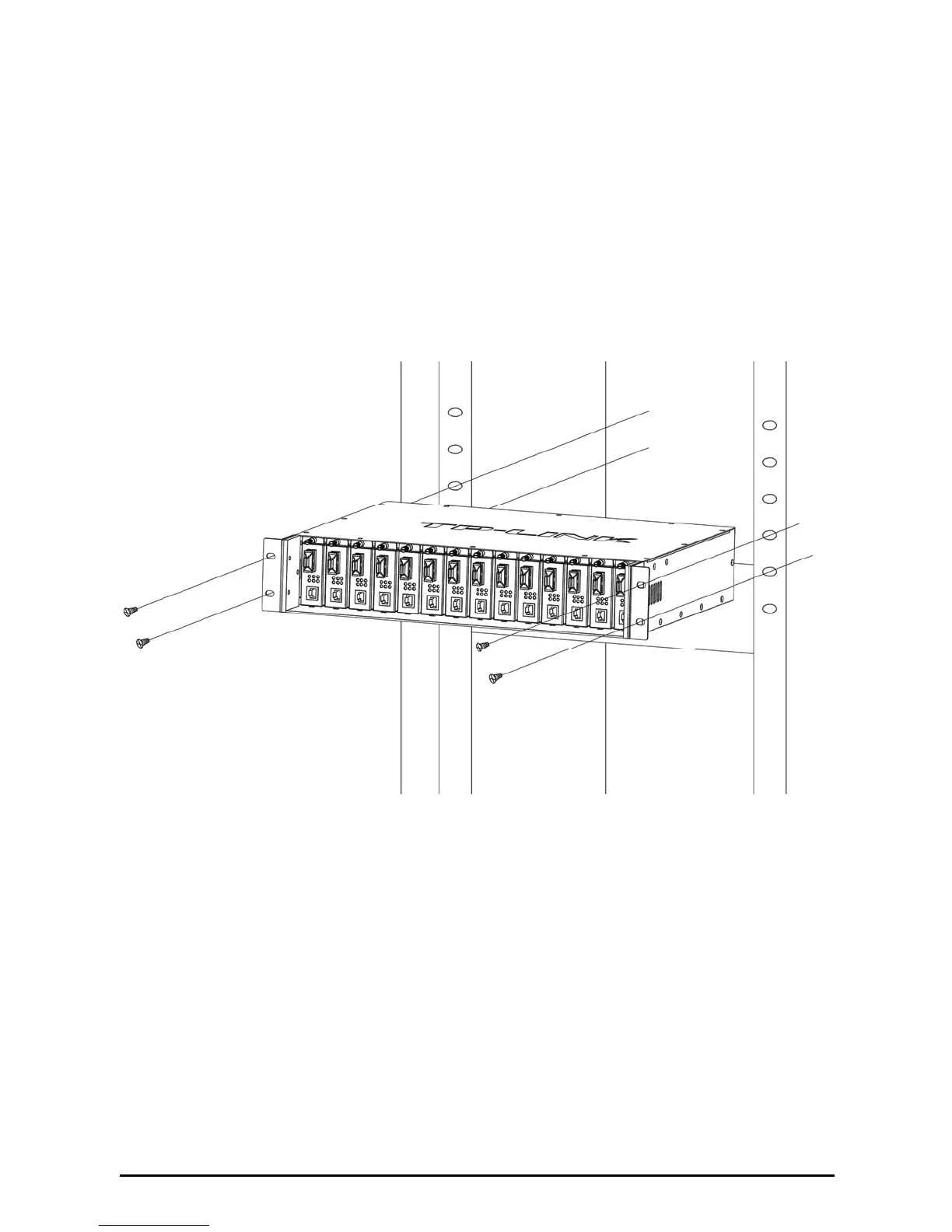

Power off the chassis before mounting it in the rack, and then
fasten it to the rack with screws through the holes of the “L”
brackets on each side.
3.3 Power On
1) Connect the chassis to ground
Before connecting the chassis to the power, please make sure
the Ground Point of the chassis is electrically connected to
ground by wires, as the following figure.
