TL-R480T Enterprise Broadband Router User Giude

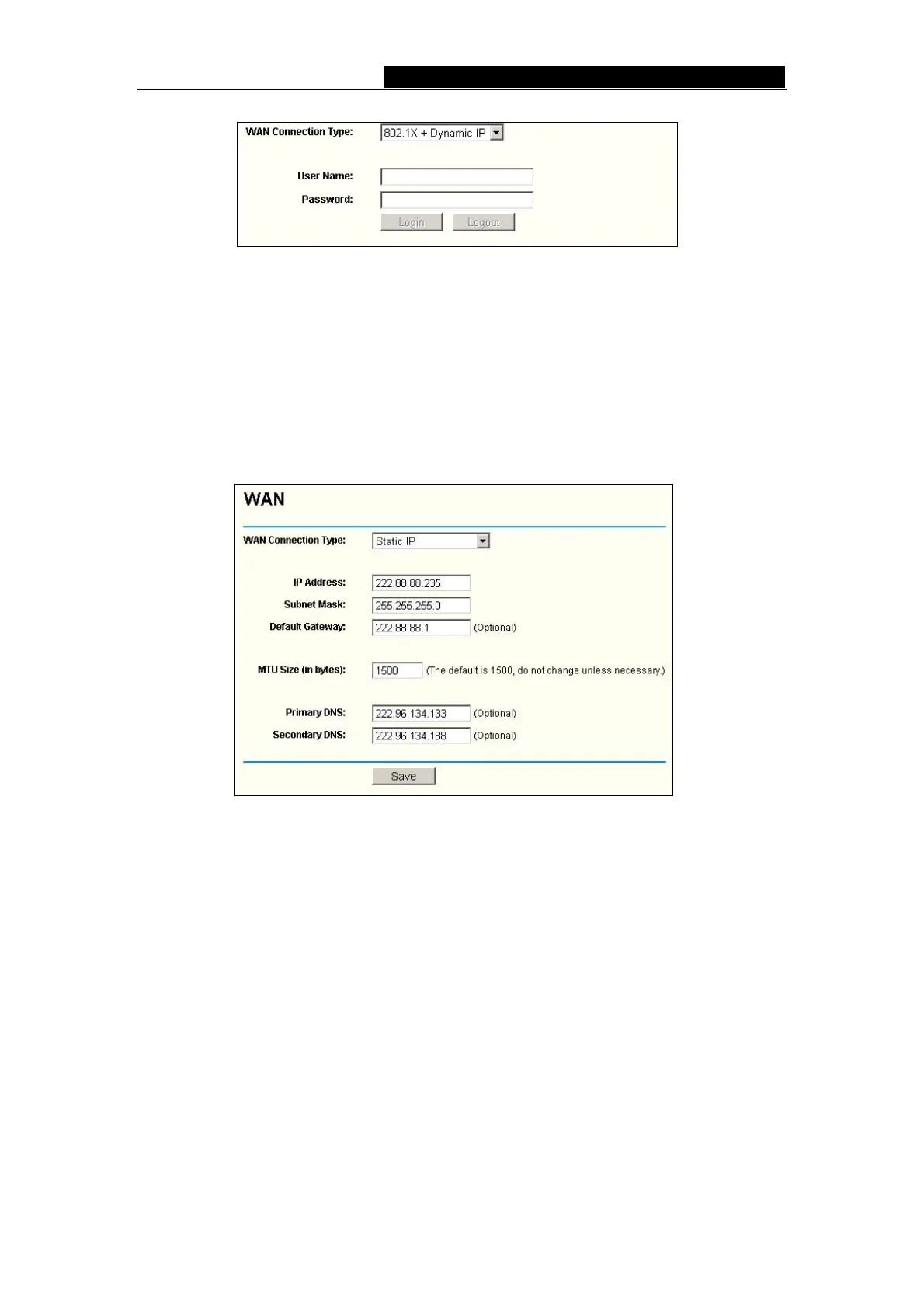

Figure 5-4a WAN - 802.1X + Dynamic IP
 User Name - Enter the user name for 802.1x authentication provided by your ISP
 Password - Enter the password for 802.1x authentication provided by your ISP.
Click the Login button to start 802.1x authentication.
Click the Logout button to end 802.1x authentication.
2. If you choose Static IP, you should have fixed IP parameters specified by your ISP.
The Static IP settings page will appear, shown in figure 5-5:
Figure 5-5 WAN - Static IP
You should type the following parameters into the spaces provided:
 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.
 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your
ISP, usually is 255.255.255.0.
 Default Gateway: (Optional) Enter the gateway IP address in dotted-decimal
notation provided by your ISP.
 MTU Size - The normal MTU (Maximum Transmission Unit) value for most
Ethernet networks is 1500 Bytes. For some ISPs you may need to modify the MTU.
But this is rarely required, and should not be done unless you are sure it is
necessary for your ISP connection.
 Primary DNS - (Optional) Type the DNS address in dotted-decimal notation
provided by your ISP.
 Secondary DNS - (Optional) Type another DNS address in dotted-decimal notation
provided by your ISP if provided.
- 16 -

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
