TP-Link TL-R480T User Manual

TL-R480T Enterprise Broadband Router User Giude

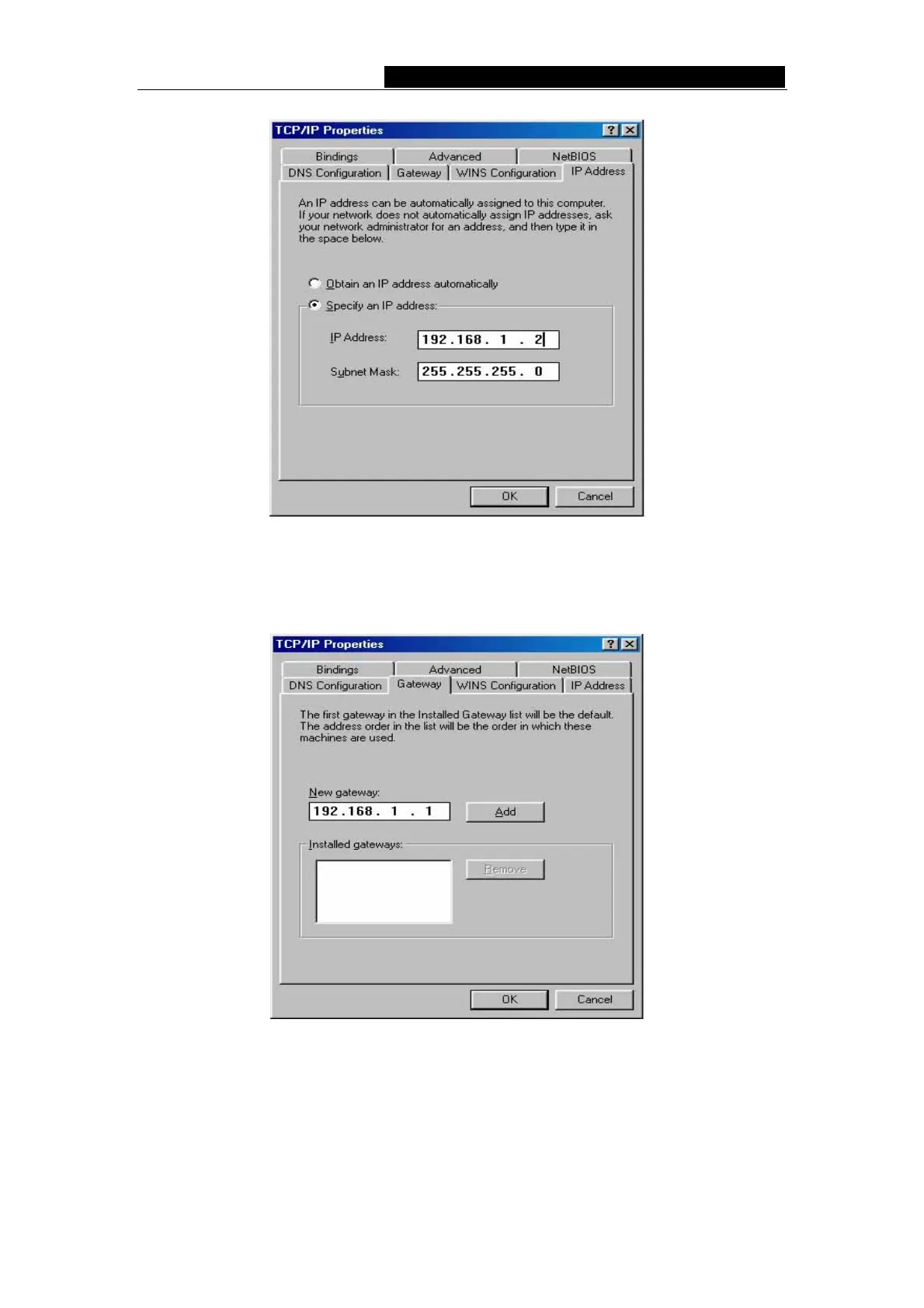

Figure B-7 IP Address tab
b. Type the router’s LAN IP address (the default IP is 192.168.1.1) into the
New gateway field on the Gateway tab, and click on the Add button, as
shown in the figure:
Figure B-8 Gateway tab
c. On the DNS Configuration tab, click Enable DNS radio, and type your
computer name in to the Host field and a Domain (such as szonline.com)
into the Domain field. In the DNS Server Search Order field you can type
the DNS server IP addresses, which has been provided by your ISP, and
click Add button. Shown below:
- 52 -

TP-Link TL-R480T Specifications

General

Input frequency	50/60 Hz
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Dimensions (W x D x H) (imperial)	11.6 x 7.1 x 1.7 \
DHCP client	Yes
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Web-based management	-
RS-232 ports	1
Ethernet LAN (RJ-45) ports	5
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Flash memory	4 MB
Internal memory	64 MB
Product color	Black
Rack capacity	1U
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Dual-band	No

Weight and Dimensions

Depth	180 mm
Width	294 mm
Height	44 mm
