Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on
for about 5 minutes and then turn off.
1.4.2 The Rear Panel

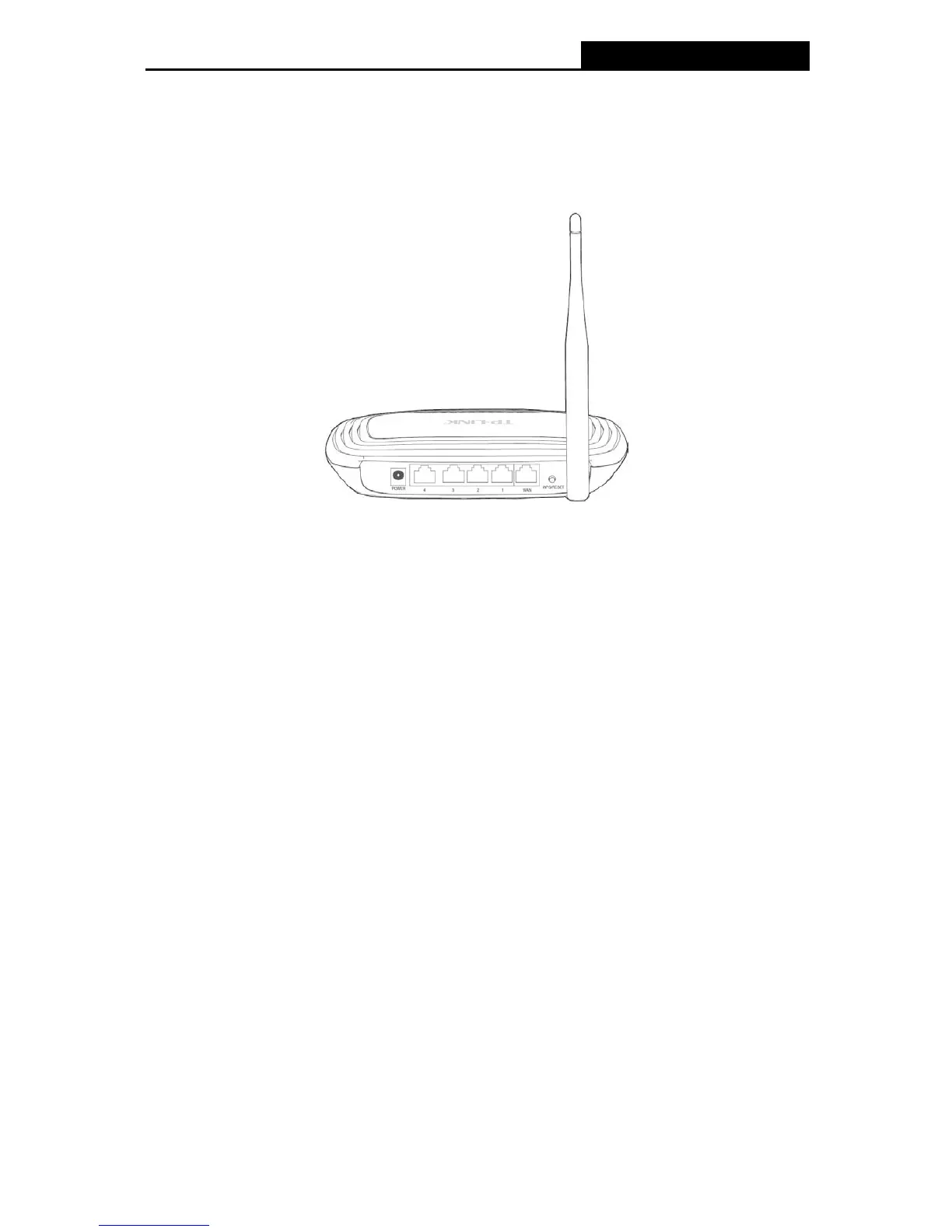

Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this TL-WR740N/TL-WR741ND 150Mbps Wireless N
Router.
4/3/2/1 (LAN): These ports connect the Router to the local PC(s).
WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet.
WPS/RESET:
Pressing this button for less than 5 seconds enables the WPS function. If your client devices,
such as wireless adapters, that support Wi-Fi Protected Setup, then you can press this button
to quickly establish a connection between the router and client devices and automatically
configure wireless security for your wireless network.
Pressing this button for more than 5 seconds enables the Reset function. With the router
powered on, press and hold the WPS/RESET button (approximately 8 seconds) until the
system LED becomes quick-flash from slow-flash. And then release the button and wait the
router to reboot to its factory default settings.
There are two ways to reset to the Router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
Router's Web-based Utility.
2) Use the Factory Default Reset button: Press the WPS/RESET button for more than 5
seconds and then wait for the Router to reboot.
Wireless antenna: To receive and transmit the wireless data.
