TP Toys active fun TP814 User Manual

19
TP Triple Round Wood Multiplay
Stage
17
M8 Hook bolt x4
FA9774
M8
Nylon Insert Nut
FA5174
x4
M8 x25mm
Washer
FA8440
x4

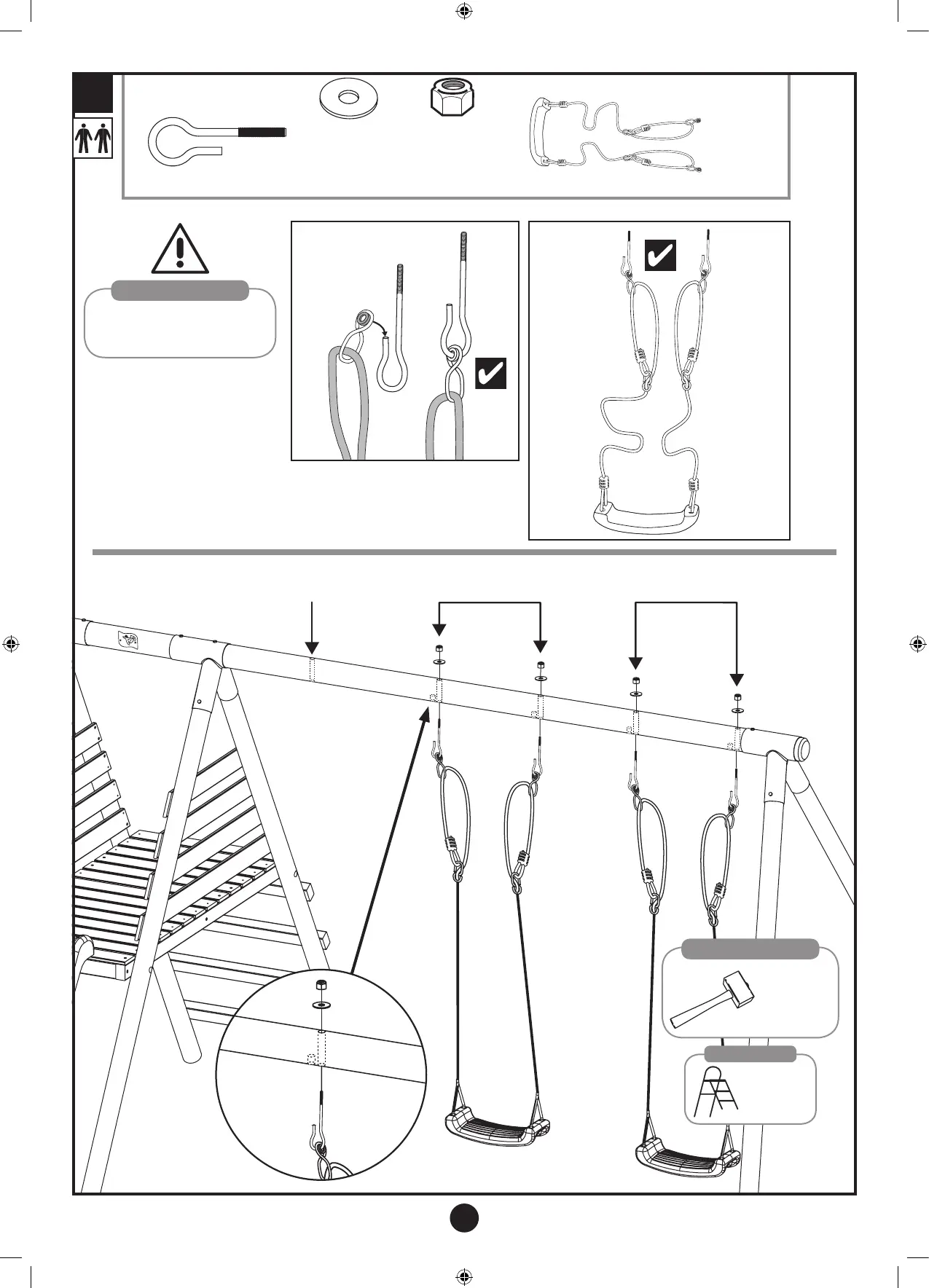

Swing Seat
FC5220
x2
Use Mallet to
firmly locate
Hook bolt in
pilot hole
ASSEMBLY TIP
Attach swing seat ‘S’ hook to
M8 Hook bolt before inserting
Hook bolt to top bar (see left).
IMPORTANT
Seat with
‘S’ hook
‘S’ hook
Hook Bolt
M8 Nylon Insert Nut
M8 washer
Glide Ride Swing
Postion
Swing Seat
Postion
Swing Seat
Postion
ASSEMBLY TIP
Step
ladders
required.
TP814 Roundwood Triple Multiplay NEW In0814-D 25.09.17.indd 19 25/09/2017 10:42
