TP Toys active fun TP814 User Manual

8

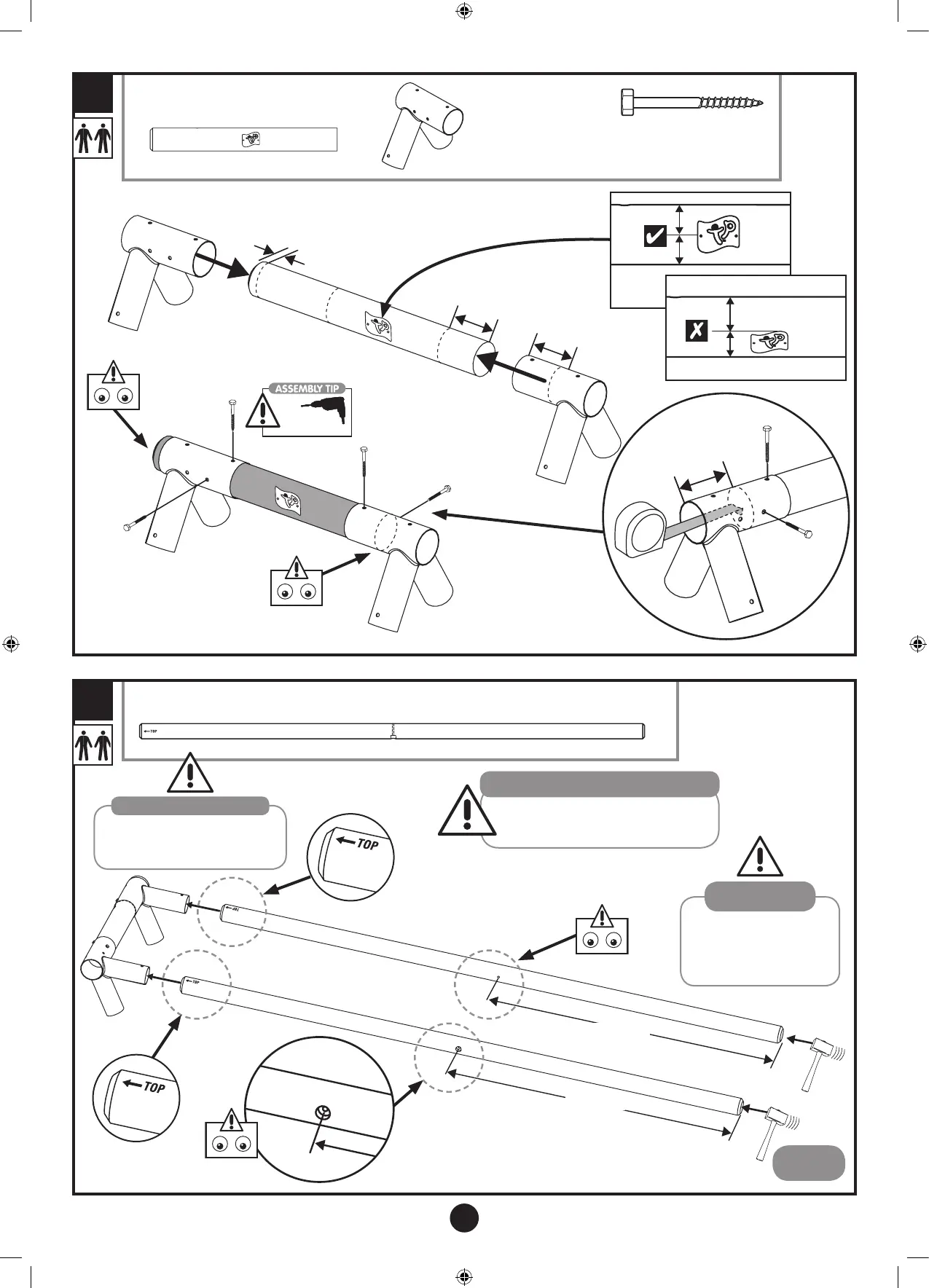

TP Triple Round Wood Multiplay
Stage
2
Stage
3
Bracket Roundwood
90 Degrees x2
FB6052
70mm
Coachscrew
ASSEMBLY
TIP
70mm Coachscrew x4
FA8439
Triple Roundwood Deck Top bar x1
MW0228 795mm
Legs (Deck) x2
MW0222 2668mm
125mm
125mm
30mm
1300mm
120mm
Ensure legs are
assembled this way.
1300mm dimension is
from the ground.
IMPORTANT
ASSEMBLY TIP
1300mm
Drill 5mm
Pilot holes
Do not use screws
until Stage 8.
IMPORTANT ASSEMBLY TIP
TOP is stamped on the wood.
Take the pieces with TOP on them
and insert into the brackets.
IMPORTANT ASSEMBLY TIP
TP814 Roundwood Triple Multiplay NEW In0814-D 25.09.17.indd 8 25/09/2017 10:41
