Accurate matching is crucially important to the sound quality produced by
a pick-up system. For this reason the phono module features a set of
miniature switches which enable the user to adjust it perfectly to suit all
current pick-up systems.

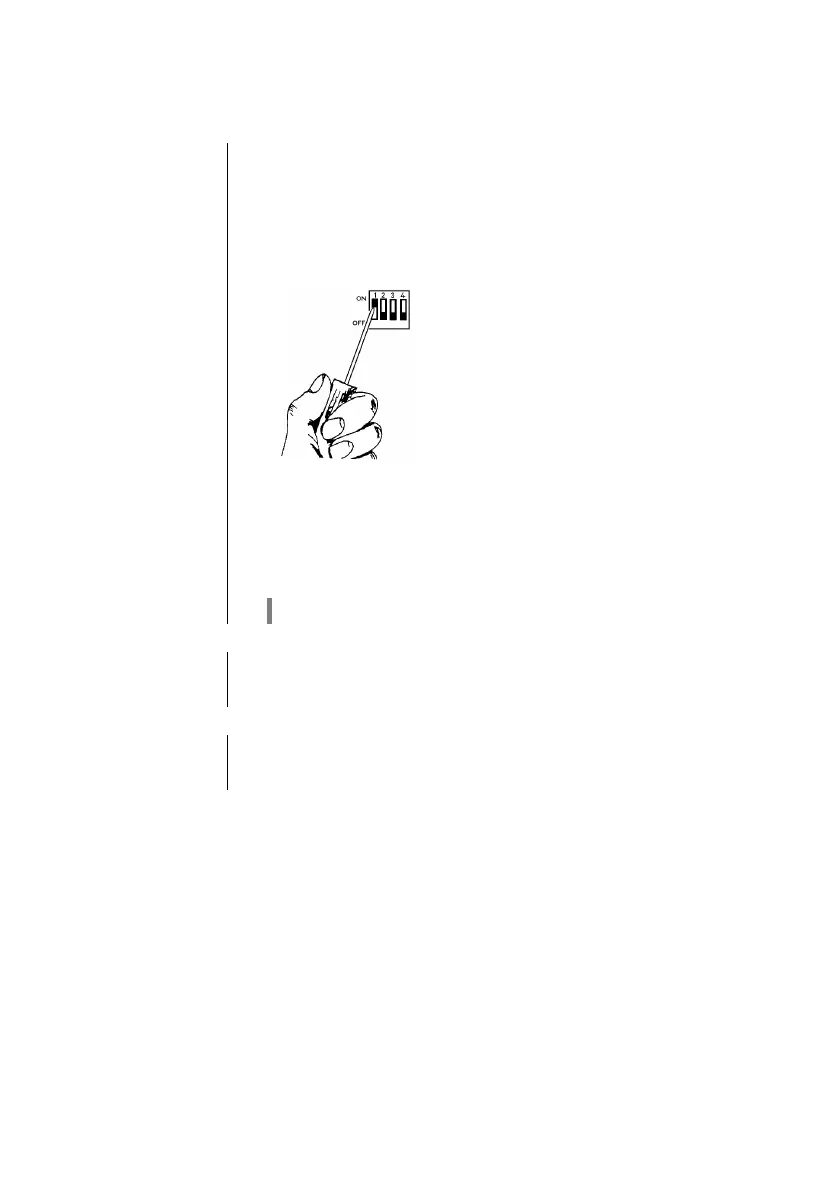

The individual switches can be moved to the “ON“ or “OFF“ position using
a small screwdriver.
The input sensitivity, capacitance and impedance should be adjusted as
shown in Tables 1 to 4.
All the following settings only can be altered with the top cover removed.
The connection of a turntable to the R 1000 E is shown on page 26.
Please make sure to connect the additional grounding lead of your
turntable to avoid hum and noise.
Please turn down the volume to a low level and then select „Phono“ as
listening source. Start playback of a record and adjust the volume to the
desired level.
