BLUE M
Model ESP400 Industrial Oven
Page 28
The Intermatic / Grasslin Model FM1D 24 Hour / 7 Day Timer may be provided to start and stop 24 hour / 7
day oven operation. This timer enables the oven to shut off at night and turn on and ramp back to
temperature before the work day starts. The timer can be programmed to have different hours of operation
for any day of the week. It can also be programmed with up to 20 on/off cycles, which can be assigned to
any combination of days. A large LCD display provides comprehensive information about your time settings.
Process Cycle Operation:
Normally open output contacts of the timer are wired in series with the Heater Contactor. When the
programmed start time is reached, timer contacts will close to energize the contactor which will start the
circulation blower and enable the heat control output. Power to the heater is controlled by the main
temperature controller. When the programmed stop time is reached, timer contacts will open to remove
power from the circulation blower and heater.
The following features are included with the FM1D:
24 Hour, or 7 Day Programming
20 Programs with up to 10 On and 10 Off Events per day
Manual 3-way Override: On-Auto-Off
16 Amp, 277 VAC resistive SPDT output contacts
Reserve Carryover: 3 Years (Non-replaceable Battery)
Daylight Time Changeover: Manual
A program consists of the following:
1. An ON or OFF command.
2. Time of day (Hour and
Minute)
3. Single day or multiple days
Controller Configuration:
The pre-programmed controller configuration for your chamber is documented in the Test Report, which is
located in the Supplemental Instructions Section. Refer to the controller’s user manual for more information.

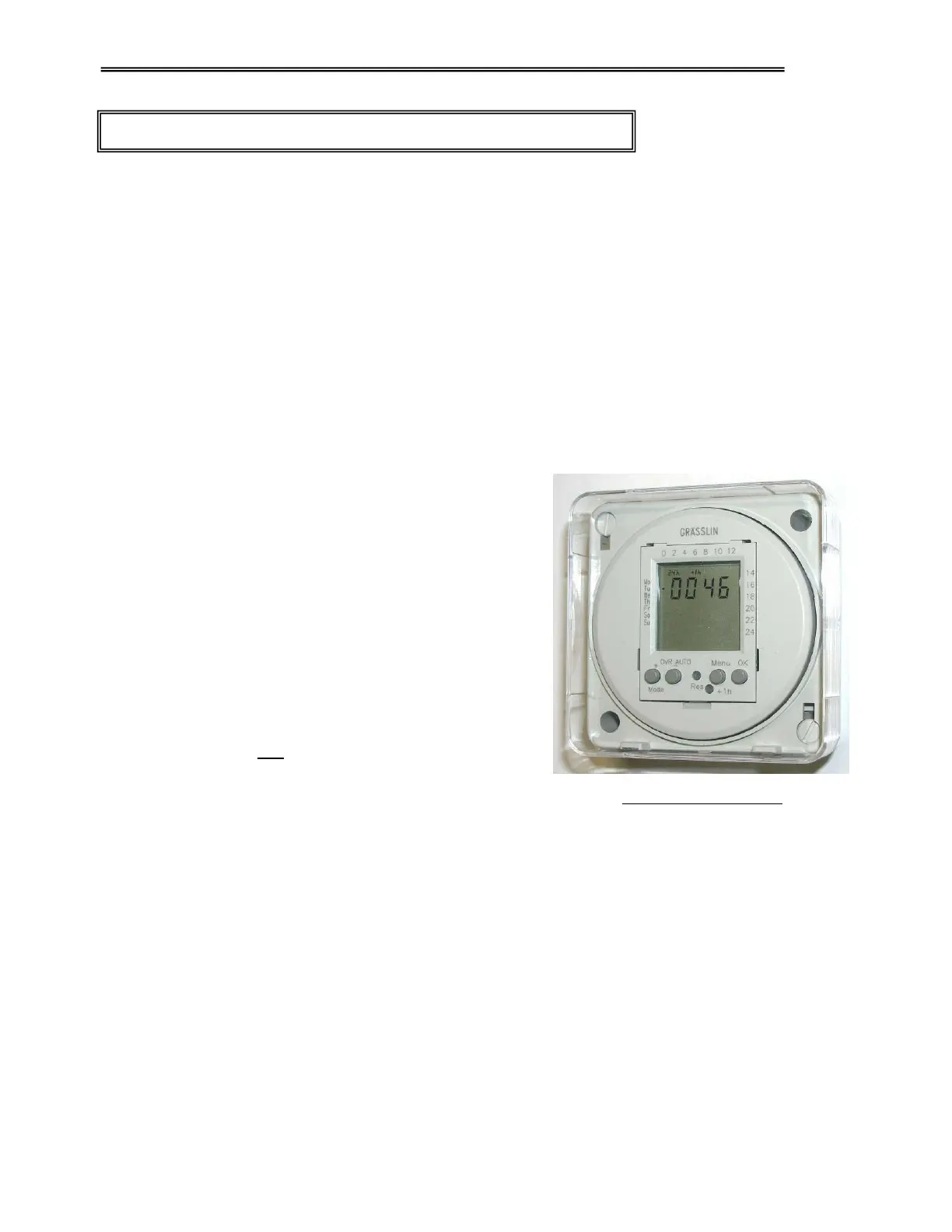

GRASSLIN FM1D TIMER
12.0 24 HR / 7 DAY TIMER – GRASSLIN FM1D (Optional)
