Item: BER-TRC1
Channels: 3CH
Model type: Car/Boat
RF range: 2.40 -2.48GHz
Bands: NO. 208
RF power: less than 20 dBm
2.4G system: FHSS
Code type: 2-FSK
Sensitivity: 1024
Low voltage warning: (less than 4.4V)
ST range: 84° (Around 42°)
TH range: 40° (F: 27;B:13)
Charger port: Yes
Power: 4.4V – 8.6V
Weight: 280g
Size: 100*140*200mm
Color: black
Certificate: CE0678, FCC
5. Transmitter Specifications
Item: BER-RXV3
Channels: 3
Model type: Car/Boat
RF range: 2.40-2.48GHz
Bands: NO. 208
RF power: less than 20 dBm
2.4G system: FHSS
Code type: 2-FSK
Power: 4.4V - 8.6V
Weight: 8g
ANT length: 170mm
Size: 13*20*30mm
Color: White
Rx Sensitivity: -105 dBm
Certificate: CE0678, FCC
Concentrator Specifications：
Item: BER-HCV1
Highly integrated
Voltage acquisition module
Measuring range: 1V – 30V
Temperature acquisition module
Measuring range: 0°C - 150°C
Speed acquisition module
Measuring range: 480RPM – 50000RPM

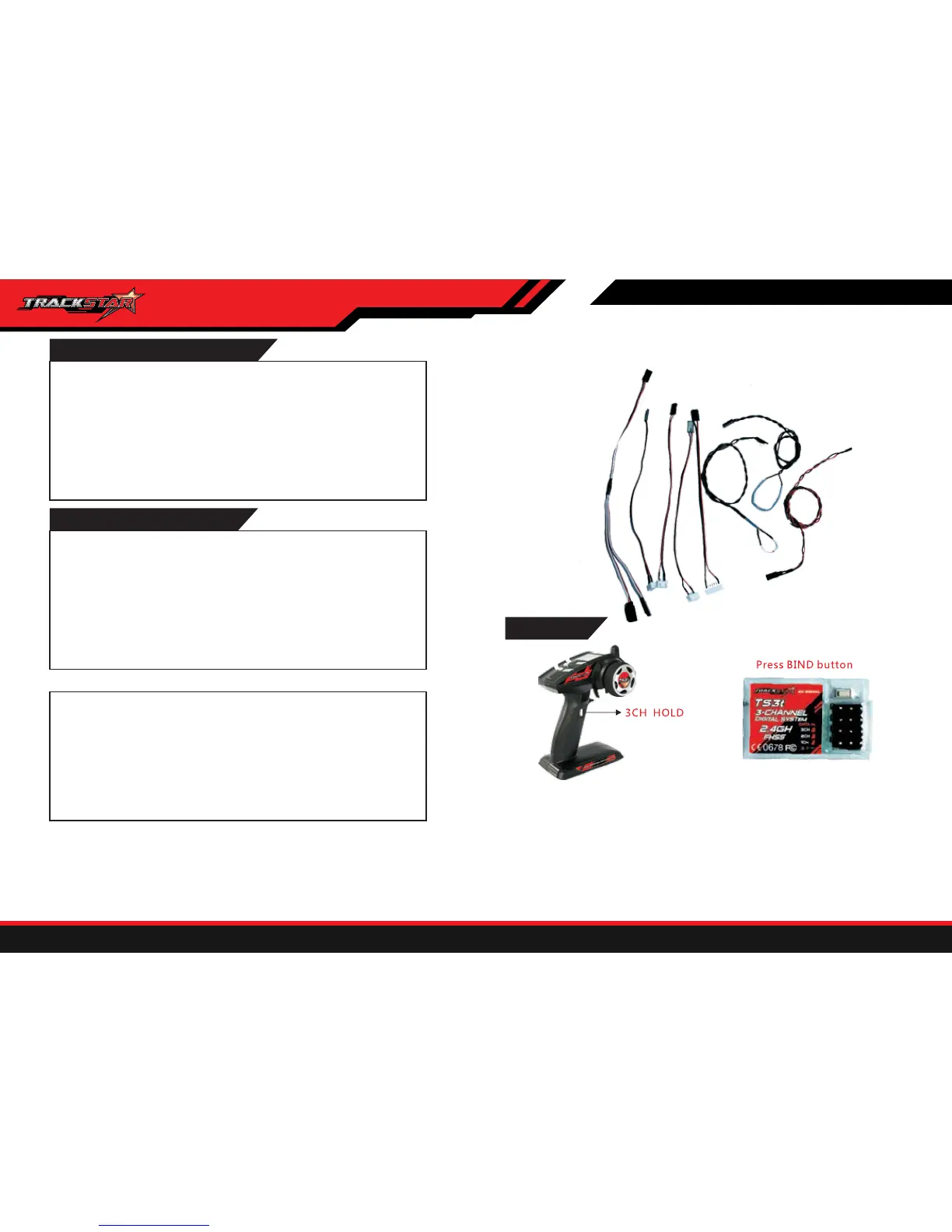

6. 01 Telemetry Concentrator Specs.
1. Temperature sensors, two types for EP power or GP power.
2. Speed Sensor.
3. Li-Po battery connecting line ( 2S, 3S, 4S and 6S ) ,Picture below.
6. 02 Sensors
Keeping 3CH button switch on transmitter(Tx), the Tx led blue light flashing and
buzzer sound 'B-B-B...'. It is in matching status. Then receiver(Rx) connect power,
the Rx green led light slow flash, keeping Rx BIND button till Rx green led light quick
flash several times then slow flash, It shows bind successful. And turn off Tx power
and switch it on again. then Rx green led light become solid, It's in working status.
NOTES: When binding processing, please don't put receiver antenna too close the
transmitter antenna, far away 30CM better distance, too close the signal may jam.
7 . Binding
6. Receiver Specifications
