Installation Instructions - General Information Issue: 1.0
TRACKER Network (UK) Ltd Date: 01/07/2013
1.8 Registration
Ensure the unit serial number and asset details have been correctly entered on the Dealer
Portal. (See OP85/86) Attach one VLU unit serial number barcode sticker to the vehicle job card.
1.9 Post installation
1. Ensure all wiring is free from any chafing / sharp edges. Disguise all wiring (inc. antenna) as
an existing wiring loom, using matching loom tape and/or cable ties.
2. Ensure the diagnostic LED is functioning and displays the correct sequence, If TRACKER Plus
has been installed Commission the unit. (See OP66/OP67)
3. Re-assemble vehicle.
4. Finally hand the welcome pack and remaining VLU unit serial number barcode stickers to
your Dealer Portal Sales Administrator so they can be passed on to the customer.
Kits must not be removed from the vehicle once the data has been entered onto the system and
submitted to TRACKER Network (UK) Ltd.
NOTE: Once the VLU has been connected to a permanent supply for a period of 2 hours or more, the
diagnostic LED will extinguish. The VLU will also send the network an “Out Of TEST Mode message” and
the network will respond by sending the VLU back an automatic QA.
The VLU can be reset by removing the end cap and disconnecting the internal battery for a period of
more than 30seconds, with the main 12v supply still connected. When the internal battery is
reconnected, the diagnostic LED will once again display its status for a period of 2 hours.
(See OP66/OP67)

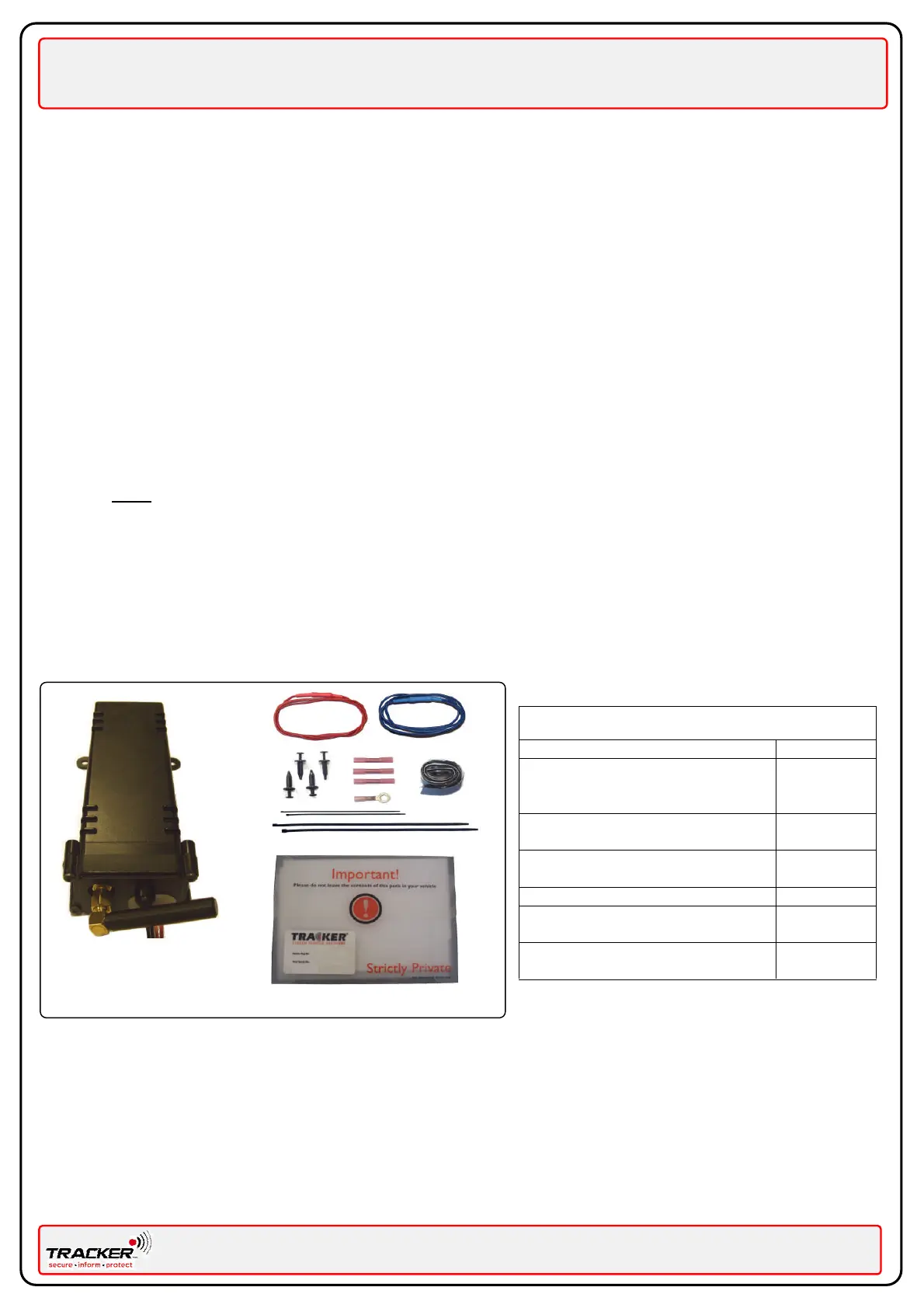

Qty. Description
1 Tracker
Plus Unit
(VLU6R)
1 RED 5A
Covert Fuse
1 BLUE 1A
Covert Fuse
4 Push rivets
1 Assorted
Fixing Kit
1 Welcome
Pack
VLU6R
