Installation Instructions – Lexus IS, July 2013 > Issue: 1.0
TRACKER Network (UK) Ltd Date: 01/07/2013
Power Connections

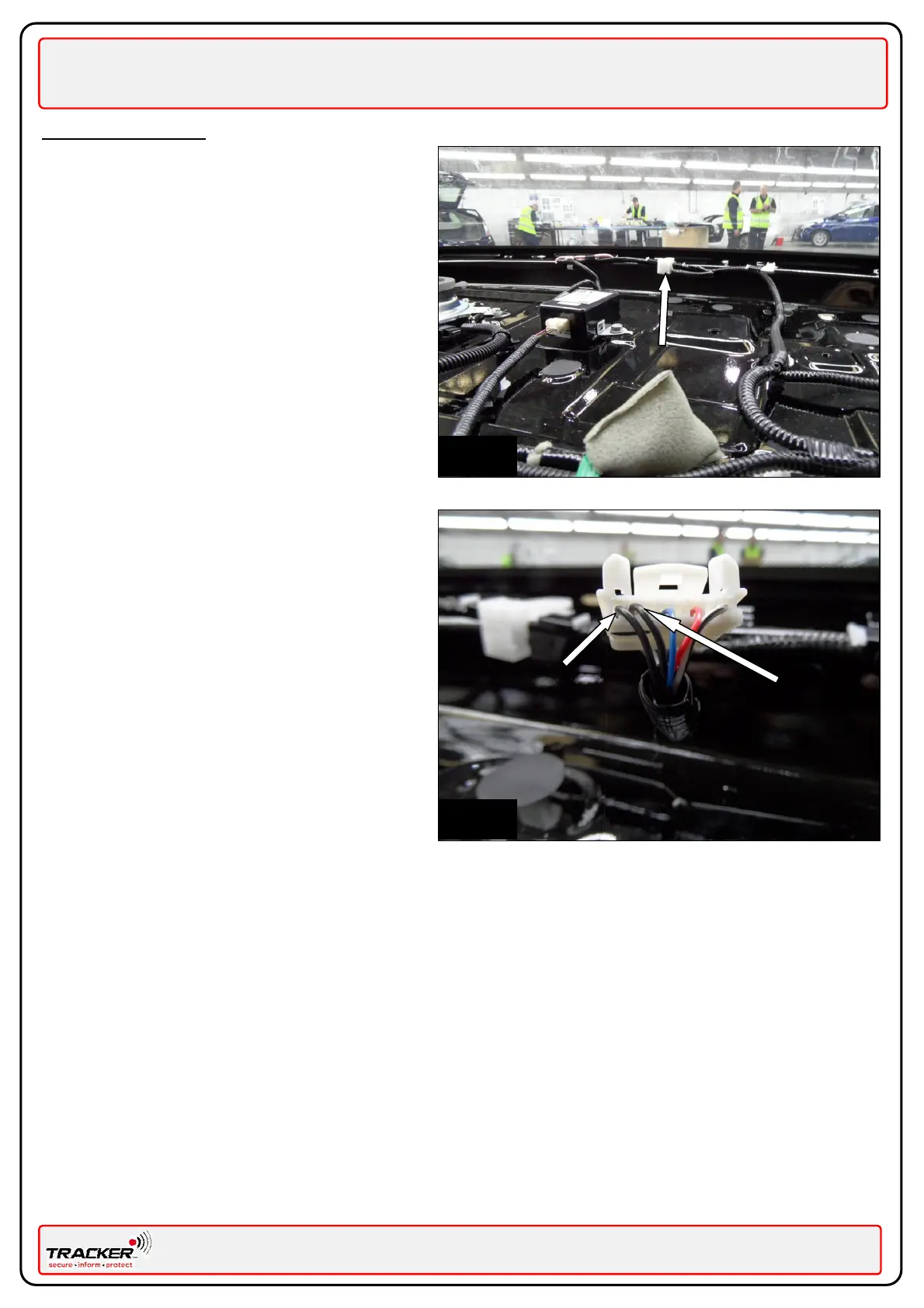

Fig. 4 – TRACKER VLU +12v and Ignition live can
be taken from the 8 way O.E. connector plug
located at rear of Parcel Shelf, Connector plug
Q39 is for Rear Sunshade and not currently a UK
option.
Connect the BLACK wire (Earth) of the VLU, to a
local O.E. earth point using the ring terminal
supplied. Do not route the VLU Earth wire
(Black) with the VHF antenna wire (Black/White)
Fig. 5 – Connect the RED wire (+12v) of the VLU,
via the supplied RED 5A fuse assembly, to the
BLACK wire (Pin 8) of the O.E. Rear Sunshade Q39
Connector Plug.
Connect the ORANGE wire (Ign) of the VLU, via
the supplied BLUE 1A fuse assembly, to the
Black wire (Pin 7) of the rear O.E. Rear Sunshade
Q39 Connector Plug.
System testing
Complete the installation by following the
information given for ‘Post Installation’ in the
‘General Information’ on page 3 of this manual.
