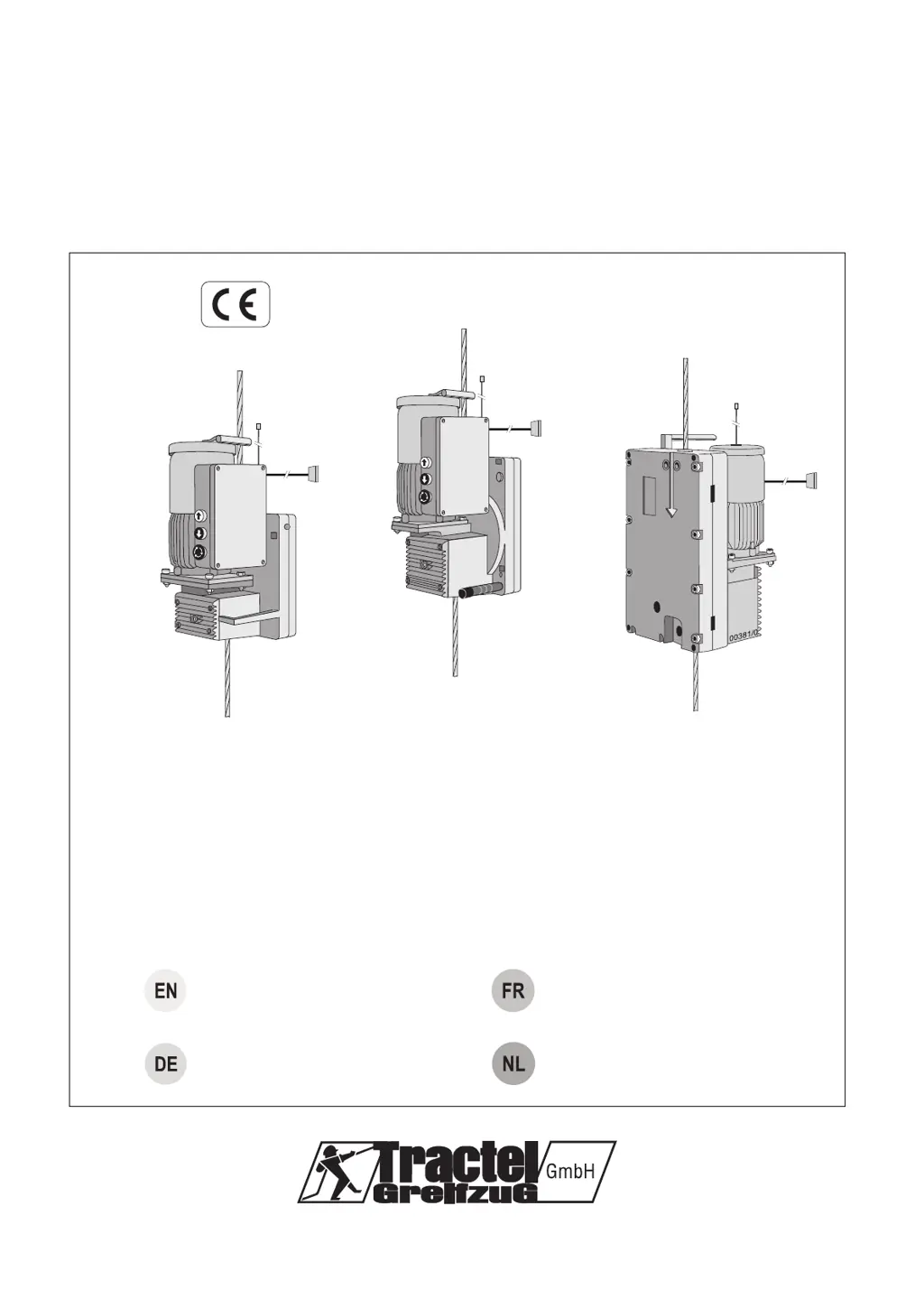

tirak™

Electrically driven motorized traction hoists for wire ropes for passenger transportation

Elektrisch angetriebene Seildurchlaufwinden für Drahtseile zur Personenbeförderung

Treuils électriques à défilement continu pour câbles métalliques pour le transport de personnes

Elektrisch aangedreven kabeldoorlooplieren voor draadkabels voor het personentransport

Model series /

Typenreihe /

Série /

Serie

L 500 P

Model series /

Typenreihe /

Série /

Serie

X 300 P

X 400 P

X 500 P

X 820 P

X 1030 P

Model series /

Typenreihe /

Série /

Serie

X 2050 P

Original Operation and

Installation Manual

Manuel d´installation et de

manutention original

Original-Montage- und

Betriebsanleitung

Originele montage- en

bedieningshandleiding

Table of Contents

Questions and Answers:

A
Anthony BarajasAug 22, 2025
Why does my Tractel tirak X 402 P Lifting Systems motor switch off suddenly after prolonged use?
- G
  Gregory ReyesAug 22, 2025
  If your Tractel Lifting Systems motor suddenly shuts off after extended use, it's likely due to overheating from inadequate cooling, supply voltage being too high or low, an ambient temperature exceeding 40°C, or operation at altitudes above 1000 m. To resolve this, ensure sufficient cooling, have an electrician measure the voltage and power consumption under load, and incorporate more frequent breaks during operation.
R
rrodriguezAug 26, 2025
What to do if Tractel tirak X 402 P Lifting Systems load continues to lower slowly when stopped?
- A
  Amy DelgadoAug 27, 2025
  If a suspended load continues to lower slowly when stopped with Tractel Lifting Systems, it may be caused by a defective or dirty operating brake (spring-loaded brake) on the hoist, or an incorrect wire rope diameter / wire rope diameter too small. In the first instance, lower the suspended load down to the ground and send the hoist to the manufacturer for repairs or hand it over to a specialist hoisting gear workshop. In the second, replace incorrect wire ropes with specified wire ropes.
J
James CampbellAug 27, 2025
Why does my Tractel tirak X 402 P motor hum or rope drive creak during operation?
- E
  Edward ReevesAug 28, 2025
  If your Tractel Lifting Systems motor hums or the rope drive creaks while still allowing upward and downward movement, it could be due to several reasons. The brake may not be opening because the power supply, brake coil, or rectifier are defective, or the brake rotor is worn. Alternatively, there might be dirt in the rope drive, or the wire rope and rope drive might be damaged. Have the power supply, brake coil, and rectifier checked by an electrician, and repair or replace them as needed. If the brake rotor is worn or there is damage to the rope drive, replace the hoist as soon as possible and have it checked/repaired by TRACTEL Greifzug GmbH or an authorized hoisting gear workshop.
J
John HuffmanAug 29, 2025
What to do if Tractel Lifting Systems load cannot be lowered but can be lifted?
- J
  John EverettAug 29, 2025
  If the load on your Tractel Lifting Systems cannot be lowered but can be lifted, it's possible that the load has come to rest on or jammed against an obstacle. Carefully move the load upwards and remove the obstacle. After doing so, check the wire rope, rigging, and lifting equipment to confirm their operating safety.
W
Wayne JonesAug 31, 2025
What to do if Tractel tirak X 402 P Lifting Systems motor starts, but the wire rope doesn't move?
- N
  Noah CoxAug 31, 2025
  If the motor of your Tractel Lifting Systems starts but the wire rope remains stationary, it could be caused by a rope jam in the hoist due to damaged or incorrect wire rope, or an obstructed rope exit. Support the load, for example, with a wedge clamp or lever hoist. Cut the wire rope in front of and behind the hoist. Send the hoist in for repair. When available, install a new wire rope in replacement hoist.
J
Jeffery FranklinSep 2, 2025
What to do if my Tractel tirak X 402 P load has jammed or is tied in place?
- F
  fieldsleslieSep 2, 2025
  If the load on your Tractel Lifting Systems is jammed or tied in place, carefully free or untie the load. Afterwards, inspect the wire rope, rigging, and load lifting equipment to ensure they are safe to operate.
M
Melissa McbrideSep 3, 2025
What happens if Tractel tirak X 402 P load moves downwards with the hand crank in operating position?
- P
  philip18Sep 4, 2025
  If your hoist is fitted with hand cranks and the load moves downwards with the operating brake open and the hand crank in the operating position, it indicates a fault with the spring mechanism for the hand crank. Replace the hoist as soon as possible and have it checked / repaired by TRACTEL Greifzug GmbH or an authorized hoisting gear workshop.
Z
Zachary KerrSep 8, 2025
Why does my Tractel Chain Hoists motor hum or rope drive creak?
- K
  Kristin IngramSep 9, 2025
  If the motor hums intensively or the rope drive creaks, even though UP and DOWN travel is possible, it could be due to: * Overheating caused by deficient motor cooling. Provide sufficient cooling. * Overheating due to the voltage being too high or too low. Have an electrician measure the voltage and power consumption when subjected to load. Increase the wire cross-section if necessary. * Dirt in the rope drive, which could damage the rope and rope drive. Replace the hoist as soon as possible and have it checked or repaired by TRACTEL Greifzug GmbH or an authorized hoisting gear workshop.
R
Richard QuinnSep 12, 2025
What to do if suspended load continues to be lowered slowly when stopped with Tractel Chain Hoists?
- C
  Cynthia Thomas MDSep 12, 2025
  If the suspended load continues to be lowered slowly when stopped, it could be due to: * A defective or dirty operating brake (spring-applied brake) on the hoist. Lower the suspended load down to the ground and send the hoist to the manufacturer for repairs or hand it over to a specialist hoisting gear workshop. * An incorrect rope diameter or a rope diameter that is too small. Replace incorrect ropes with specified ropes.
R
Robert JonesSep 12, 2025
What to do if Tractel Chain Hoists load cannot be lowered but the rope can be lifted?
- A
  Andrew KingSep 12, 2025
  If the load cannot be lowered or slackened although the rope can be lifted or pulled: * The load may have come to rest on an obstacle or has jammed on an obstacle. Carefully move the load upwards and remove the obstacle. Check the rope, rigging and lifting equipment to confirm their operating safety. * There may be a fault in the DOWN control circuit of the hoist. Trigger emergency descent by releasing the brake and have the connections, wiring and cut-outs checked by an electrician and repair if necessary.

Tractel tirak X 402 P Specifications

General

Brand	Tractel
Model	tirak X 402 P
Category	Lifting Systems
Language	English

Summary

Safety

General safety instructions

Essential safety guidelines for safe operation and correct functioning of the equipment.

Instructions for the operator

Operator responsibilities, training, emergency plans, and correct use of the machine.

System manufacturer's responsibilities

Description

Functional description

Technical Specifications

Safety equipment

Details the safety features like emergency stop, load limiting, and brakes.

Anchoring

Load limits

Specifies the load limits and guidelines for safe operation.

Ropes

General

Installation and commissioning

Checks to be undertaken before starting installation

Detailed checklist of checks before starting installation.

Assembly

Commissioning

Procedures for commissioning, including functional tests and brake testing.

Operation

Checking before starting work

Operation

General operating instructions and safety warnings during hoist operation.

Emergency descent

Procedures for manually lowering the hoist in case of power failure.

Operation using the hand crank

Instructions for operating the hoist with a hand crank for emergency use.

Switching off when overloaded

Foreseeable misuse

Dismantling

Maintenance work

Authorized maintenance personnel

Specifies who is authorized to perform maintenance and service work.

Mandatory inspections

Care and maintenance

Adjustment

Procedures for adjusting the mechanical load limiting device.

Troubleshooting
