INSTALLATION
Correct installation of the winch is required for proper operation.
Mount the winch on the vehicle or other fixed installation by using a screw
(M10×1.5×35mm), M10 nut, ∅10 flat washer and ∅10 spring washer (four sets).
WARNING: This winch must be mounted with the cable in an under wound direction.
Improper mounting could damage the winch and void the warranty.

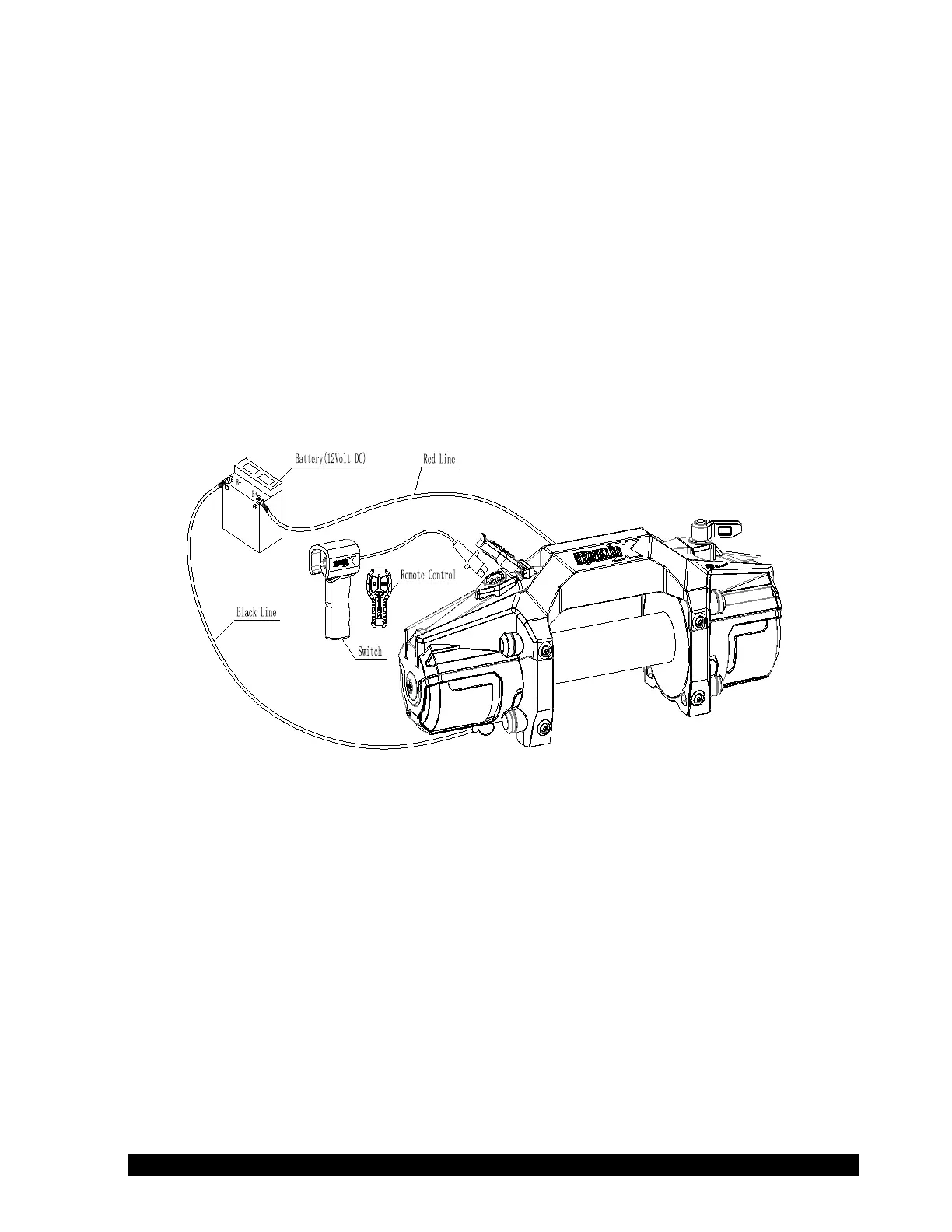

Connect the red wire to the positive terminal and the black wire to the negative
terminal of the battery.(See Fig. 1).
Fig. 1
Check the rotation direction of the drum. Pull and turn the clutch knob to the
“OUT” position (drum should turn freely by hand). Pull out some cable from the
drum, and then turn the clutch knob to the “IN” position. Press the “OUT” button on
the switch; if the cable is releasing then it is properly connected. Otherwise
reverse the wire connections to the motor, and repeat the above-mentioned
operation.
