TradeWeld DIGITEC 200 - Parts and Diagrams; Explosion Diagram; Parts List

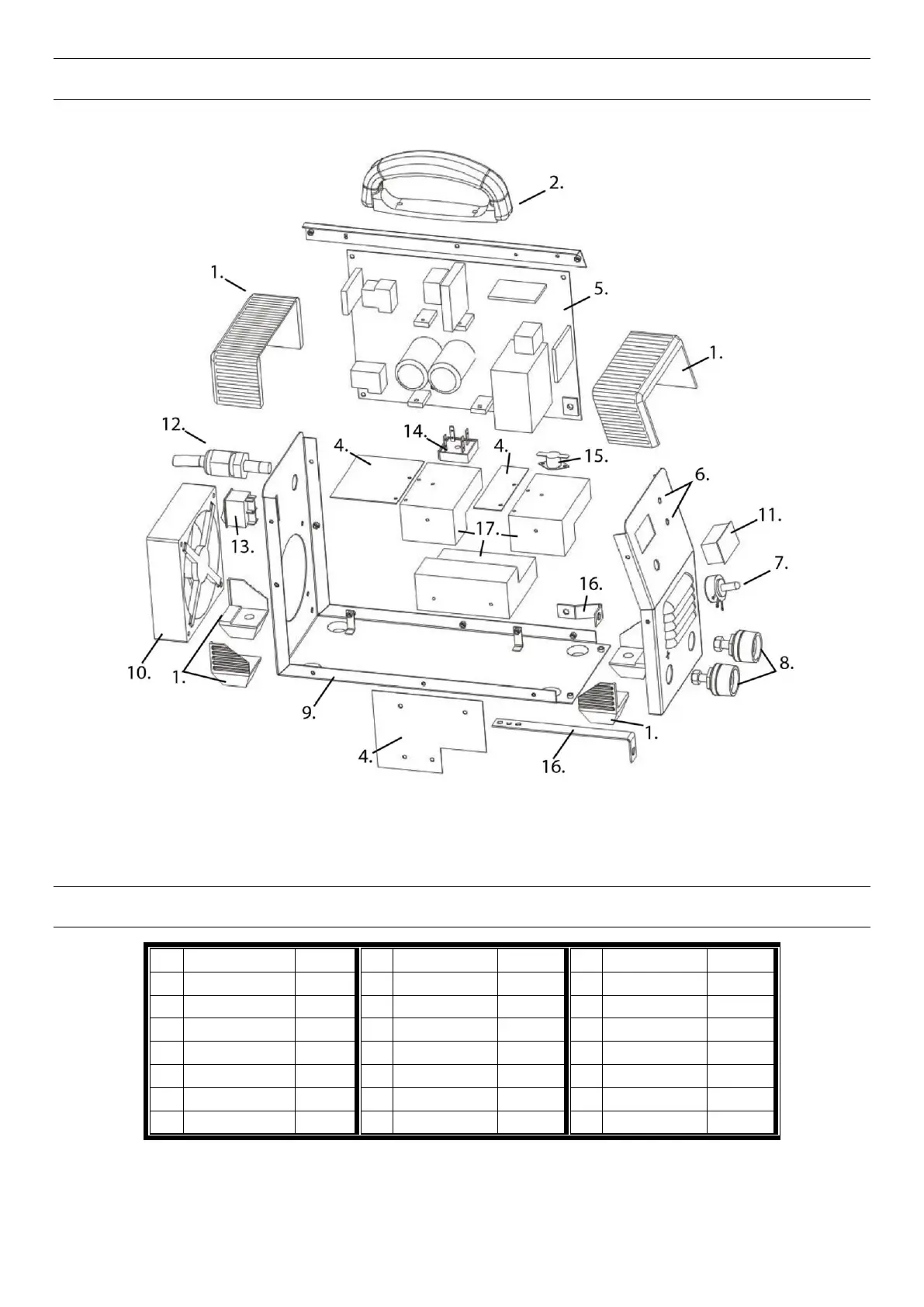

DIGITEC EXPLOSION DIAGRAM
PART LIST DIGITEC
NO.
NAME
PART NO.
NO.
NAME
PART NO.
NO.
NAME
PART NO.
1
PLASTIC BUMPERS
POT KNOB
EWS00013
14
BLOCK RECTIFIER
EW00999
2
HANDLE
EW0121
8
35-50 DINSE SOCKETS
EWC0061
15
THERMAL SWITCH
3
MACHINE COVER
9
MACHINE CHASIE
16
BUZZ BAR
CONNECTOR
4
INSULATION BOARD
10
FAN 24V DC
EWPCB00071
17
HEAT SINK
5
MAIN CONTROL BOARD
11
DISPLAY
6
LED INDICATORS
12
POWER CABLE
7
POTENTIOMETER 1K
EWS00014
13
ON / OFF SWITCH
EWS00017
