SECTION ONE: ASSEMBLY INSTRUCTIONS
MOUNTING THE LEGS:
1) Carefully lay the Grill on its back on a non-abrasive surface.

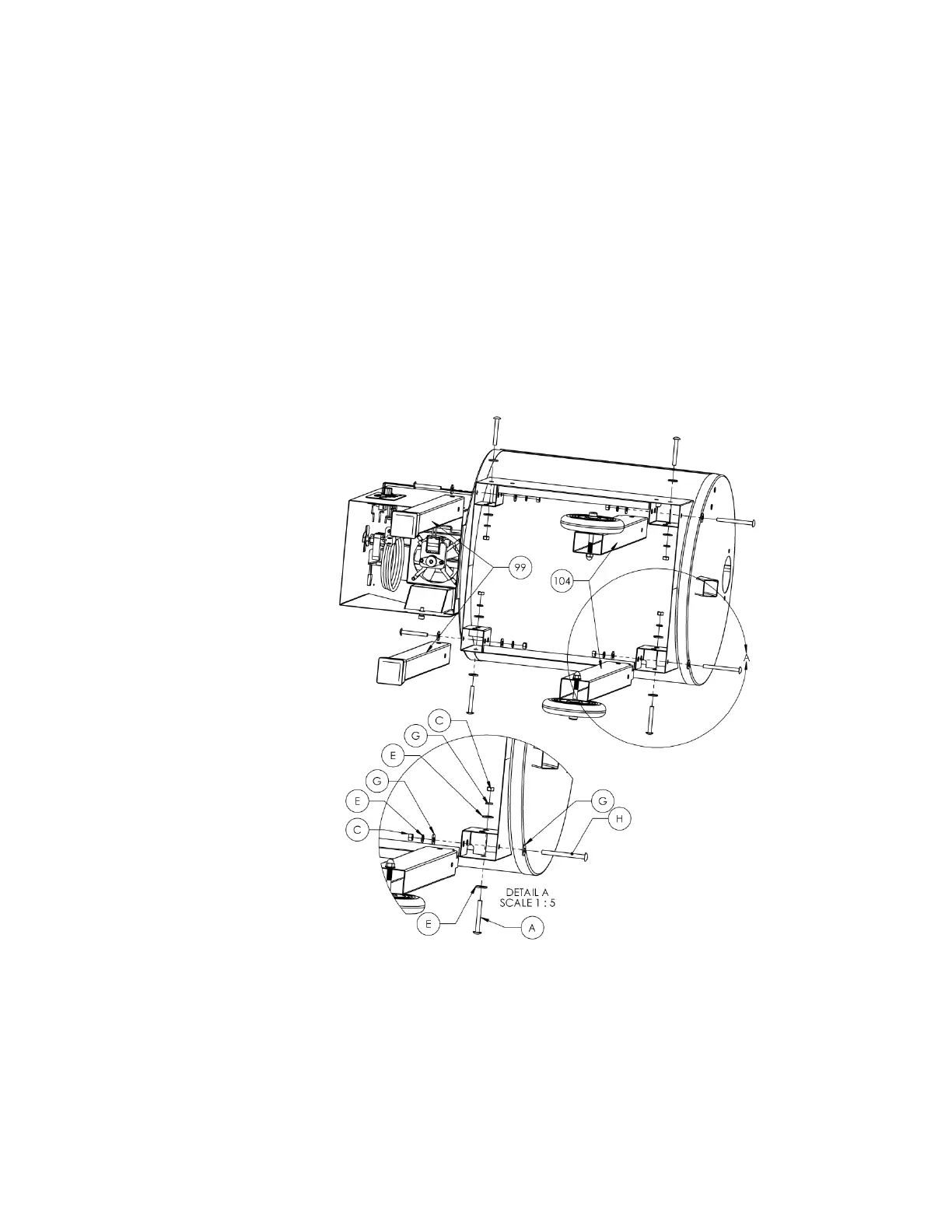

2) Use the Black Bolts (A), Washers (E, G) and Nuts (C) supplied in the hardware
kit to install the Leg Assemblies (99) on the left end of the Grill and the Wheel
Leg Assemblies (104) on the right end of the Grill, as shown in the upper diagram
below. The Nuts (C) on the Wheel Leg Assemblies (104) should go toward the
center of the Grill. You may need to rotate the Grill toward the back to
accommodate the Leg Assemblies (99 & 104) on the rear of the Grill. Leave the
Nuts loose during this step.
3) Set the Grill upright to level and then tighten all Nuts.
