SECTION ONE: ASSEMBLY INSTRUCTIONS

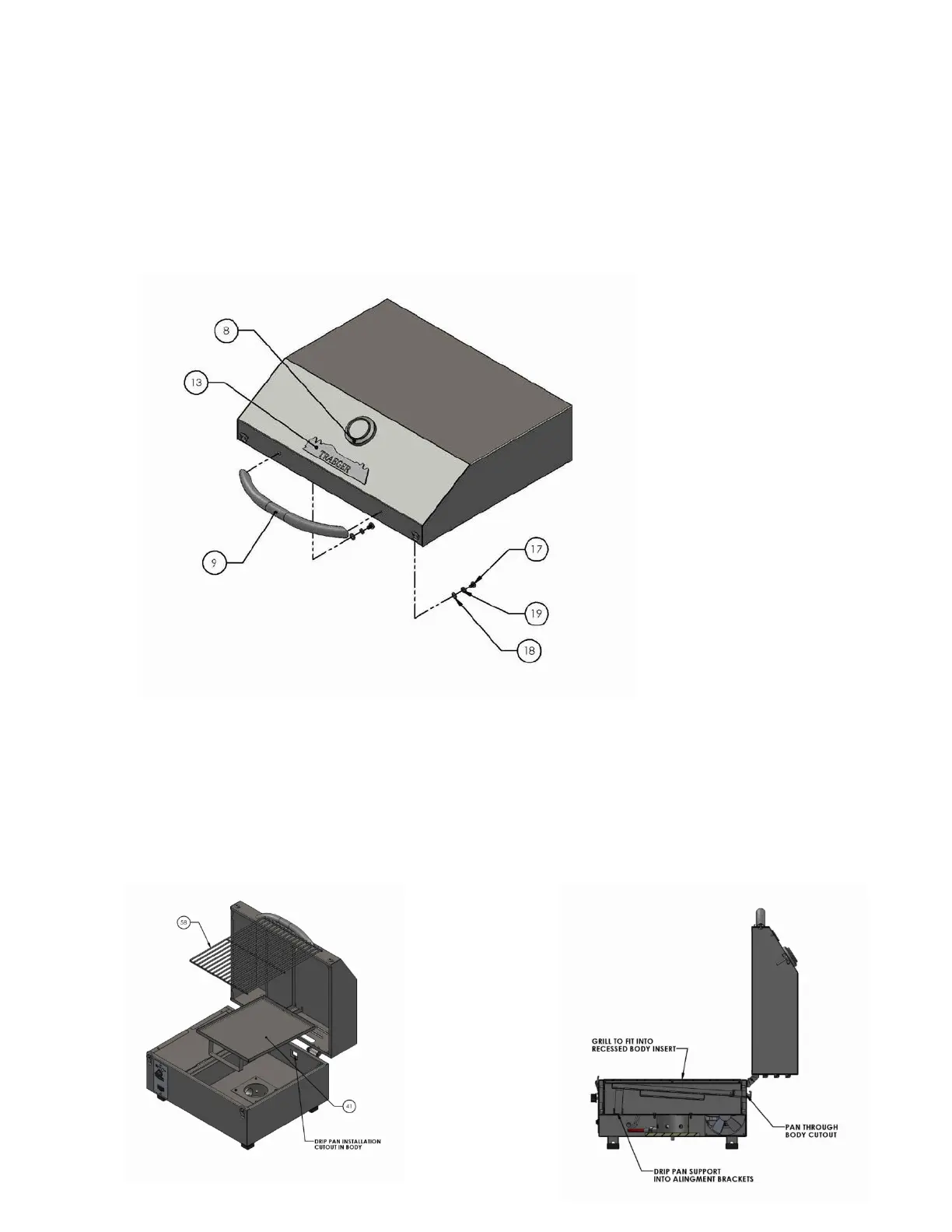

MOUNTING THE HANDLE TO THE LID:
1. Insert .250 lock washers (18), .250 flat washers (19) onto 1/4-20 bolt (17) and insert into
hole on the inside of the lid. Then align the handle to the screw and insert into threaded
hole and leave loose. Repeat the process on the other side of the handle.
2. Then tighten the bolts till they are snug. Do Not Over Tighten The Bolts.
INSTALLING THE DRIP PAN ASSEMBLY AND GRILL:
1. Insert the drip pan assembly (41) onto the inside of the BBQ020 body and insert into the
body cutout.
2. Insert the drip pan support into the alignment brackets this will create a lean towards the
back of the grill body.
3. Insert the Grill (58) into the recessed body inserts with the 3 parallel bars onto inserts.
To Next Page
