4 18-HE58D1-5
Installer’s Guide
Figure 5
Be sure suspension hardware and fasteners are properly
selected to support the load.

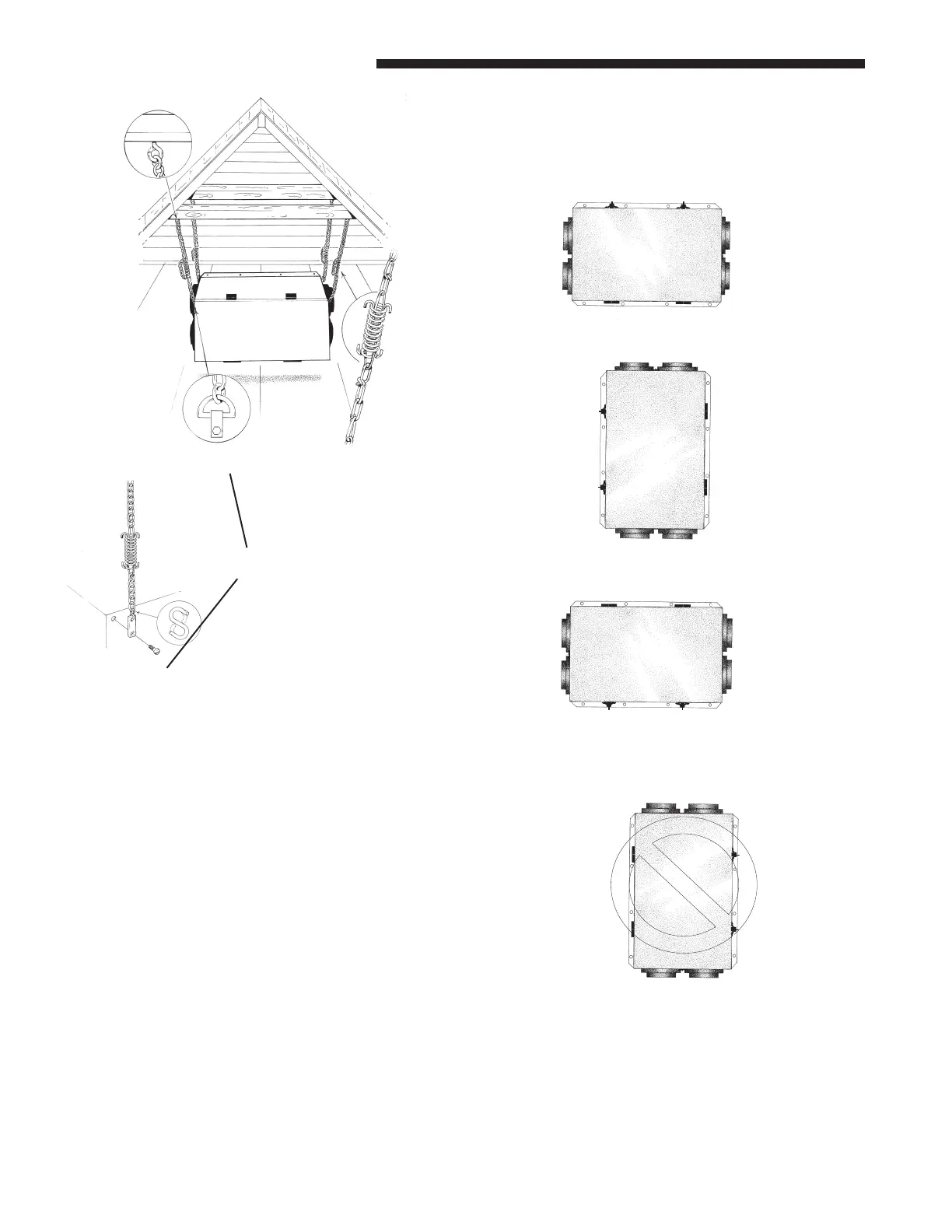

UNIT MOUNTING POSITIONS
The unit may be installed in a variety of positions
EXCEPT as noted in Figure 6d.
APPROVED MOUNTING POSITIONS
HINGE
HINGE
Figure 6a - Hinges on Bottom
HINGE
HINGE
Figure 6b - Hinges on Right
HINGE
HINGE
Figure 6c - Hinges on Top
NOT AN APPROVED MOUNTING POSITION
HINGE
HINGE
Figure 6d - Hinges on Left
Do not install in this position, as door will fall off when opened
ALTERNATIVE MOUNT-
ING OPTION TO "D" RING
