Trane 25 Series - Outdoor Unit Dimensions; Outdoor Unit 9 K-12 K Dimensions; Outdoor Unit 18 K Dimensions

The dimensions in these drawings
are rounded according to standard
measurement.

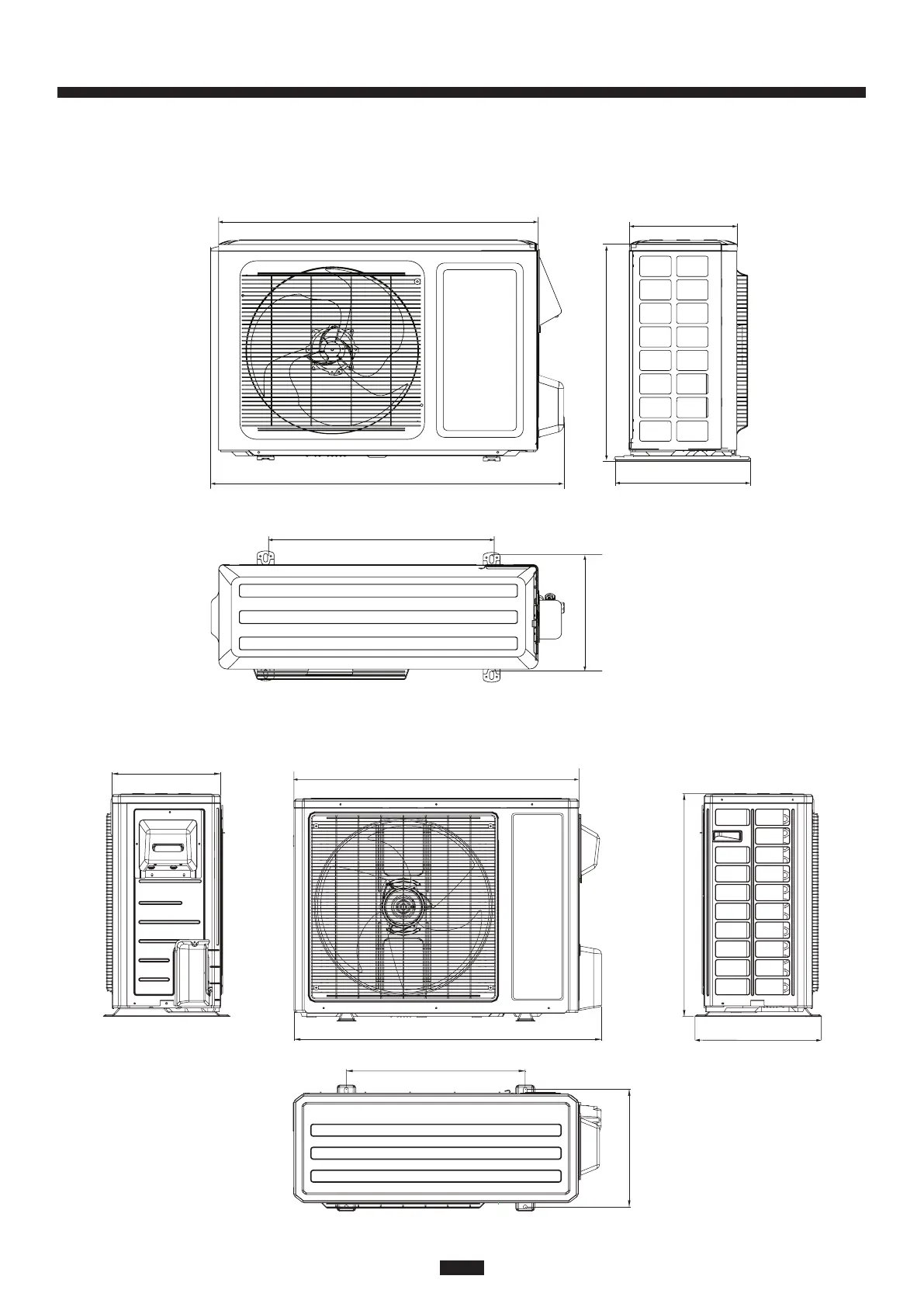

9K and 12K Outdoor Units
18K Outdoor Unit
Outdoor Unit Dimensions
21 5/16 (541.3)
33 3/8 (847.7)
11 1/4 (285.7)
30 (762)
10 (254)
12 5/8 (320.7)
21 5/16 (541.3)
Unit: inch (mm)
35 (889)
13 7/16 (341.3)
27 5/8 (701.7)
15 5/8 (396.9)
37 5/8 (955.7)
14 5/16 (363.5)
22 (558.8)
41
25 Series Single Zone
