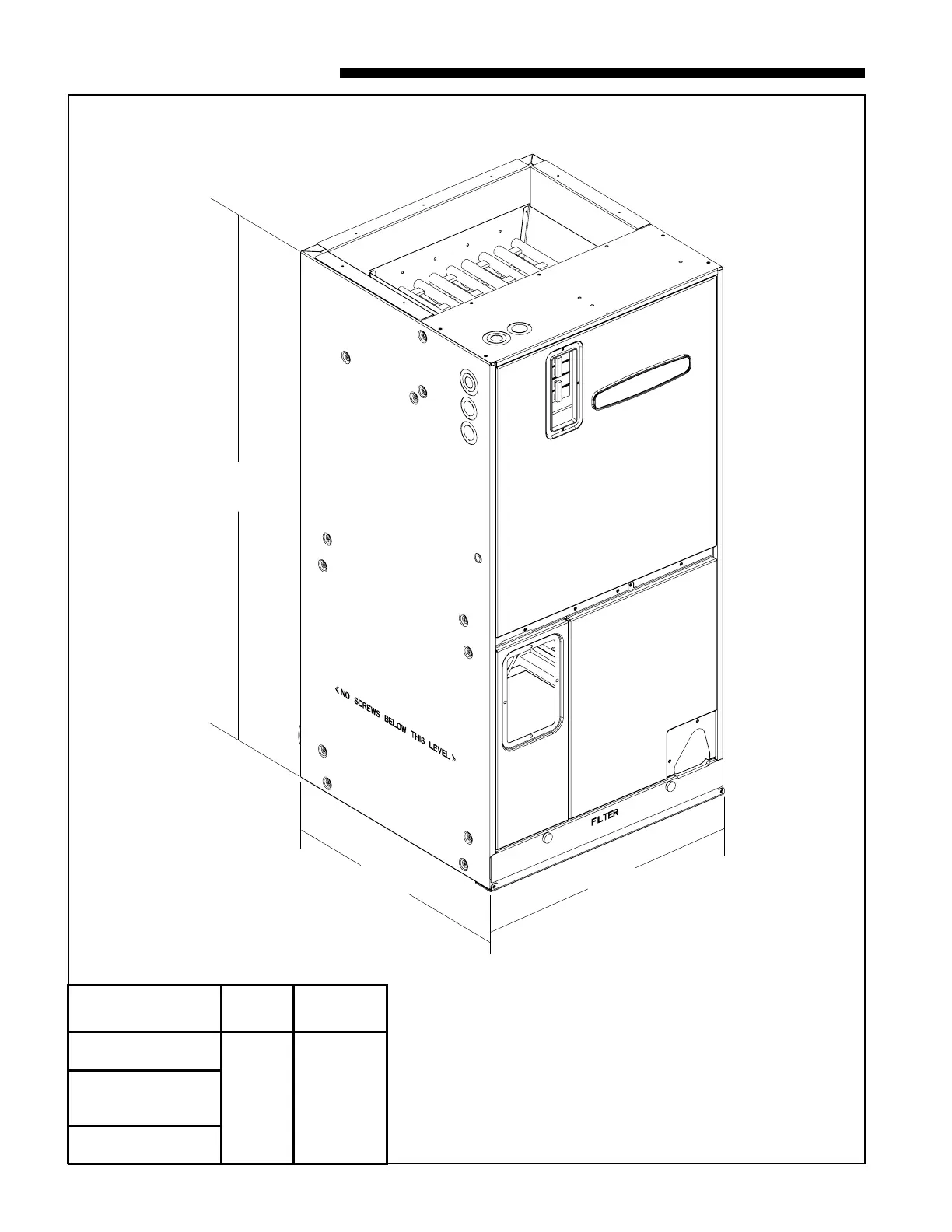

CHECKOUT PROCEDURES
After installation has been completed, it is recom-
mended that the Air Handler be checked against the fol-
lowing checklist.
1. Make sure power is “OFF” at power disconnect
switch ........................................................................ [ ]
2. Check all field wiring for tight connections. See that
grounding of unit is in accord with code ................. [ ]
3. Make sure unit suspension (if used) is secure and
that there are no tools or loose debris in, around or on
top of the unit ........................................................... [ ]
4. Check all duct outlets; they must be open and unre-
stricted ...................................................................... [ ]
5. Check drain lines and be sure all joints are tight
.................................................................................. [ ]
6. Make sure secondary drain pan is installed ..... [ ]
7. Check power supply for correct requirements per
unit nameplate ......................................................... [ ]
8. Check filters for proper size. Inform owner of
proper procedure for removal and reinstallation.... [ ]
9. Energize the system and carefully observe its op-
eration; make any necessary adjustment ............... [ ]
10. Instruct owner, engineer (if possible) on proper
operating procedure and leave Use and Care Manual
with owner................................................................ [ ]
SUPPLEMENTARY HEATERS CHECKOUT PROCEDURES,
IF a heater is USED, see "limitations and recommendations"
to determine if the heater requires a SPECIAL CIRCUIT.
1. Be sure the disconnect switch is “OFF”, and safety label (if any) is attached ................................................ [ ]
2. Check on field wiring for tight connections and grounding according to codes ............................................... [ ]
3. Check circuit protection for proper size per nameplate specifications ........................................................... [ ]
4. Check control box panel — in place and secured .......................................................................................... [ ]
NOTE: OPERATION OF HEATERS MUST BE CHECKED DURING THE OPERATION CHECK OF THE TOTAL
SYSTEM.
