6 18-GE12D1-5
Installer’s Guide
i. When supplementary heaters are used, accessory
subbase (TAYBASE102 for 2/4TEE3F62) must be
used. See Figure 1.
j. If a return duct is connected to the air handler, it
must be the same dimensions as the return
opening shown in the outline drawing on page
14.
k. Openings where field wiring enters the
cabinet must be completely sealed. Location
of power entry is shown on the outline drawing.

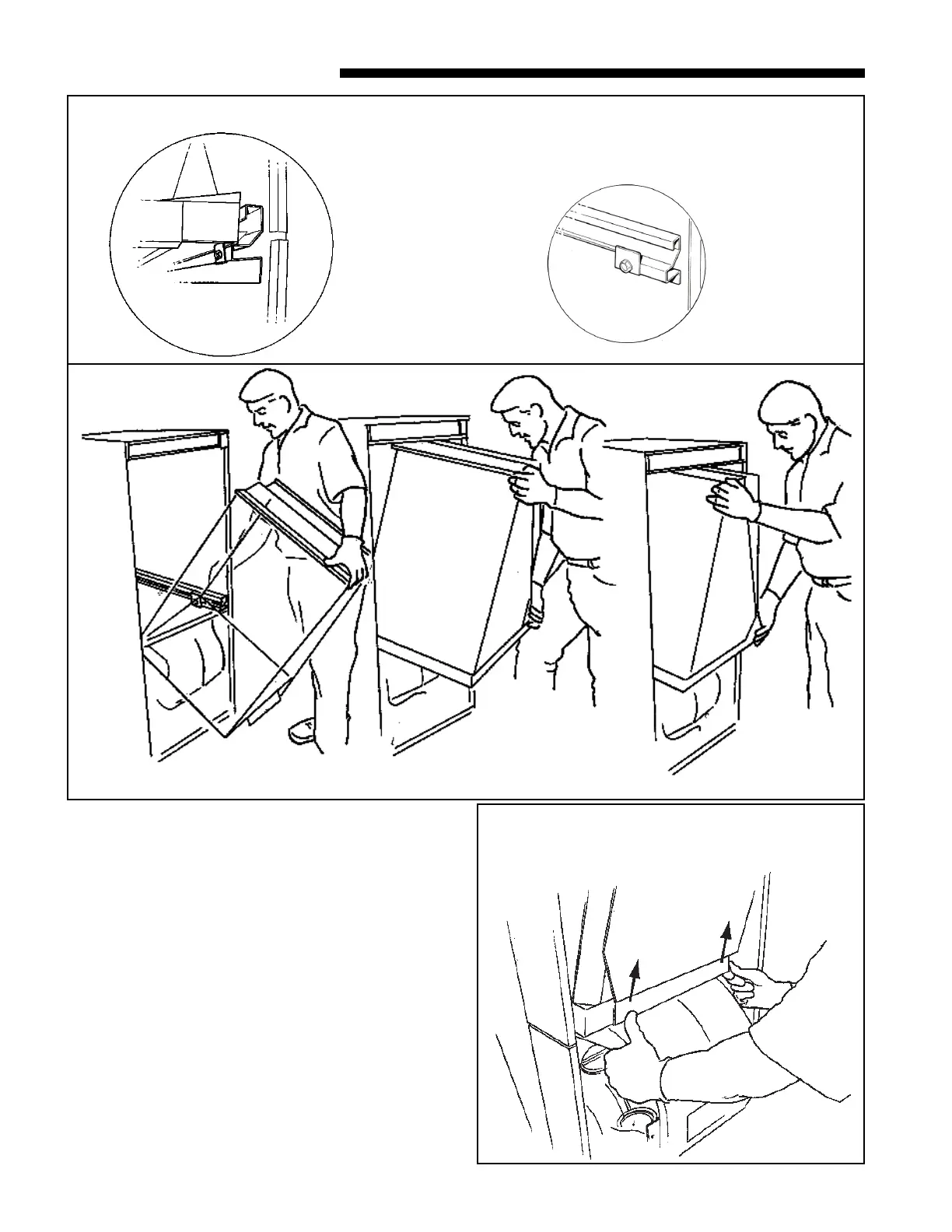

WHEN INSERTING COIL, TILT COIL FORWARD TO ALLOW
DRAINPAN TO CLEAR TABS ON COIL CHANNEL SUPPORTS.
FOR DOWNFLOW OR HORIZONTAL LEFT APPLICATIONS:
DRAINPAN SHOWN
IN PLACE
TAB - AS MOUNTED
ON COIL CHANNEL
SUPPORT
Figure 10
TO REMOVE BLOWER ASSEMBLY WHEN COIL IN
PLACE, PRESS UP ON COIL USING THUMBS
WHILE PULLING BLOWER FORWARD.
Figure 12
Figure 11
