The dimensions in these drawings
are rounded according to standard
measurement.

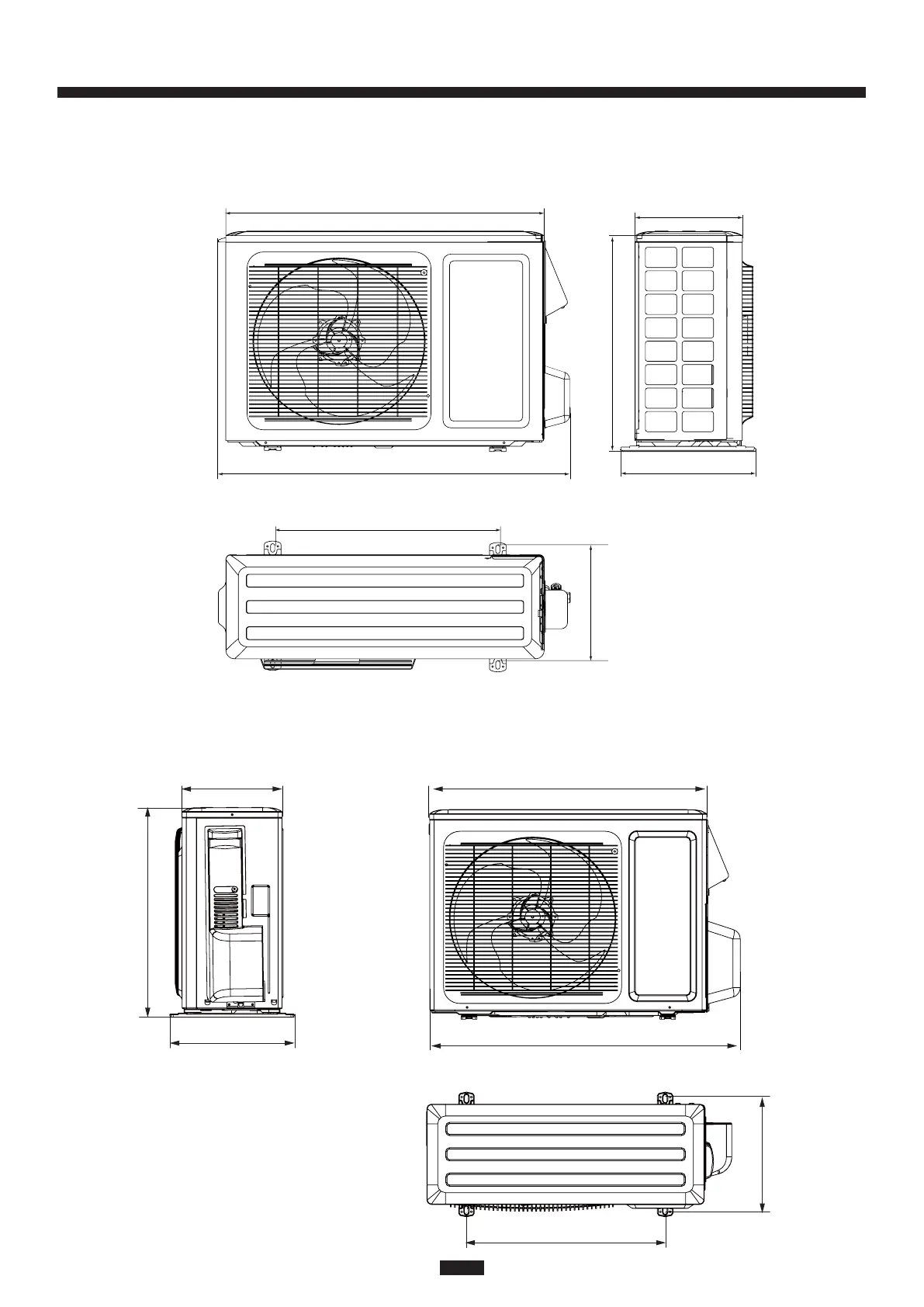

9K Outdoor Unit
12K Outdoor Units
Outdoor Unit Dimensions
23 5/16 (592.1)
33 3/8 (847.7)
11 1/4 (285.7)
30 (762)
10 (254)
12 5/8 (320.7)
21 5/16 (541.3)
33 3/8 (847.7)
23 5/16 (592.1)
12 5/8 (320.7)
8 (711.2)2
11
1/
4 (285.7)
20 (508)
10 1/8 (257.2)
Unit: inch (mm)
41
23 Series Single Zone
