Trane 4TEP3F18A1000A User Manual

|nsta||er's Guide

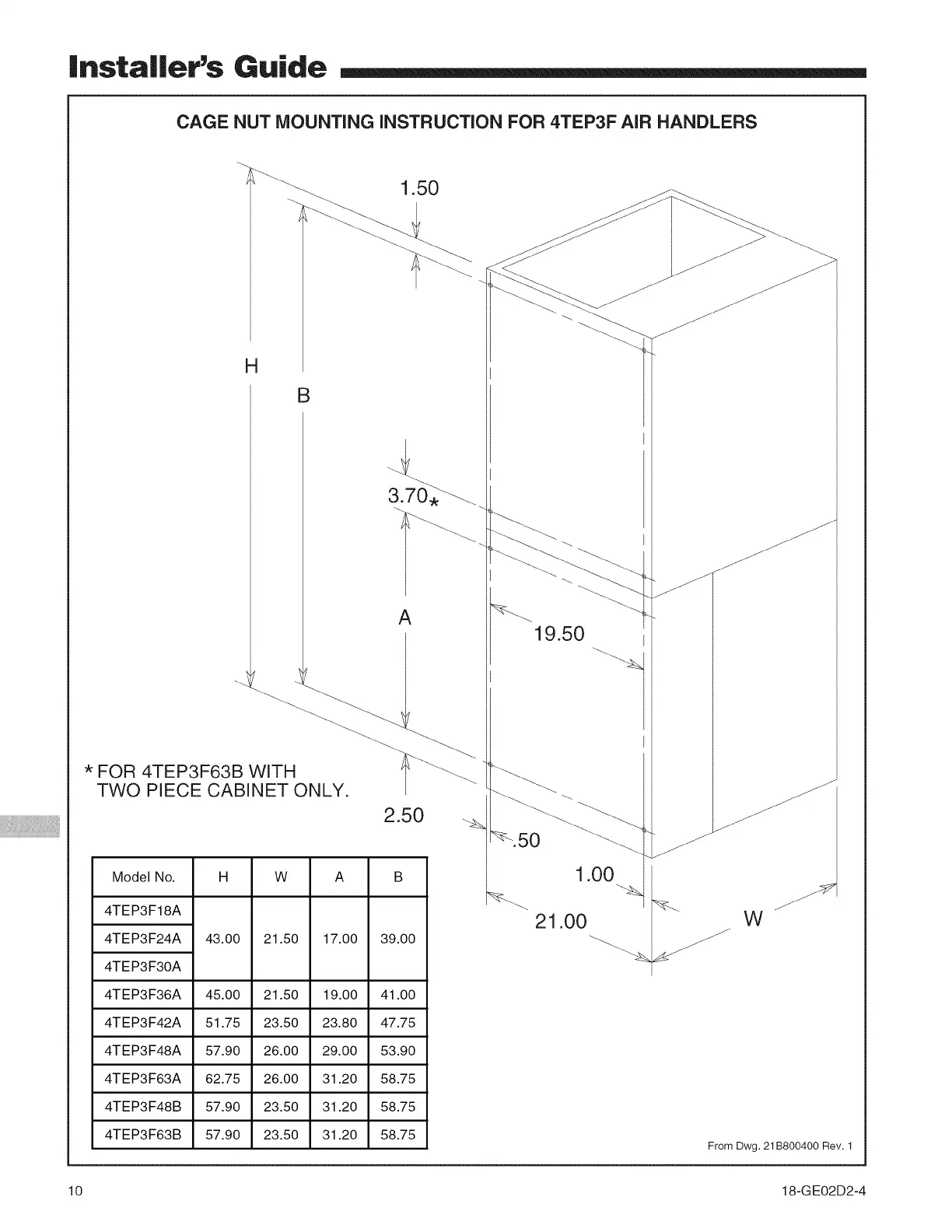

CAGE NUT MOUNTING iNSTRUCTiON FOR 4TEP3F AiR HANDLERS
1.50
H
B
* FOR 4TEP3F63B WITH
TWO PIECE CABINET ONLY.
A
Model No. H W A B
4TEP3F18A
4TE P3F24A 43.00 21.50 17.00 39.00
4TEP3F30A
4TEP3F36A 45.00 21.50 19.00 41.00
4TEP3F42A 51.75 23.50 23.80 47.75
4TEP3F48A 57.90 26.00 29.00 53.90
4TEP3F63A 62.75 26.00 31.20 58.75
4TEP3F48B 57.90 23.50 31.20 58.75
4TEP3F63B 57.90 23.50 31.20 58.75
19.50
_".50
1.00
21.00
f
W
From Dwg. 21 B800400 Rev. 1
10 18-GE02D2-4
