Trane 4TXK6-A User Manual

S chematic diagram being reference only (outdoor unit is with variation ) ,
p lease refer to real product for authentic information.
valve cover
Space to the wal l
Space to the ceiling
Space to the wall
Space to the wall
Air outlet side
Space to the floor
Above
Above
5.9 in. Above
5.9 in. Above
11.8in. Above
19.7 in. Above
19.7 in. Above
11.8 in. Above
78.7in. A b o v e
Above
Space to the obstruction
Air outlet side
Space to the wall
Air inlet side

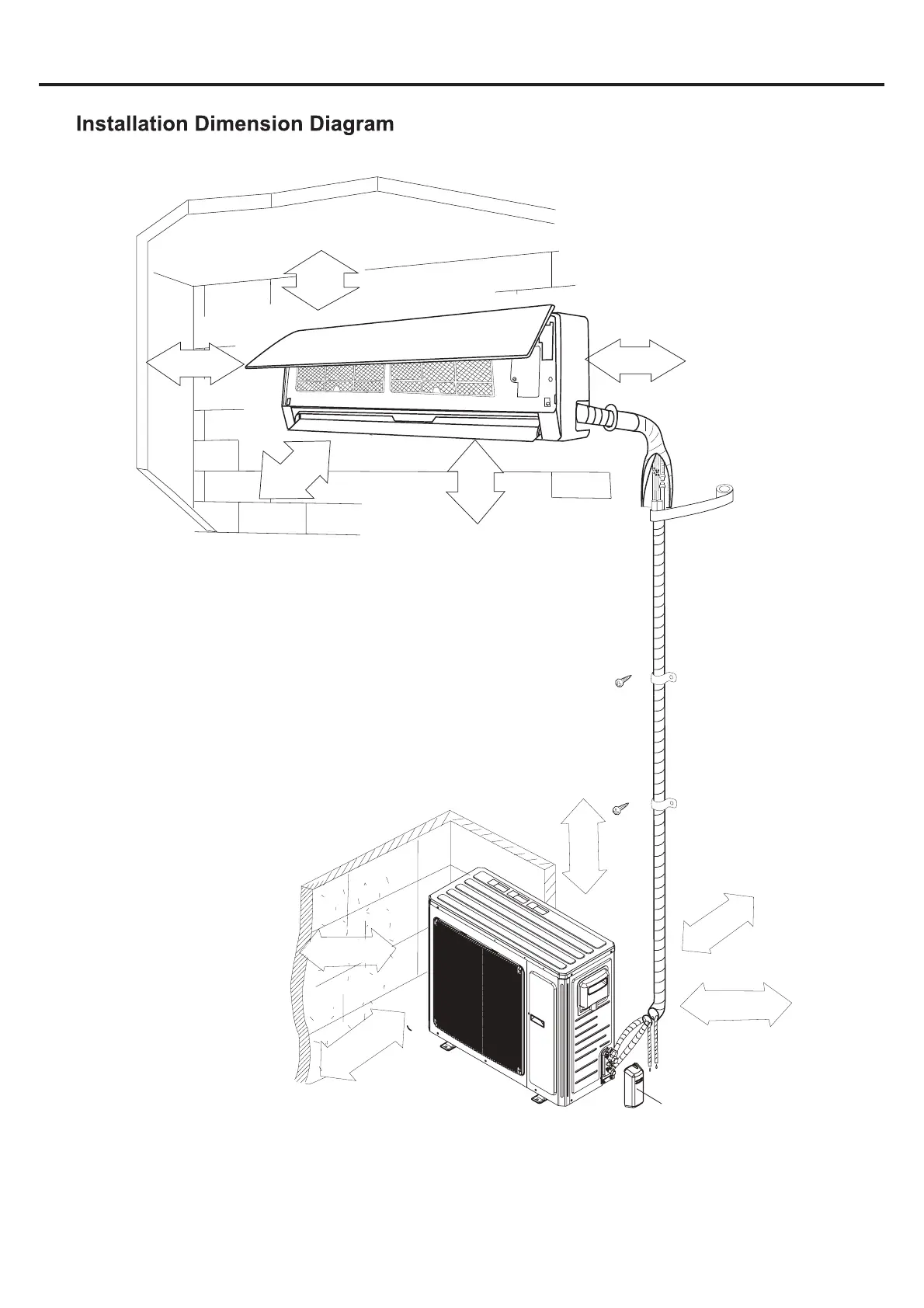

The dimensions of the space necessary for correct
installation of the appliance including the minimum
permissible distances to adjacent structures
●
5.9 in.
66
in.
118.1 in.
9
MS-SVN22A-EN
