Step 2—Determine Unit Clearances

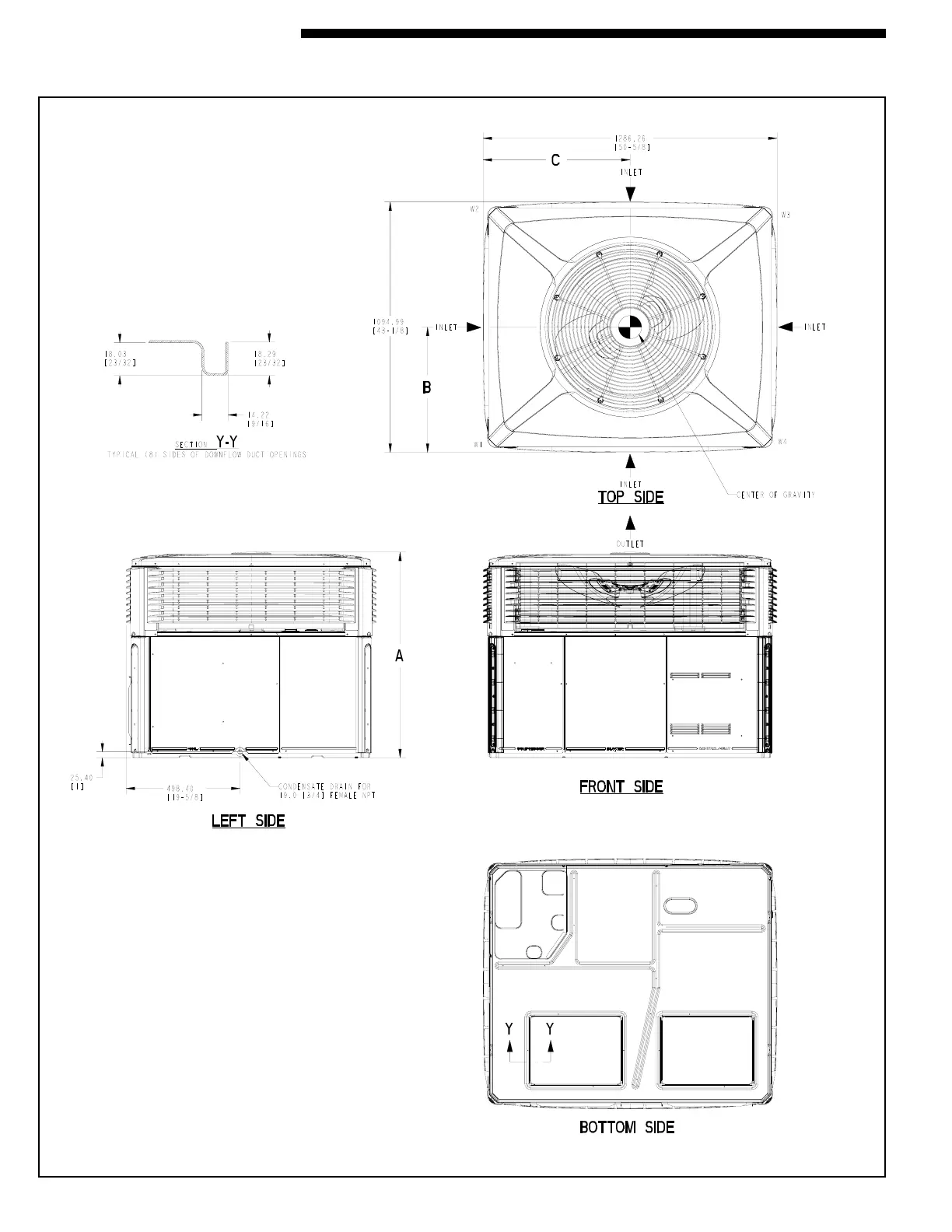

Figures 1 through 6 show the unit critical dimensions.
Figure 1. 4WCZ6036A (1 of 3)
NOTE: The view
labeled “Bottom
Side” represents
the Base as viewed
looking up from
underneath the unit.
