Page 7
Installer’s Guide

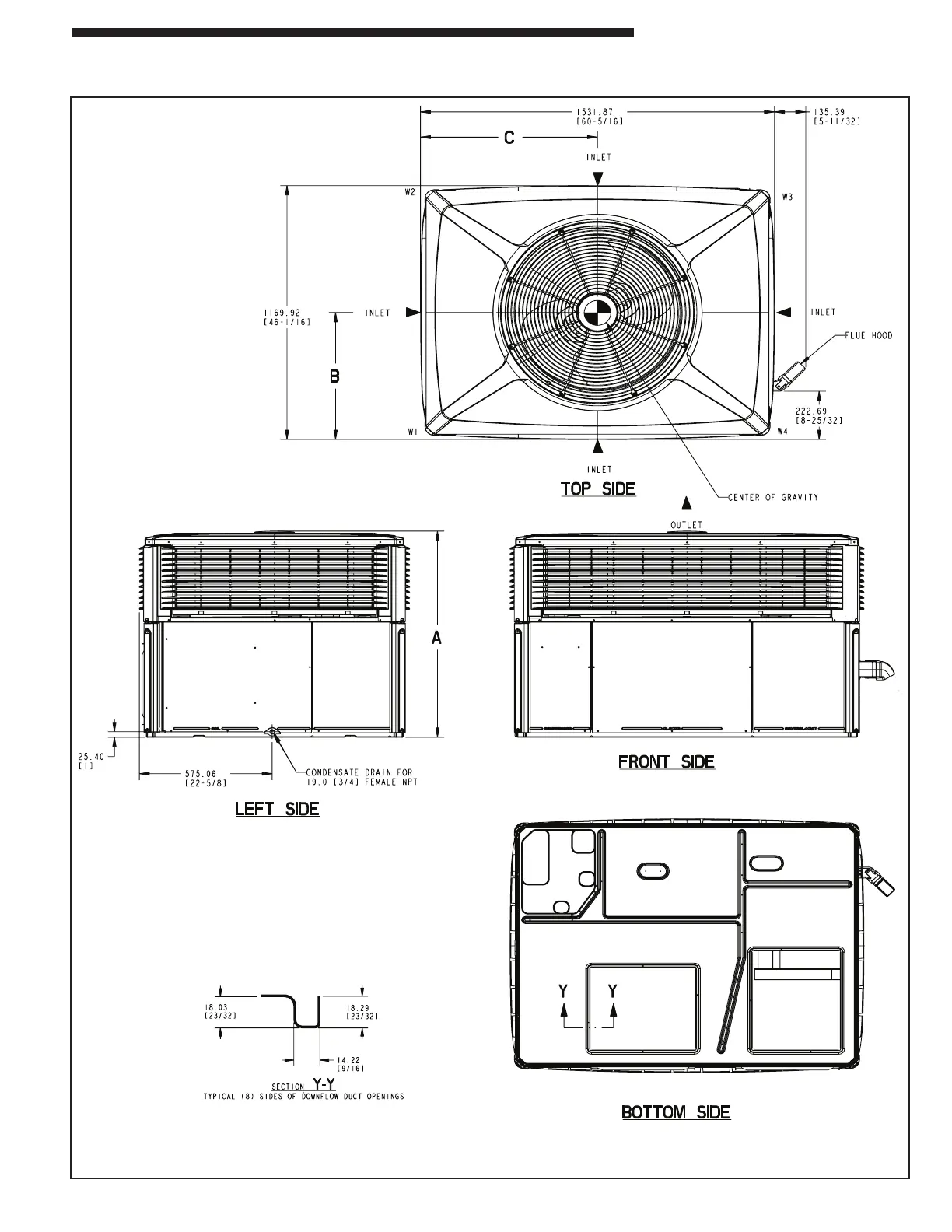

Figure 4. 4YCZ6048A through 4YCZ6060A (1 of 3)
NOTE: The view labeled “Bottom
Side” represents the Base
as viewed looking up from
underneath the unit.
