Trane 5TTA4036A3 - Page 6

6 18-AC132D1-1A-EN

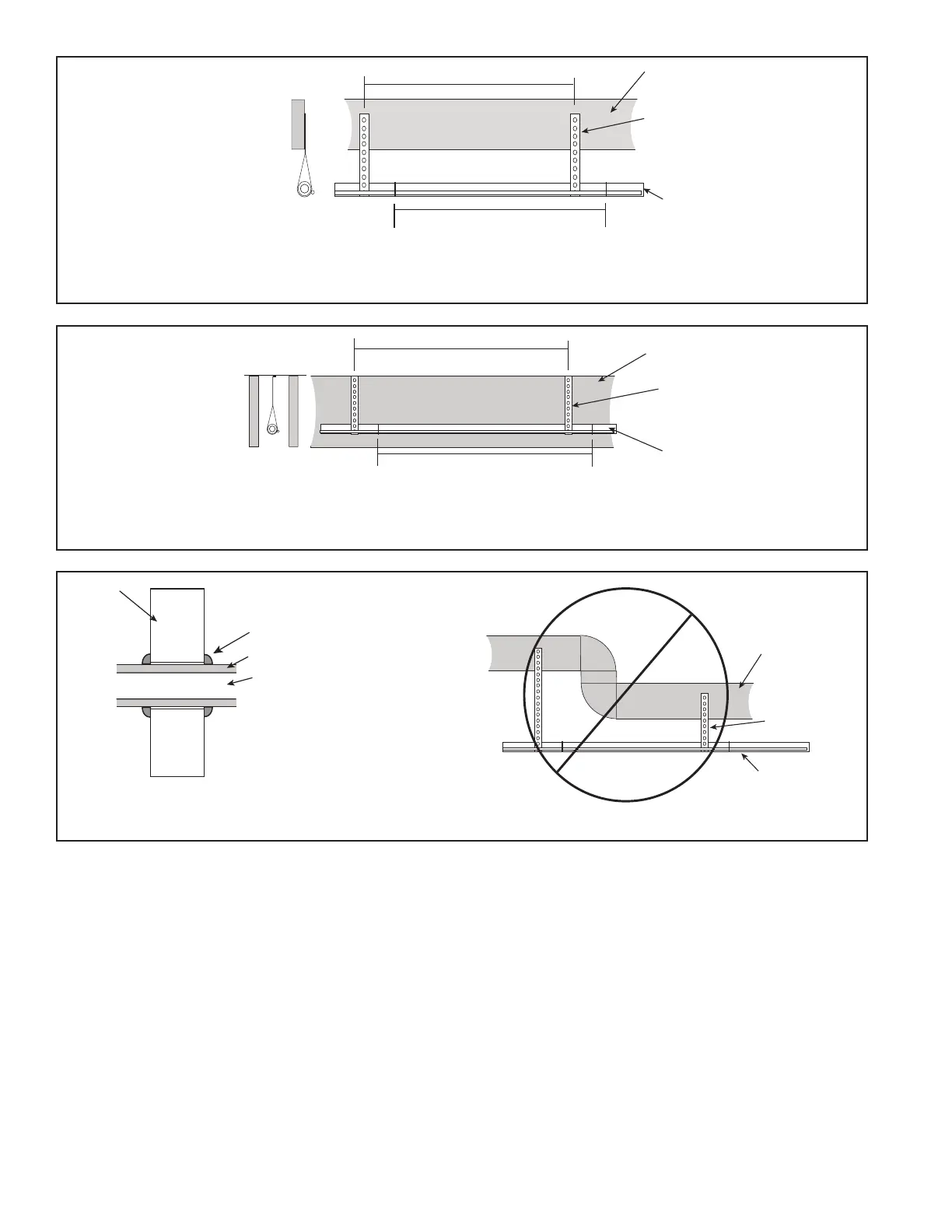

Isolation From Joist/Rafter
Secure Vapor line from joists using isolators every 8 ft. Secure
Liquid Line directly to Vapor line using tape, wire, or other appro-
priate method every 8 ft.
8 Feet Maximum
Side View
8 Feet Maximum
Joist/Rafter
Isolator
Line Set
Side View
Isolator
Line Set
8 Feet Maximum
Wall
8 Feet Maximum
Isolation In Wall Spaces
Secure Vapor Line using isolators every 8 ft. Secure Liquid Line
directly to Vapor Line using tape, wire, or other appropriate
method every 8 ft.
Wall
Sealant
Insulation
Vapor Lin
e
Isolation Through Wall
DO NOT hang line sets from ductwork
Duct Work
Isolator
Line Set
DO NOT hang line sets from duct work
