Trane 8B1A026M2PSAB - Furnace General Installation: Ducting (Continued); Duct Connections: Horizontal;Downflow (No Coil)

32
18-CE14D1-1A-EN

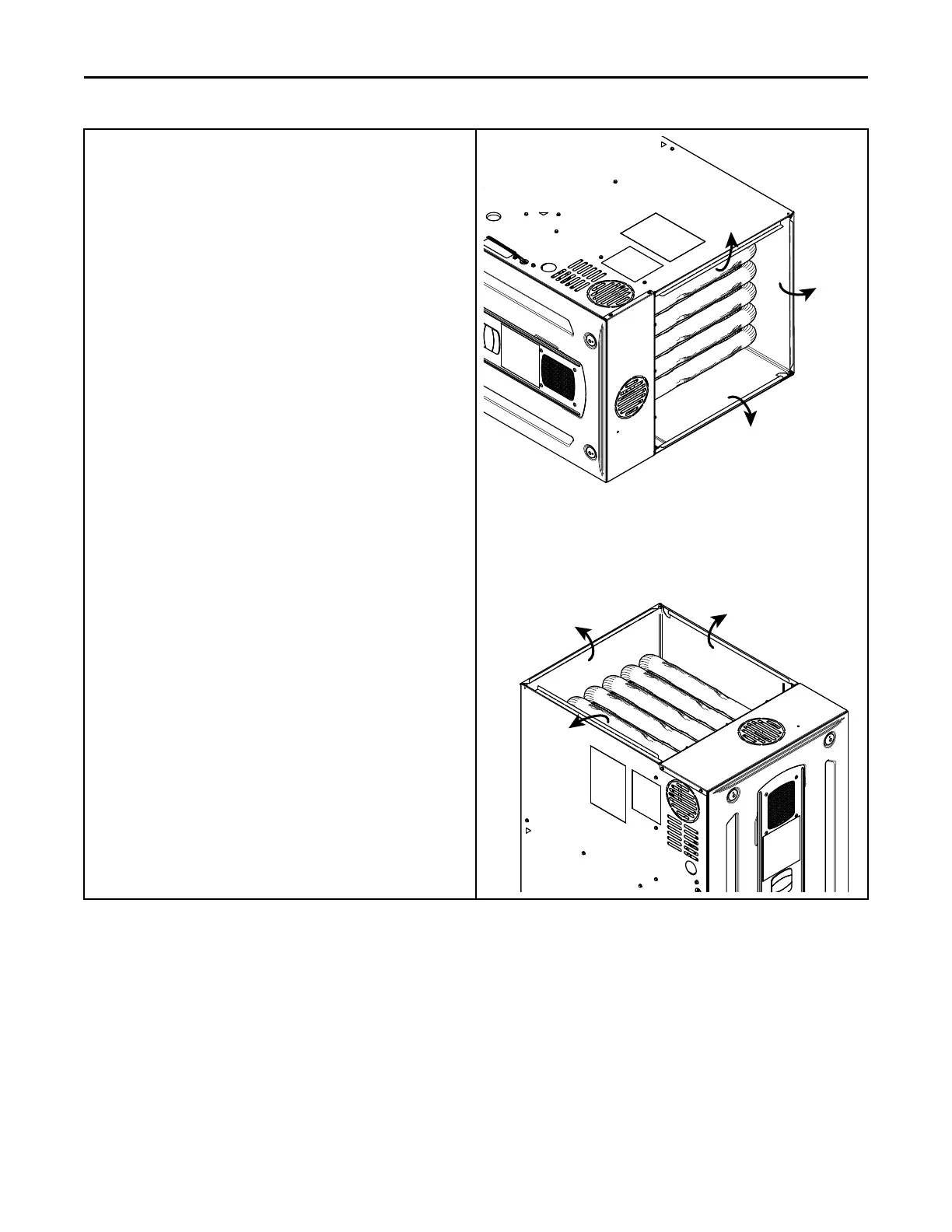

Horizontal Right and Downflow Furnace — no Coil
Important: A BAYBASE is required when installing the furnace on a
combustible floor.
1. Bend furnace flanges up.
2. Attach ducting.
3. Seal per local codes and requirements.
