RT-SVN041B-EN
7
Installation
BAYDMPR310*
1. Open the unit disconnect switch.
2. Remove screws securing the filter access door and outside air panel
to the unit. Do not throw out the screws; they will be used in Step 4.
3. Connect the provided wiring harness to the 12-pin plug in the R/A
section.
4. Secure the hood and damper panel to the unit outside air panel with 4
screws. (Remaining screws to be used in Step 2.)
5. Install the filter/mist eliminator into the fresh air hood using the
spring hinge to hold it in place, as illustrated in Figure 1, p. 7.
6. Close the unit disconnect switch.

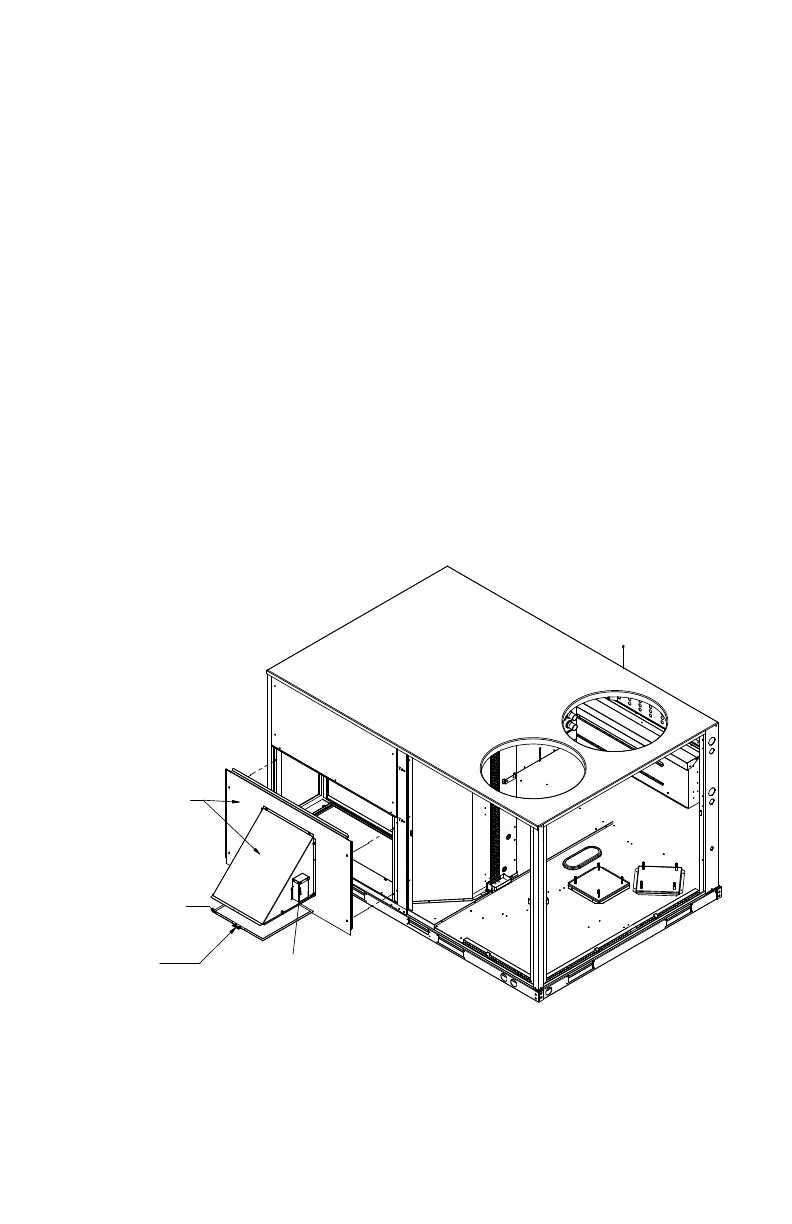

Figure 1. BAYDMPR310* damper assembly
Mist Eliminator
Hood and Panel
Ship Attached
Hinged Filter
Access
Motor Housing
With 2-Position Motor
NNoottee:: The filter/mist eliminator can be taken out for cleaning by bending the
spring hinge.
