1. Open the unit disconnect switch.
2. Remove screws securing the filter access door and outside air panel
to the unit. Do not throw out the screws; they will be used in Step 3.
3. Secure the hood and damper panel to the unit outside air panel with 4
screws. (Remaining screws used in Step 2.)
4. Adjust the damper blade to the desired position setting.
5. Install the filter/mist eliminator into the fresh air hood using the
spring hinge to hold it in place, as illustrated in Figure 2, p. 8.
6. Close the unit disconnect switch.

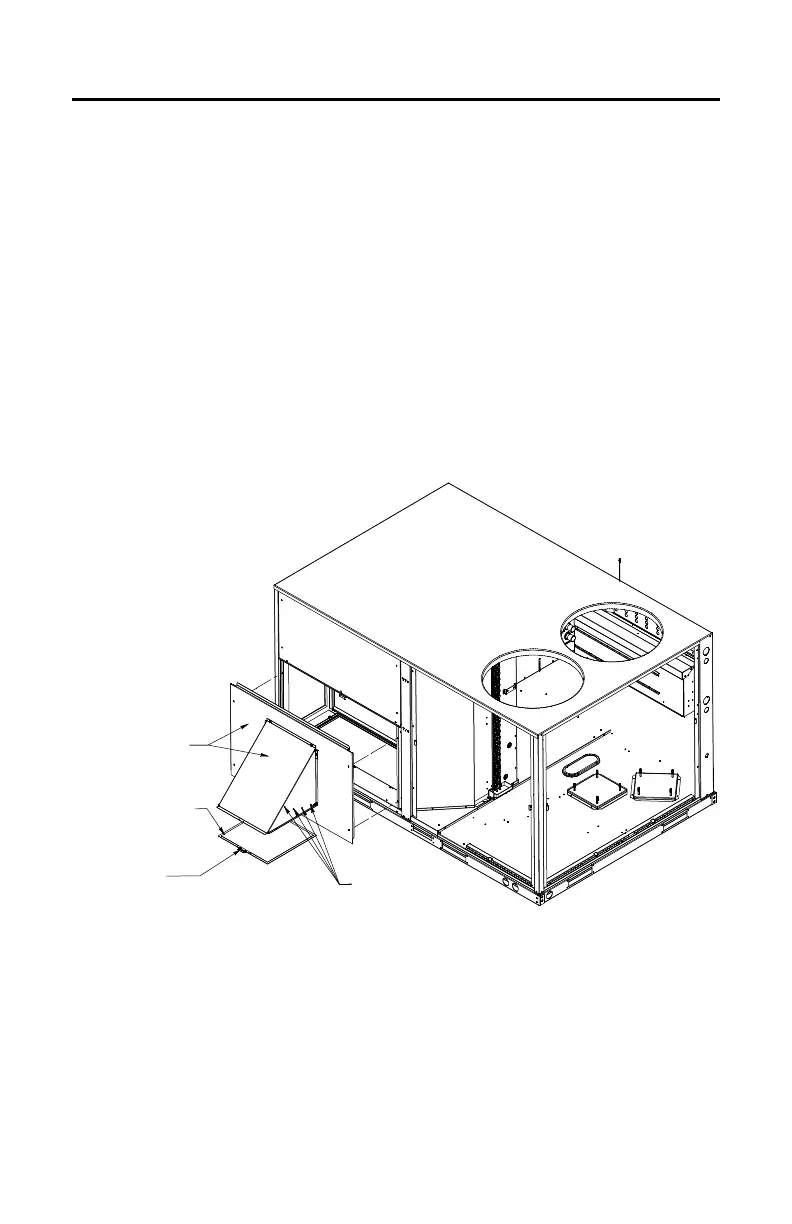

Figure 2. BAYDMPR311* damper assembly
Hood and Panel
Ship Attached
Mist Eliminator
Hinged Filter
Access
Manual Position
Settings
NNoottee:: The filter/mist eliminator can be taken out for cleaning by bending the
spring hinge.
IInnssttaallllaattiioonn
