Trane BAYRLAY006A - Start Economizer’s Front Mounting Screws; Mounting Rain Hood

5
INSTALLER’S GUIDE
Economizer outline
Install two (2)
screws into holes.
Leave extended
from unit 1/2”
Apply gasket between damper assembly and hood
Economizer and
Return Air Damper

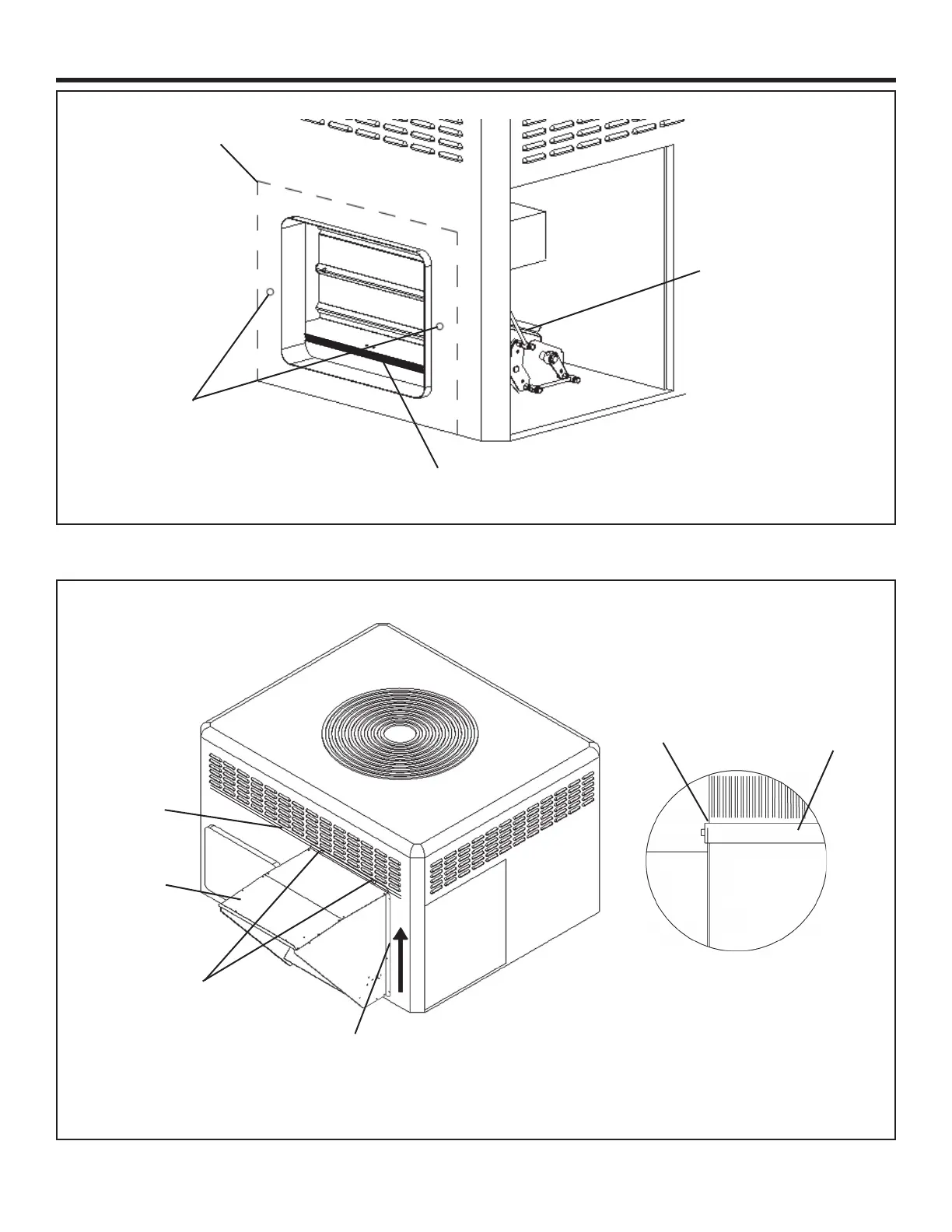

Figure 6. Start Economizer’s Front Mounting Screws
3. Tighten the two
(2) top screws and
the two (2) side
screws
2. Drive six (6) self
tapping screws into
the keyhole openings
on each side of hood
anges.
1. Loosen the two
(2) screws to allow
hood to slide under
top sealing ange of
the unit.
Economizer Rain
Hood
Unit’s top sealing
ange
Top ange of hood
slides under HVAC
unit’s top sealing
ange
HVAC unit’s top
sealing ange
HVAC unit
Hood
Detail
Figure 7. Mounting Rain Hood
