2 Numbers in [brackets] are for 50 Hz international systems. 32-5038-06
User’s Information

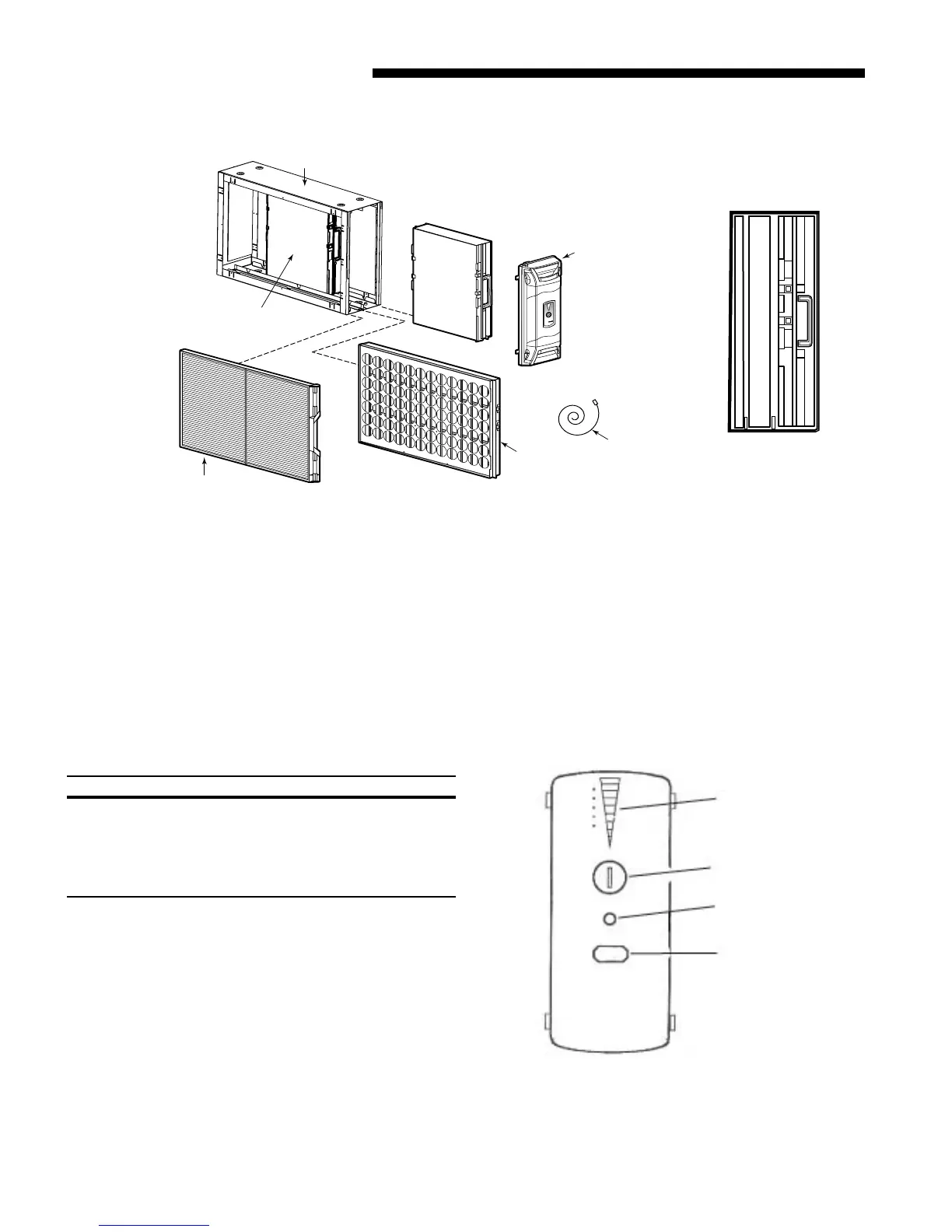

Figure 1. COMPONENTS OF THE TRANE CLEANEFFECTS
TM
1) PRE-FILTER - Traps large particles such as hair and lint
before they can enter the COLLECTION CELL section.
2) FIELD CHARGER - Charges the contaminants. Only to
be removed, cleaned or serviced by a qualified
technician.
3) COLLECTION CELL (2) - Removes and collects very
small impurities from the air.
4) CABINET - Mounts between the furnace or air handler
and return air duct work and houses the COLLECTION
CELLS, FIELD CHARGER and PRE-FILTER.
3
2
4
5
1
3
6
5) POWER DOOR - The solid state power supply compo-
nents that convert the 24 Volt AC to the high-voltage,
direct current required to power the FIELD CHARGER
and COLLECTION CELLS. Allows access to the COL-
LECTION CELLS, FIELD CHARGER and PRE-FILTER.
6) 24 VOLT POWER CABLE
DISPLAY FEATURES
The air cleaner display (Fig. 2) has the following
functions:
LED and PRE-FILTER lights display the operating status
of the air cleaner, indicating when to clean the PRE-
FILTER or COLLECTION CELLS.
The LED display is also used in the SET-UP mode, see
page 7.
1 2 3
LED's
POWER
PRE-FILTER
RESET
PRE-FILTER
RESET
CLEAN
DIRTY
Fig. 1
Fig. 2
NOTE: International (50 Hz) Timings:
Due to differences in electrical systems outside the
United States, customers with 50 Hz electrical
systems will need to be aware of minor differences
in the timings shown in this guide. 50 Hz timings
will appear in [brackets] following the standard 60 hz
timings.

Trane CleanEffects Specifications

General

Model	CleanEffects
Category	Air Cleaner
Filter Type	Electronic Air Cleaner
Warranty	10-year limited warranty
Power Source	120V AC
Efficiency	Up to 99.98%
MERV Rating	MERV 16
Airflow	Up to 1200 CFM
Compatibility	Compatible with HVAC systems
Dimensions	Varies by model
