8 Numbers in [brackets] are for 50 Hz international systems. 32-5038-06
User’s Information
CHANGING THE SETTINGS
While in the SET-UP mode, press the POWER button
once to begin cycling through the various setting
options in the following order:
PRE-FILTER Cleaning Interval
Setting (Figure 20)
One or more of the GREEN LED lights will illuminate.
To change the reminder interval time, press the RESET
button until the desired setting is indicated, and then
press the POWER button again. Choices are in months
of "run time", not a calendar month.
COLLECTION CELLS Cleaning
Interval Setting (Figure 21)
One or more of the YELLOW LED lights will illuminate.
To change the reminder interval time, press the RESET
button until the desired setting is indicated, and then
press the POWER button again.
FIELD CHARGER Power Level
Setting (Figure 22)
One or more of the RED LED lights will illuminate. To
change the power level setting, press the RESET button
until the desired setting is indicated.
To save your new settings and exit the SET-UP mode,
press and hold BOTH the Power and filter RESET
buttons for a minimum of 5 [6] seconds.
G1
G2
G3
Y1
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
G1
G2
G3
Y1
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
G1
G2
G3
Y1
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
One Month
[5 Weeks]
Two Months*
[10 Weeks]
Three Months
[15 Weeks]

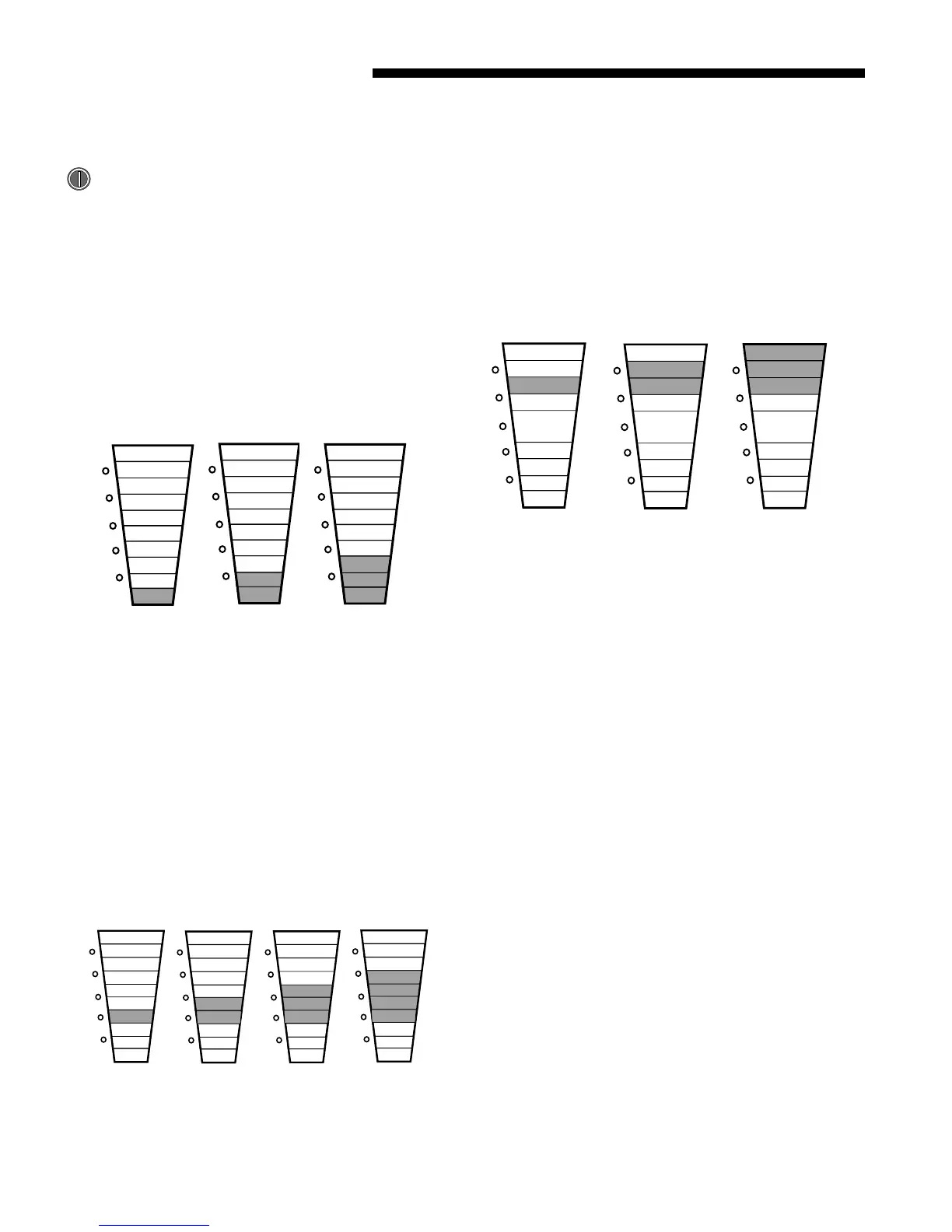

Fig. 20
G1
G2
G3
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
G1
G2
G3
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
Y1
G1
G2
G3
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
Y1
Y1
G1
G2
G3
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
Y1
Two Months
[10 Weeks]
Four Months
[20 Weeks]
Six Months*
[31 Weeks]
Nine Months
[46 Weeks]
Fig. 21
G1
G2
G3
Y1
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
G1
G2
G3
Y1
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
G1
G2
G3
Y1
Y3
Y4
R1
R2
R3
Y2
CLEAN
DIRTY
Minimum Medium Maximum*
Fig. 22
* Factory settings
