User’s Information
The air cleaner is factory set to notify the home owner to
clean the PRE-FILTER every two months [10 weeks] of
actual run time of the air cleaner. This notification can
be changed by the installer/home owner to 1 month or 3
months [5 to 15 weeks] depending on the conditions in
the home (pets, smokers, etc.). Please see “SET-UP
MODE” (Page 7) to change the factory settings.
1. Using a vacuum hose, vacuum in even strokes
across the length of the PRE-FILTER. After
vacuuming the entire PRE-FILTER using even
strokes going in one direction, repeat the
process using even strokes going in the
opposite direction as shown in Figure 7.
NOTE: Do NOT replace the plastic PRE-FILTER with
a metal type PRE-FILTER. A metal PRE-FILTER will
cause reduction in efficiency and potential failure of
the electronics in the air cleaner.
COLLECTION CELLS
The clean/dirty LED light bar indicator will illuminate as
the system cleans the air. The LED lights will progress
from green to yellow and then to red. When the last red
indicator is flashing, it is time to clean the COLLECTION
CELLS (see Figure 6). The air cleaner is factory set to
notify the home owner to clean the COLLECTION
CELLS every six months [31 weeks] of actual run time
of the air cleaner. This notification can be changed by
the installer/home owner to 2 months, 4 months, 6
months, or 9 months [10, 20, 31 or 46 weeks] depending
on the conditions in the home (pets, smokers, etc.).
Please see “SET-UP MODE” (Page 7) to change the
factory settings.

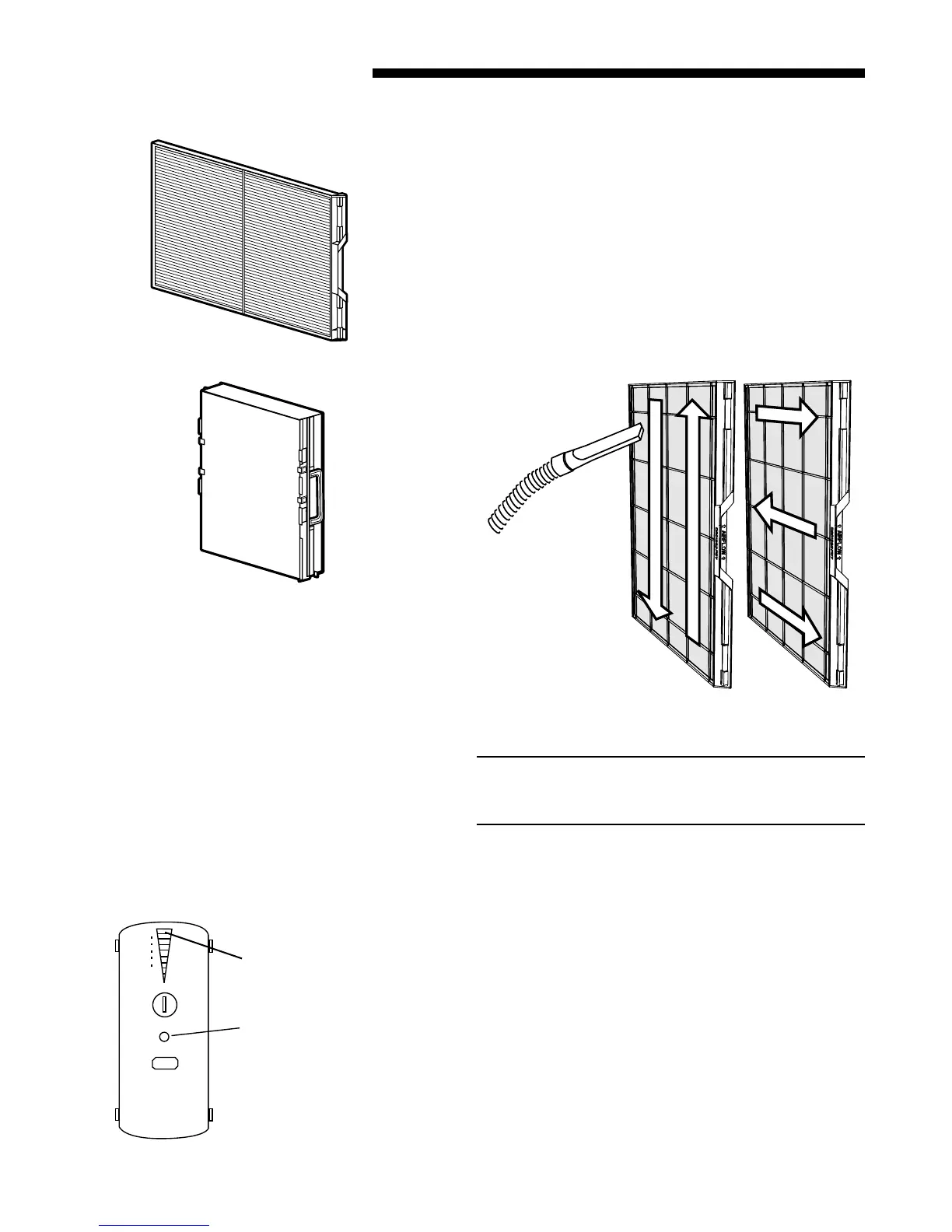

Fig. 7
Fig. 4
Fig. 5
VACUUM CLEANING
Vacuuming is the preferred method to clean the PRE-
FILTER and COLLECTION CELLS. It is recommended
that the PRE-FILTER and the COLLECTION CELLS be
vacuumed outside the home to ensure particles on the
filters are not re-introduced into the air. Persons highly
sensitive to the collected particles should wear
appropriate respiratory protection while cleaning.
PRE-FILTER –
It is time to clean the PRE-FILTER when the red “PRE-
FILTER” light (shown in Figure 6) is illuminated.
Fig. 6
PRE-FILTER
RESET
CLEAN
Flashing red light indicates
that it is time to clean the
COLLECTION CELLS
Red light indicates that it is
time to clean the PRE-FILTER
5. Remove the PRE-FILTER (Figure 4) and/or the
COLLECTION CELLS (Figure 5) from the air cleaner.

Trane CleanEffects Specifications

General

Model	CleanEffects
Category	Air Cleaner
Filter Type	Electronic Air Cleaner
Warranty	10-year limited warranty
Power Source	120V AC
Efficiency	Up to 99.98%
MERV Rating	MERV 16
Airflow	Up to 1200 CFM
Compatibility	Compatible with HVAC systems
Dimensions	Varies by model
