Installation: Mechanical

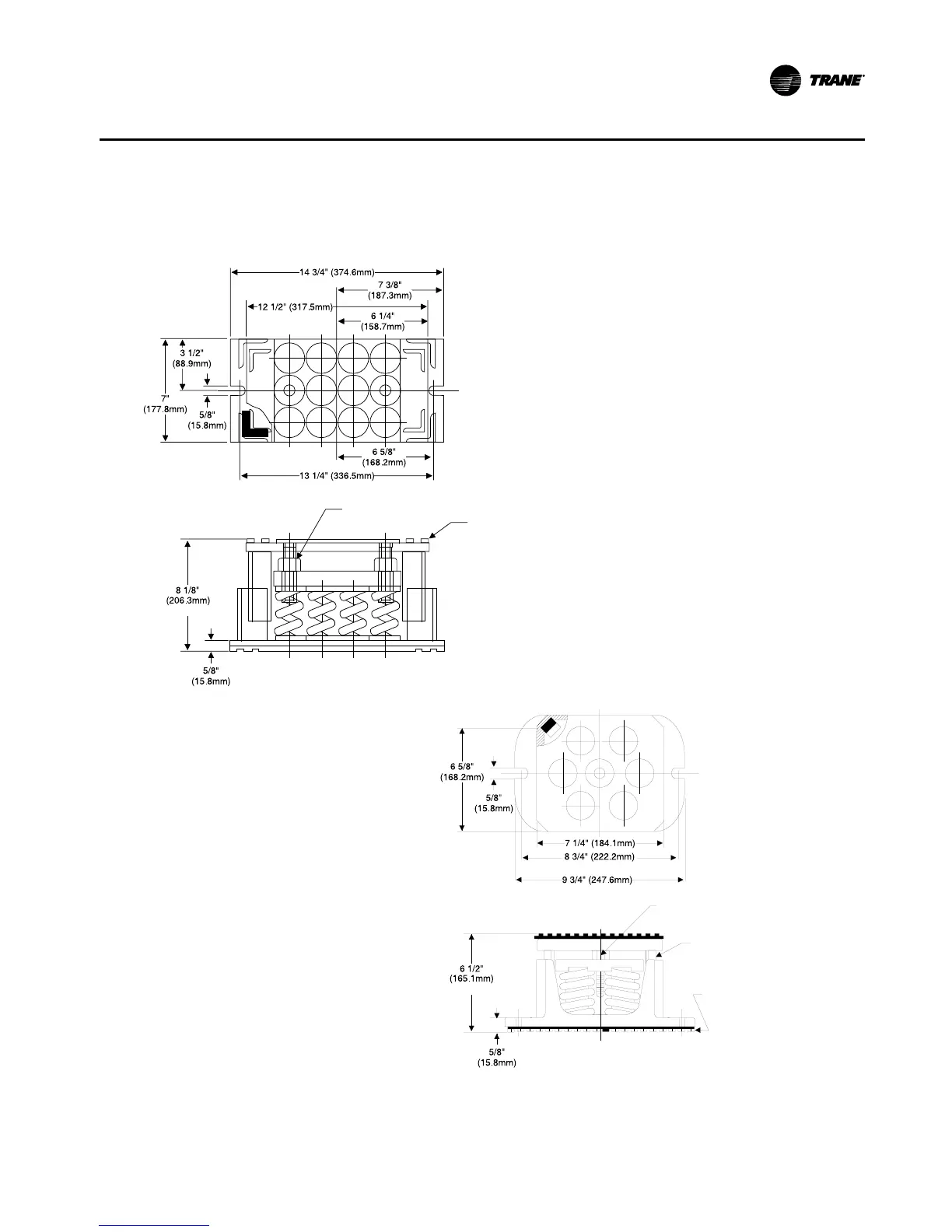

Figure 17. Typical spring isolator construction
CT-12 Spring Isolators
Free Height
1/4"
(6.3mm)
Acoustical
nonskid
neoprene
pad (top
and
bottom)
(2) 1-B UNC Adjusting
and Leveling Bolts
CT-7 Spring Isolators
C-C Foundation Bolts
Free Height
Adjust isolator so that the upper
housing clears the lower housing by at
least 1/4
" (6.3mm) and not more than 1/2"
(12.7mm)
1/4" (6.3mm) Acoustical nonskid
neoprene pad (top and bottom)
3/4" (19.0mm)
10 UNC Adjusting and leveling bolt
