Installation: Electrical

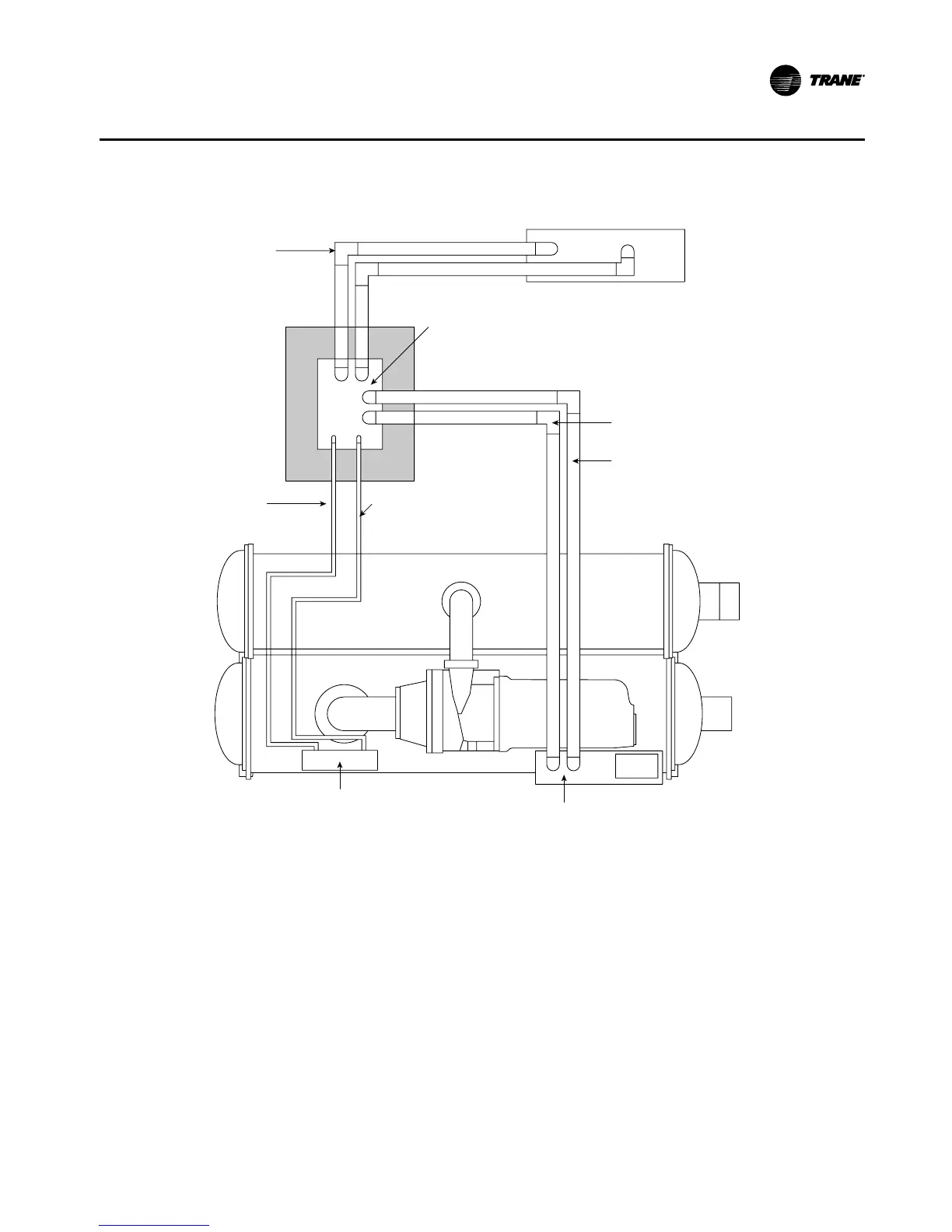

Figure 29. Typical equipment room layout with remote-mounted Wye-Delta starter
Notes:
1. Refer to the unit field connection diagram for approximate UCP knockout locations.
2. 115-volt conduit must enter the higher than 30 Vdc Class I portion of the unit control
panel.
3. IPC circuit conduit must enter the Low Voltage Class II portion of the UCP.
4. See starter submittal drawing for location of incoming wiring to the starter.
Line side
power
wiring
Remote-mounted starter
Load power
wiring
115 Volt control
conduit
See Note 2
