GBAS (Generic Building Automation System)
Percent RLA Output
2 to 10 Vdc corresponding to 0 to 120% RLA. With a resolution of 0.146%. The Percent
RLA Output is polarity sensitive.

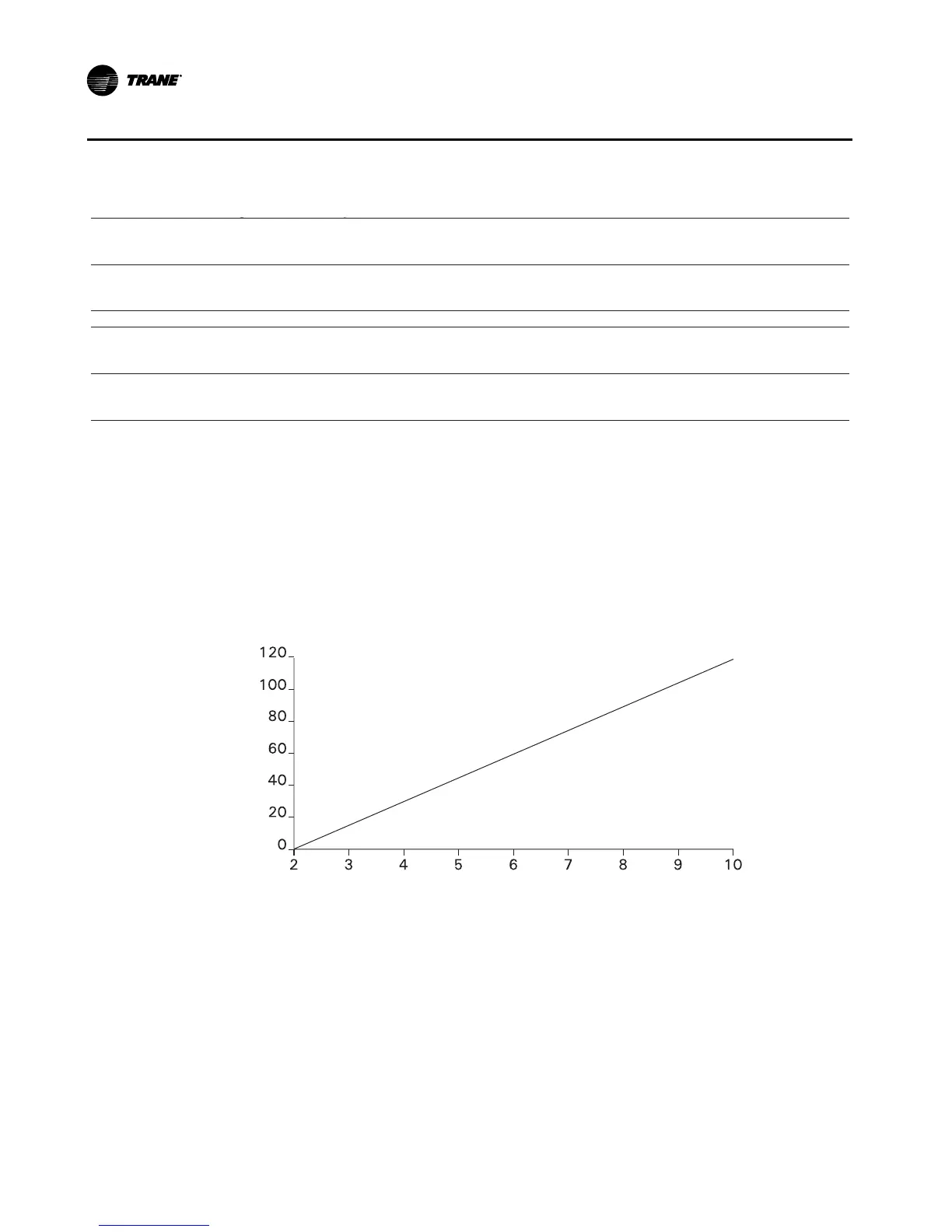

The following graph illustrates the output:
GBAS (Generic Building Automation System)
GBAS Signal #1 Percent RLA Compressor Output J2-1 Output #1, J2-3 Ground
GBAS Signal #2 J2-4 Input #2, J2-6 Ground
GBAS Signal #1 J2-2 Input #1, J2-3 Ground
GBAS Signal #2 External Current limit Setpoint J2-5 Input #2, J2-6 Ground
1A15 Optional Dual
Analog Input/output
Module
1A15 Optional Dual
Analog Input/output
Module
1A16 Optional Dual
Analog Input/output
Module
1A16 Optional Dual
Analog Input/output
Module
Condenser Rerigerant Pressure
or Evaporator/Condenser
differential
Chilled Water Reset input, or
External Chiller Water Setpoint
Voltage versus Percent RLA
Voltage
Percent RLA
Figure 36. Voltage versus percent RLA
