AFDH-SVN01A-EN 45

Installation

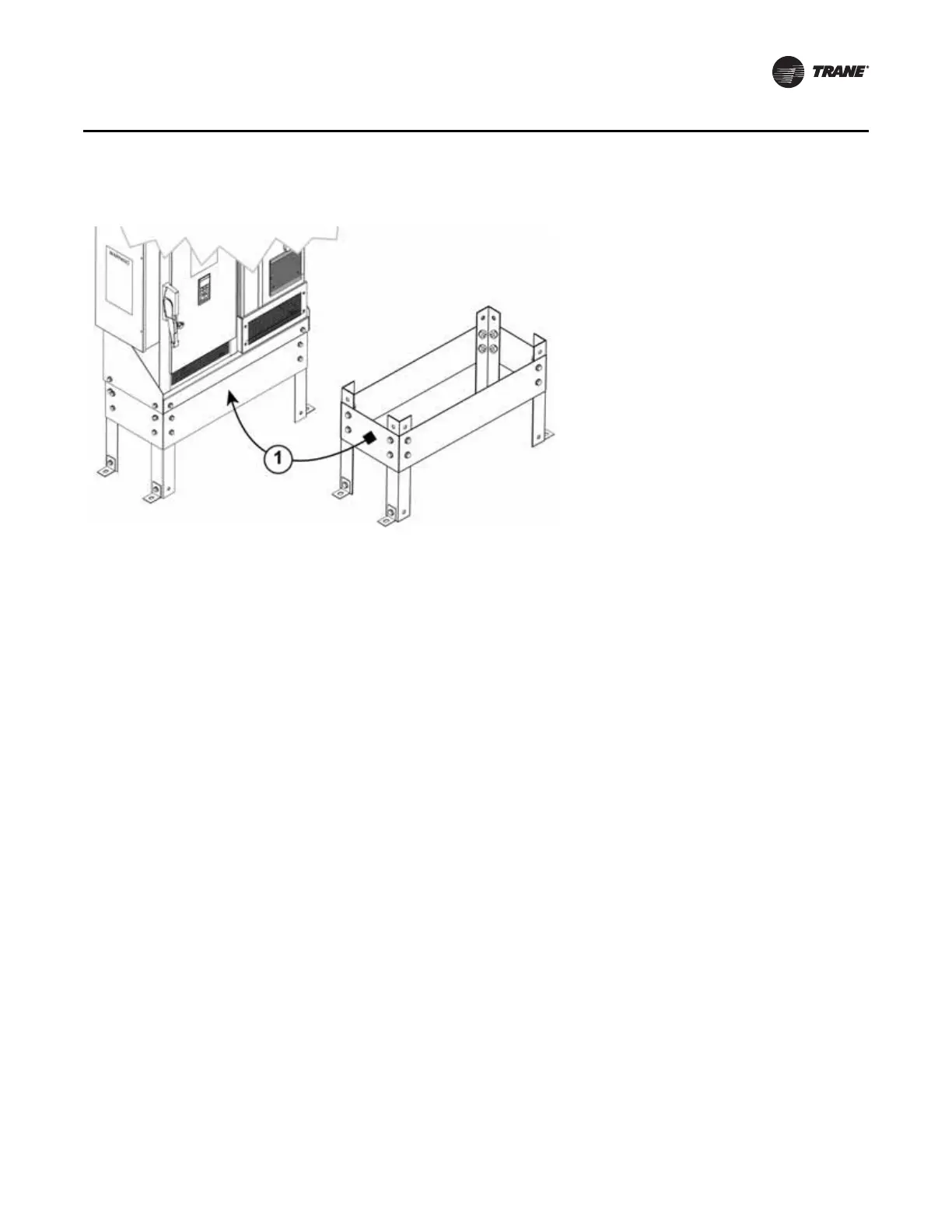

Figure 23. Attach assembled floor stand to drive unit.

1. Attach assembled floor stand to the base

of the drive unit with the remaining

hardware from the stand kit
