Installation

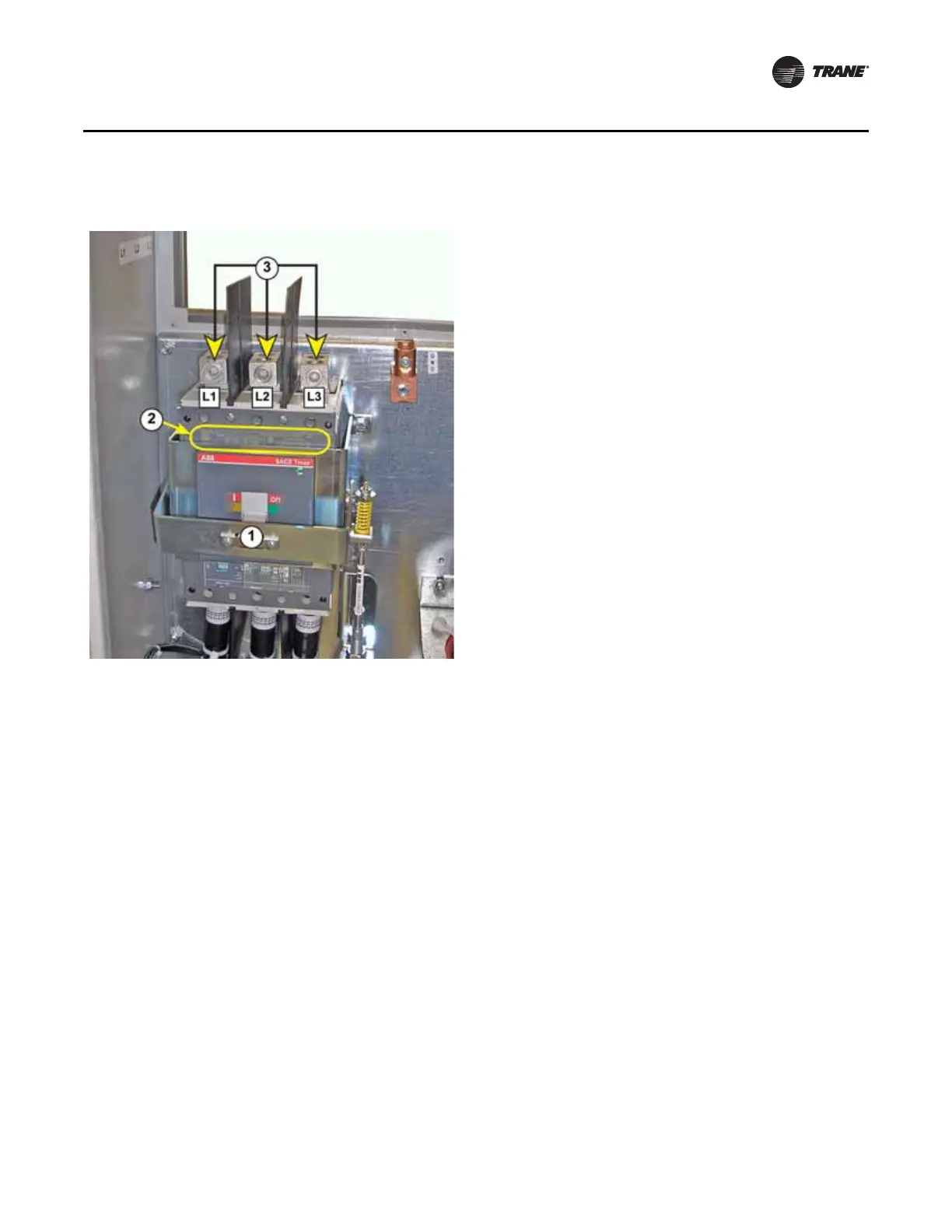

Figure 27. Factory installed input disconnect circuit breaker
1. Input disconnect circuit breaker
2. Nameplate - location of breaker interrupting rating of
65,000 amps at 480 VAC
3. Input power terminals. Terminal connections should be
torqued to 23 foot-pounds
