4. Position isolator pads or spring isolators beneath
the chiller feet (refer to “Unit Isolation,” p. 24 for
instructions).
NNoottee:: Follow instructions provided by the spring
isolator manufacturer, being careful to not
damage isolator adjustment bolt.
5. Once the isolators are in place, lower the chiller—
working from end to end—in small increments to
maintain stability.
6. When lift is complete, detach the clevis connections
and safety chain.

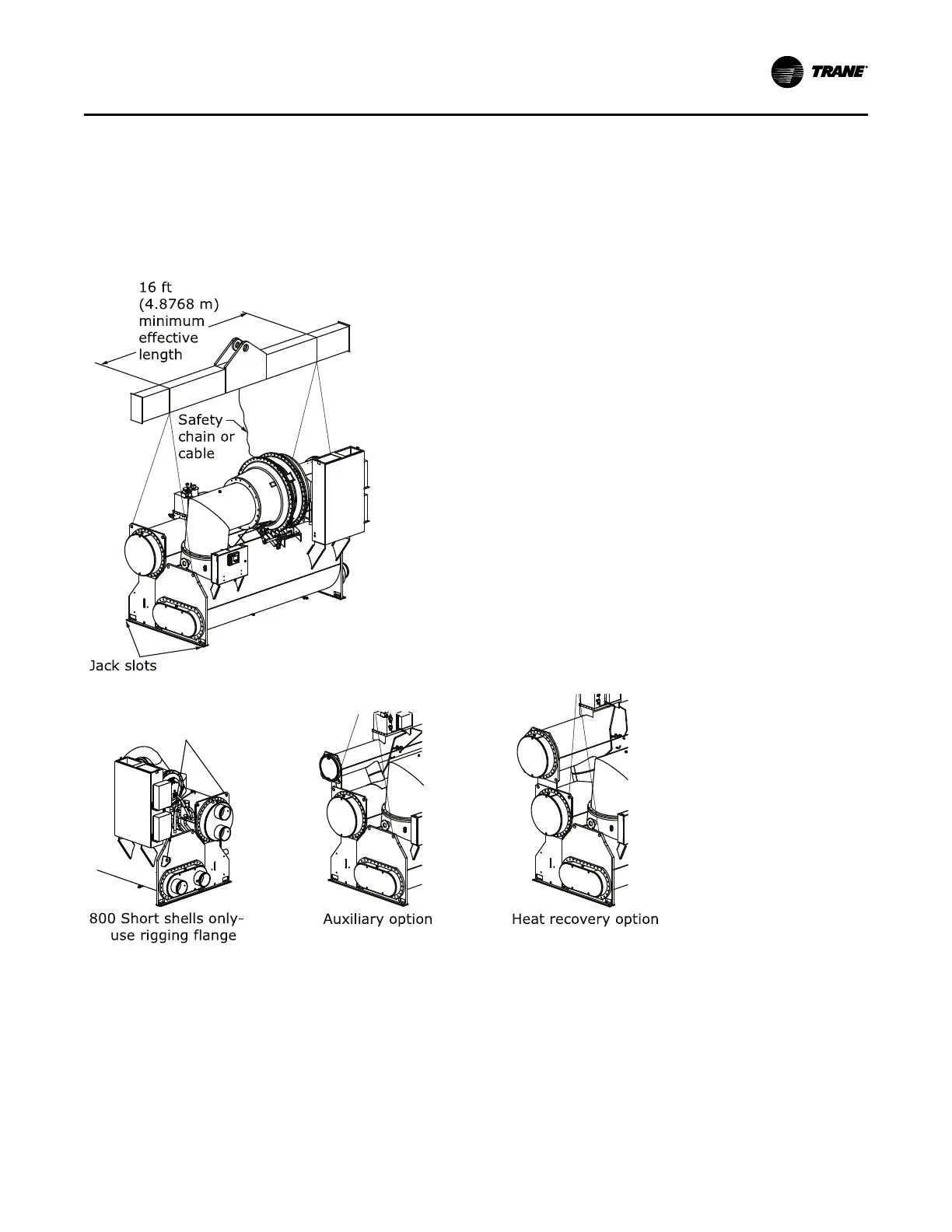

Figure 5. Typical rigging arrangements for CVHE, CVHF, and CVHG CenTraVac™™ chillers
IInnssttaallllaattiioonn:: MMeecchhaanniiccaall
