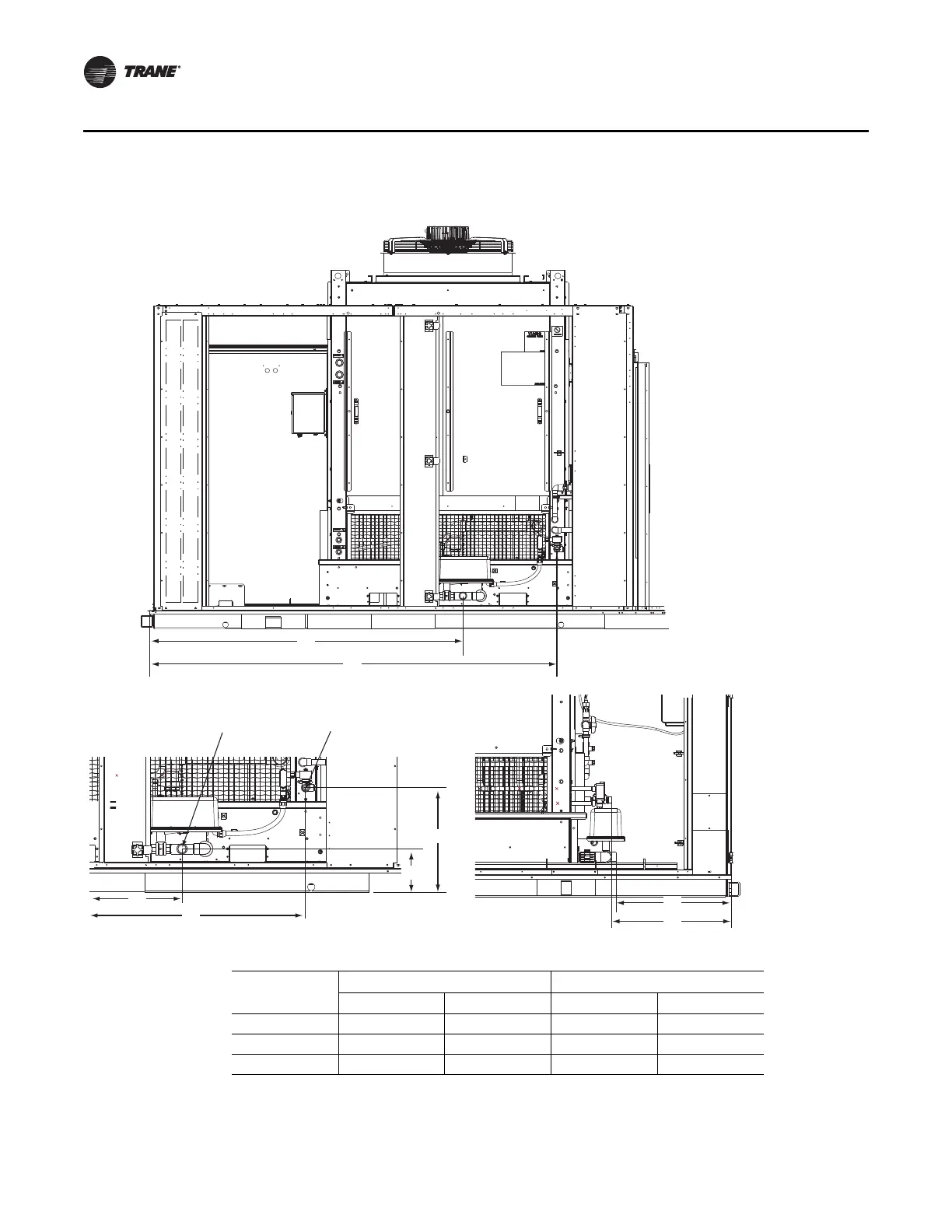

Figure 11. Evaporative condenser water connection locations
A
B
8.16
19.84
Drain Connection
1 1/4” PVC, Female
Water Supply Connection
3/4” PVC, Female
D
C
A
B
Tons
(EC)
Drain Connection Inlet Water Connection
ABCD
24, 29 & 36 Ton 60.03 79.31 12.01 12.94
48 & 59 Ton 82.86 102.14 12.01 12.94
73, 80 & 89 Ton 78.56 102.14 23.71 24.64
