RT-SVX36G-EN 67
Installation
An overall layout of the field required power wiring is illustrated in Figure 34. To ensure the unit's
supply power wiring is properly sized and installed, follow the guidelines outlined below.
Note: All field installed wiring must conform to NEC guidelines as well as State and Local codes.
Verify that the power supply available is compatible with the unit's nameplate rating for all
components. The available power supply must be within 10% of the rated voltage stamped on the
nameplate. Use only copper conductors to connect the 3-phase power supply to the unit.

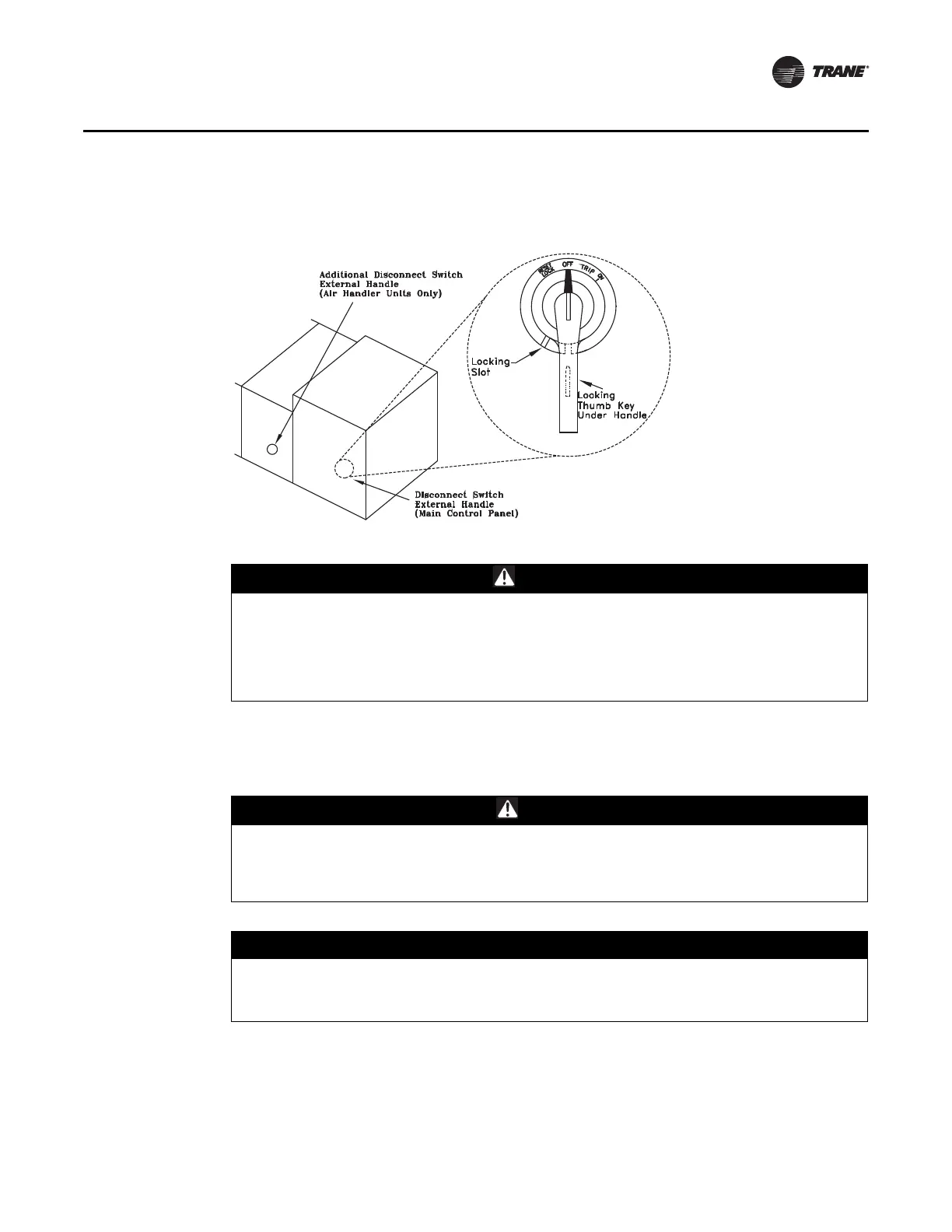

Figure 33. Disconnect Switch Handle Positions
WARNING
Live Electrical Components!
During installation, testing, servicing and troubleshooting of this product, it may be necessary
to work with live electrical components. Have a qualified licensed electrician or other
individual who has been properly trained in handling live electrical components perform these
tasks. Failure to follow all electrical safety precautions when exposed to live electrical
components could result in death or serious injury.
CAUTION
Hot Surface!
Surface temperatures may exceed 300°F (150°C) on condensing unit and carbon tank. To avoid
possible skin burns, stay clear of these surfaces. If servicing is required allow surfaces to cool
or wear protective gear. Failure to do so could result in minor to moderate injury.
NOTICE:
Use Copper Conductors Only!
Unit terminals are not designed to accept other types of conductors. Failure to use copper
conductors could result in equipment damage.
