RT-SVX36G-EN 41
Installation

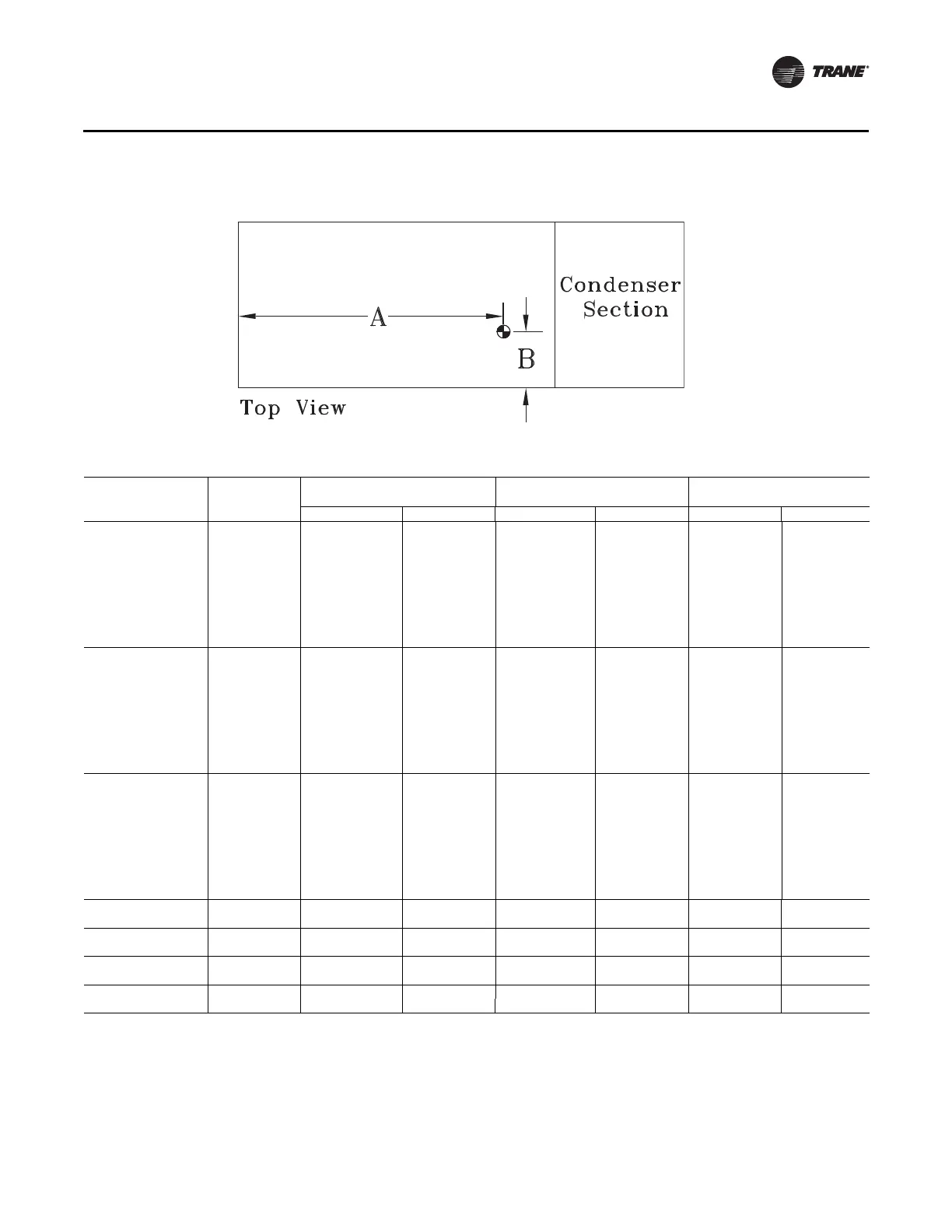

Figure 13. Center of gravity data
Table 11. Center of gravity data
Unit Model Unit Size
Units without 100%
Exhaust/Return Fan
Units with
Exhaust/Return Fan
Units with Supply &
Exhaust/Return VFD
Dim. A Dim. B Dim. A Dim B. Dim. A Dim. B
SAHL
20 13’ 6” 4’ 10” 13’ 10” 4’ 9” 12’ 4” 4’ 10”
25 14’ 6” 4’ 10” 13’ 11” 4’ 9” 12’ 4” 4’ 10”
30 13’ 11” 4’ 10” 12’ 1” 4’ 9” 12’-8” 4’ 10”
40 17’ 4” 4’ 0” 16’ 2” 4’ 11” 16’ 7” 4’ 11”
50 18’ 6” 4’ 0” 16’ 4” 4’ 11” 16’ 9” 4’ 11”
55 18’ 6” 4’ 0” 16’ 5” 4’ 11” 16’ 9” 4’ 11”
60 17’ 0” 5’ 10” 16’ 9” 5’ 8” 15’ 2” 5’ 9”
70 17’ 0” 5’ 10” 16’ 10” 5’ 8” 15’ 3” 5’ 9”
75 18’ 6” 5’ 10” 16’ 4” 5’ 8” 16’ 9” 5’ 9”
SEHL, SLHL,
SSHL, SXHL
20 15’ 8” 4’ 9” 14’ 0” 4’ 8 13’ 5” 4’ 9”
25 15’ 8” 4’ 9” 14’ 0” 4’ 8 13’ 6” 4’ 9”
30 14’ 1” 4’ 9” 13’ 3” 4’ 8 13’ 8” 4’ 9”
40 18’ 4” 4’ 11” 17’ 2” 4’ 10” 17’ 6” 4’ 10”
50 19’ 1” 4’ 0” 18’ 11” 4’ 11” 17’ 2” 4’ 11”
55 19’ 1” 4’ 0” 18’ 11” 4’ 11” 17’ 3” 4’ 0”
60 18’ 6” 5’ 9” 17’ 2” 5’ 7 17’ 6” 5’ 8”
70 18’ 3” 5’ 10” 17’ 11” 5’ 8” 16’ 4” 5’ 9”
75 19’ 2” 5’ 10” 18’ 10” 5’ 8” 17’ 2” 5’ 9”
SFHL
20 15’ 9” 4’ 10” 14’ 1” 4’ 9” 14’ 7” 4’ 10”
25 15’ 10” 4’ 9” 14’ 2” 4’ 8” 14’ 7” 4’ 9”
30 14’ 2” 4’ 9” 13’ 4” 4’ 8 13’ 10” 4’ 9”
40 19’ 6” 4’ 11” 17’ 4” 4’ 10” 17’ 9” 4’ 10”
50 19’ 1” 4’ 11” 18’ 0” 4’ 10” 17’ 4” 4’ 11”
55 19’ 2” 4’ 11” 18’ 0” 4’ 10” 17’ 4” 4’ 11”
60 19’ 7” 5’ 9” 17’ 4” 5’ 7 17’ 8” 5’ 9”
70 18' 3” 5’ 9” 17’ 0” 5’ 7 16’ 5” 5’ 8”
75 19’ 2” 5’ 9” 18’ 10” 5’ 7” 17’ 3” 5’ 9”
SXHK,SEHK,
SLHK,SSHK
90 18’ 9” 5’ 10” 20’ 4” 6’ 2” 17’ 9” 5’ 10”
105 19’ 1” 5’ 11” 20’ 7” 6’ 2 18’ 1” 6’ 0”
SFHK
90 18’ 11” 6’ 0” 20’ 6” 6’ 3” 17’ 10” 5’ 11”
105 19’ 3” 6’ 0” 20’ 9” 6’ 4 18’ 4” 6’ 7”
SXHK, SEHK,
SLHK, SSHK
115 19’ 2” 5’ 10” 20’ 8” 6’ 2 18’ 1” 6’ 0”
130 19’ 5” 5’ 10” 20’ 11” 6’ 2” 18’ 6” 6’ 0”
SFHK
115 19’ 4” 6’ 0” 20’ 9” 6’ 3 18’ 3" 6’ 1”
130 19’ 6” 6’ 0” 21’ 10” 6’ 3 18’ 8” 6’ 0”
Note: Dimensions shown for the center-of-gravity are approximate and are based on a unit equipped with: Standard coils, 100% economizer, throwaway
filters, 460 volt XL start, high capacity heat (as applicable).
