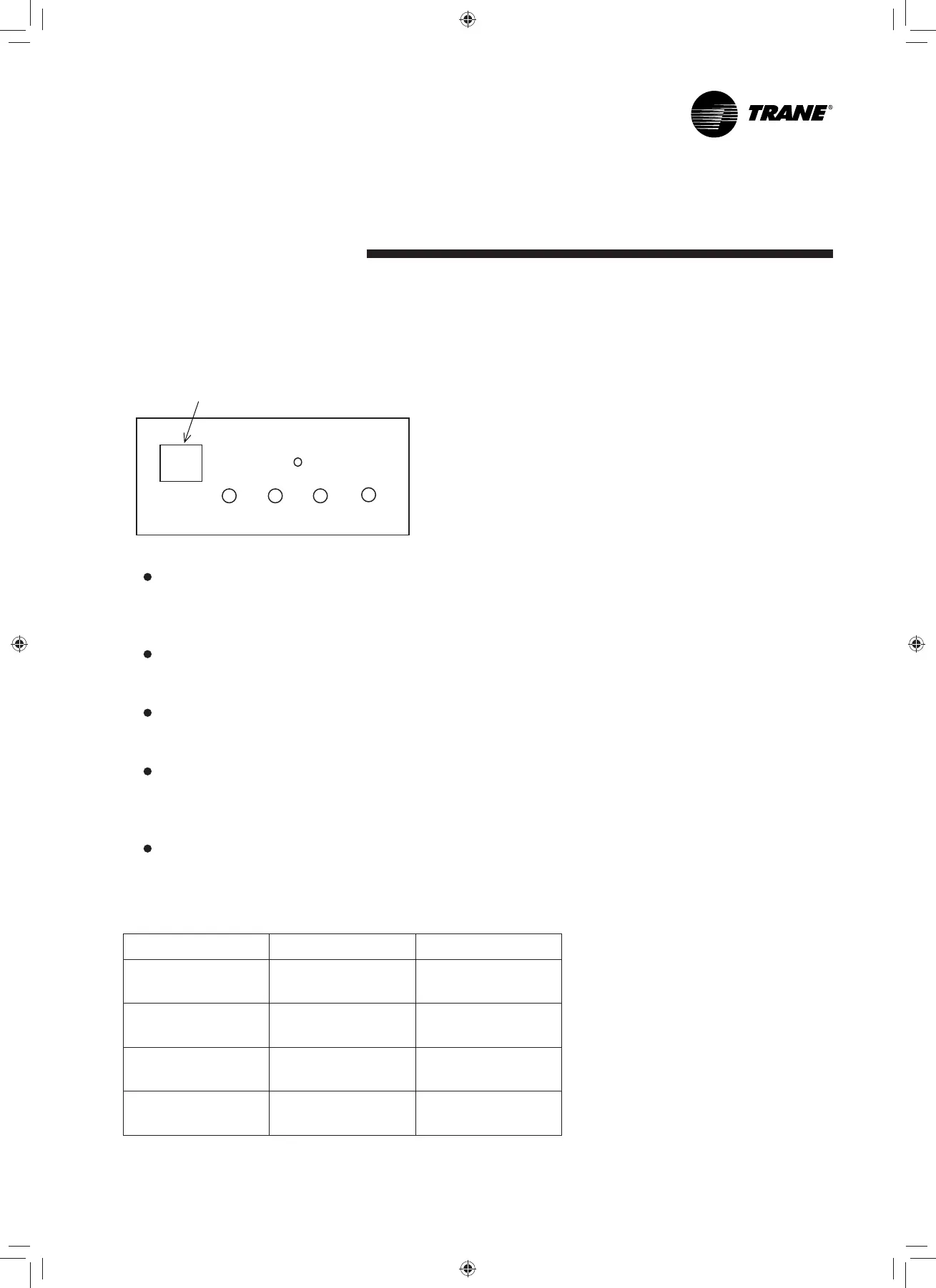

Trane MCC Series Owner's Manual

MCC-SVU01A 9
Control Operation
Display Unit
There are 4 indicator lamps on front panel of the
units
POWER LED
This indicator is on when there is power source
connected to the unit.
RUN LED
This indicator is on when unit is operating.
TIMER LED
This indicator is on when TIMER is set.
PROTECTION LED
This indicator is on when unit have problem and
cannot operate normally.
Emergency Key
Use this button to control On/Off unit in case that
remote control is out of order.
Self-Diagnostic Function
POWER RUN TIMER
PROTECTION
EMERGENCY
Receiver box : receive signal from remote control
Fault Indicator Alarm Note
Room Sensor broken
or short circuit
Run LED is fl ashing
2 times in 4 seconds
Protection LED is on
Freeze Sensor broken
or short circuit
Run LED is fl ashing
3 times in 5 seconds
Protection LED is on
Evaporator coil
freezing
Run LED is fl ashing
5 times in 7 seconds
Protection LED is on
Drain Pump failure Run LED is fl ashing
9 times in 11 seconds
Protection LED is on
MCC-SVU01A_En.indd 9MCC-SVU01A_En.indd 9 4/18/13 5:31:31 PM4/18/13 5:31:31 PM
