MCC-SVN01A 9

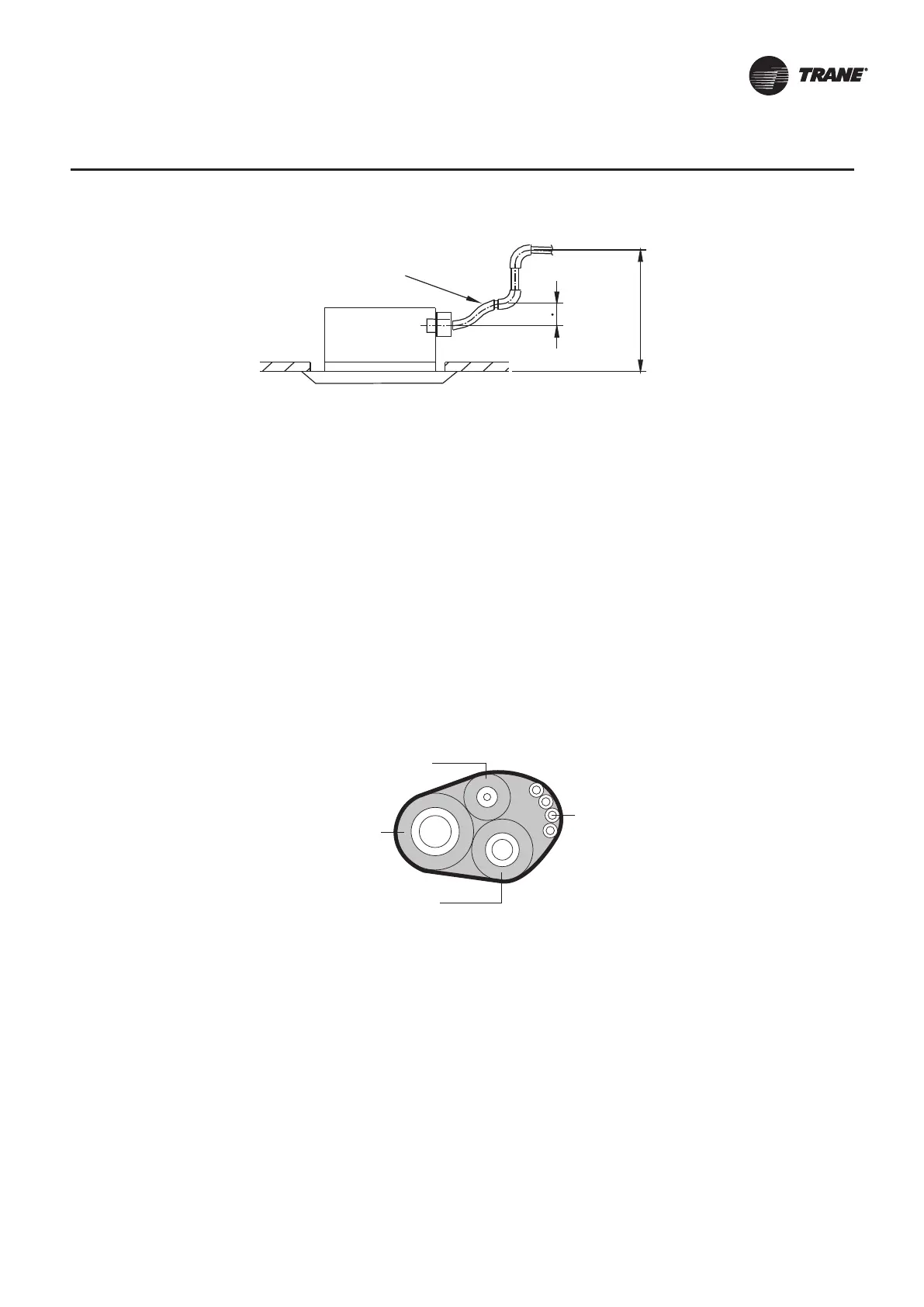

Drain Hose Installation
Figure 9
Figure 10
Drain hose (Accessory)
Liquid Pipe
Suction Pipe
Drain hose
Wire Harness
Below 75mm
Below 500mm
The slant gradient of the attached drain hose should be within 75mm so that the drain hole
dosen’t has to endure the unnecessary outside force.
Check the smoothness of drain after installation.
When the drain hose is placed in the room, insulate the hose with foam polyethylene to avoid
damage to the ceiling or furniture.
After completing installation of refrigerant lines, wiring and drain connections, bind the tubing,
wiring and drain hose (check if local codes permit binding) into a bundle by using tape at 100
or 200 mm (4” to 8”) intervals.Make sure the drain hose is at the bottom of the bundle
(Figure 10).
Check the drain in the state of refrigeranting after installation of the electric circuit.
